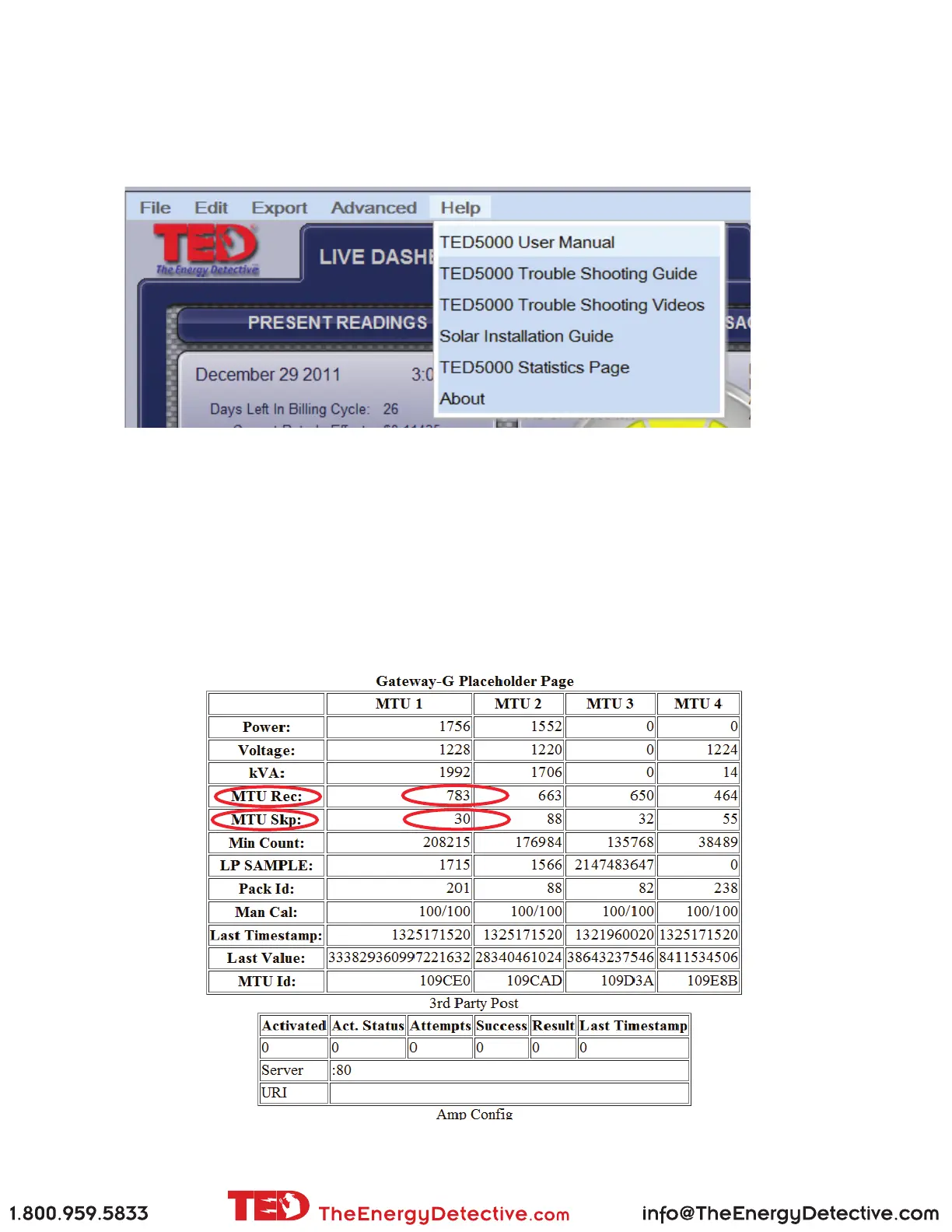

HELP Tab
Selecting any of the items shown under the HELP tab will open a link to download a le. You can
choose to either view the les on your browser window, or you can save them to your computer.
TED 5000 Statistics Page
This will open up a diagnostics screen. The most meaningful items (to the user) on the screen are the
“MTU Rec” and “MTU Skp” shown below. These indicate Received data-packets and Skipped data-
packets. If the Skipped is 20% or less than the Received, your system is in great shape. (divide MTU
Skp by MTU Rec). In the example below: 30 divided by 783 = 0.038 (or 3.8%)
If your MTU Skp ratio is higher than 20%, we would suggest you visit the following link:
http://www.theenergydetective.com/PLC
