TeeJet BoomPilot User Manual

7
-040 R2 EN
BoomPilot
®
6. ENCODE THE SECTION WIDTH IN THE MATRIX PRO:
The John Deere EL4 controller is always equipped with 9 section switches, but the number of sections on the sprayer boom will vary. This
combined with the xed ‘Center section’ on the EL4 controller will inuence on how the number of section and the widht’s are encoded in the
Matrix Pro.

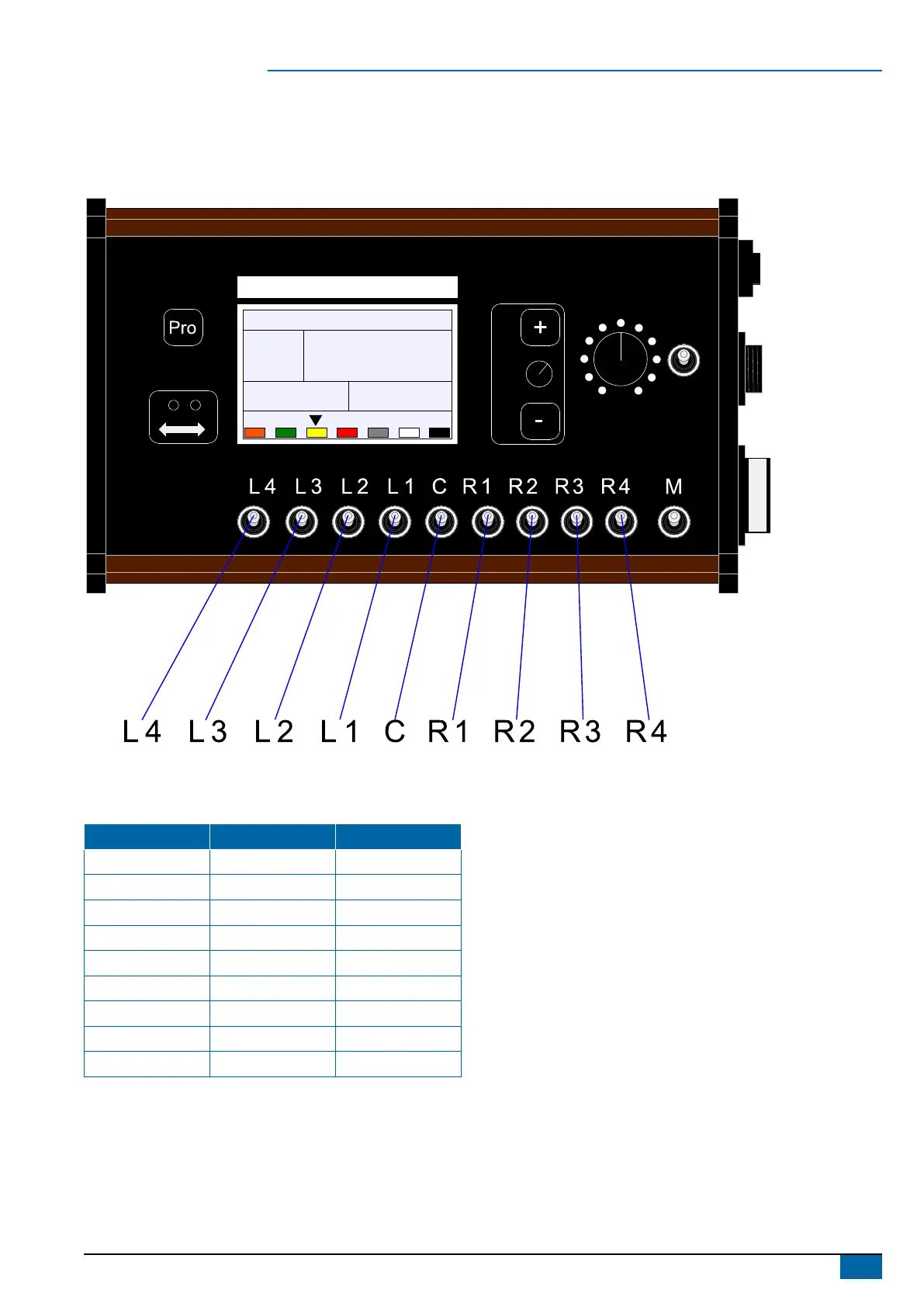

JOHN DEERE
EL-4
Example
The sprayer has 7 sections - each 4 meter. Encode the Matrix Pro as shown below:
Matrix Pro John Deere EL4 Width
Section 1 L4 0.01
Section 2 L3 4.00
Section 3 L2 4.00
Section 4 L1 4.00
Section 5 C 4.00
Section 6 R1 4.00
Section 7 R2 4.00
Section 8 R3 4.00
Section 9 R4 0.01
