teel 2P899A - Pump Reassembly

Maintenance (Continued)
10. Hold motor shaft with 7/16” open
end wrench on shaft flats and screw
impeller onto shaft. Be sure you do
not touch capacitor terminals with
body or any metal object.
Tightening impeller will auto-
matically locate seal in correct
position.
11. Remount diffuser on seal plate. BE
SURE diffuser is right side up as
follows (Figure 20).
a.Rib next to priming hold should
be at six o’clock position;
b.Part number (N1-28P) should be
between nine o’clock and ten
o’clock;
c. Both mounting screws must
engage screw holes in seal plate
(Figure 20).
d.BE SURE rubber pad (See Figure
20) stays in place on top of
diffuser.
12. Follow instructions under “Pump
Reassembly,” at right.
IMPORTANT: If the copper heat sink
moves or shifts during seal removal, it
should be removed and reinstalled.
NOTE: First, follow instructions under
“Pump Disassembly”.
Remove ceramic portion of sink (See
“Removing Old Seal”). Grasp copper
cone with fingers at the large end and
move back and forth. Be careful not to
deform it.
COPPER HEAT SINK INSTALLATION
1. Clean off all sealant and foreign
material.
2. Clean out heat sink cavity in seal
plate.
3. Apply thin layer of non-hardening
Permatex on outer surface of heat
sink (part that fits into cavity, Figure
21).
4. Using standard 7/8” socket, bolt, and
1
3
⁄8” washer pull heat sink into cavity
(See Figure 22).
5. Clean out any surplus Permatex from
insert cavity where new seal will be
located (Figure 23).
6. Follow steps 2 through 11 under
“Installing New Seal”.
PUMP REASSEMBLY
1. Install new O-Ring gasket on seal
plate (Figure 29, Ref. Nos. 5 and 3).
2. Pick up a small amount of liquid soap
on one finger and spread evenly over
O-Ring gasket for lubrication during
reassembly. Be careful not to nick or
tear O-Ring.
3. Replace motor onto pump body; be
sure rubber pad stays in place on top
of diffuser. Tighten four hex nuts
and lockwashers snugly (35-45 inch-
lbs. torque). Do not overtighten.
12
Teel Operating Instructions and Parts Manual
3P683D, 3P684D, 2P899A and 3P715B
Teel Standard Shallow Well
Jet Pumps and Systems
®
E
N
G
L
I
S
H
WIPE ON SMALL AMOUNT OF
NON-HARDENING PERMATEX
ON THIS SURFACE
756 0993
7/8" SOCKET
BOLT
1-3/8" O.D.
WASHER
038 0893

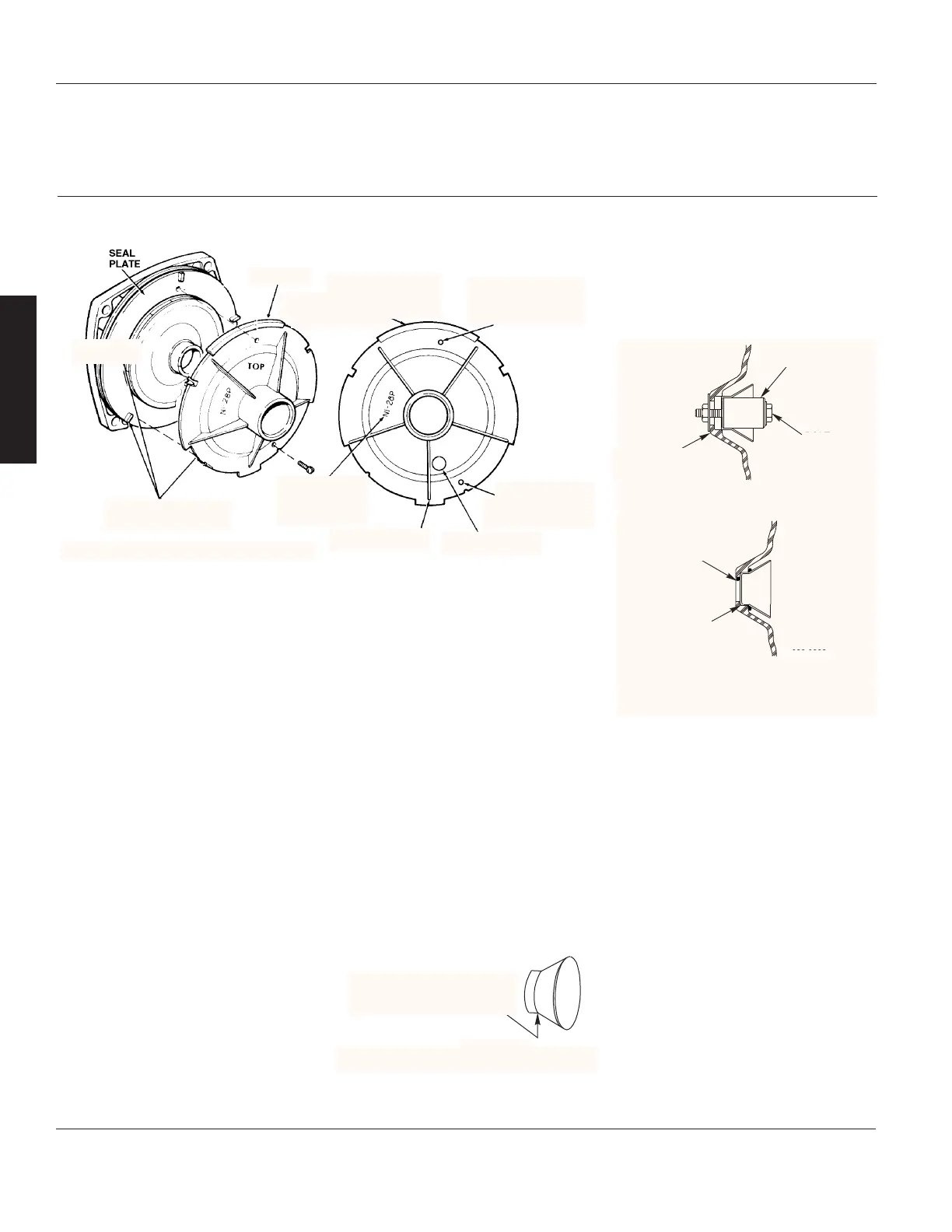

Figure 20 – Locate and Mount Diffuser
Figure 21 – Apply gasket seal
Figure 22 – Pull seal into place
REMOVE
SURPLUS
PERMATEX
PROPERLY
SEATED
039 0893
Figure 23 – Check seating and clean up
any extra gasket sealer.
Seal plate
Diffuser
Priming hole
7/8” Socket
1
3
⁄8” O.D.
Washer
Remove
surplus
Permatex
Properly
seated
Bolt
Rib at 6 o’clock
Be sure nibs
engage notches
Molded
part no. at
9:30 o’clock
Be sure rubber
pad stays in place
on top of diffuser
Be sure screw
engages hole in
seal plate
Be sure screw
engages hole in
seal plate
Wipe on small amount of
non-hardening Permatex
on this surface.
