teel 2P899A - Repair Parts List for Model 3 P715 B

For Repair Parts, call 1-800-323-0620
24 hours a day – 365 days a year
16
Teel Operating Instructions and Parts Manual
3P715B
E
N
G
L
I
S
H
Ref.
No. Description Part No. Qty.
Repair Parts List for Model 3P715B
1
2
3
2167 1295
5
5
7
8
4
6
Please provide following information:
– Model number
– Serial number (if any)
– Part description and number as shown in parts list
Address parts correspondence to:
Grainger Parts
P.O. Box 3074
1657 Shermer Road
Northbrook, IL 60065-3074 U.S.A.
1 Tank Assembly (Incl. Diaphragm, Valve, Nuts & Inlet Flange) U231-498 1
2 Inlet Flange Assembly U31-442 1
3 5/16”-18 Hex Nut * 6
4 1” Hose x 3/4” NPT Male Elbow * 1
5 Clamp U19-55SS 2
6 Hose U74-37U 1
7 3/4” Discharge Tee with Barbed Fitting U78-972P 1
8 3/4” NPT Pipe Plug * 1
∆ Diaphragm U20-7 1
∆ Air Valve w/Cap * 1
∆ 3/8”-16 x 3/4” Carriage bolt * 2
(∆) Not shown.
(*) Standard hardware item, available locally.

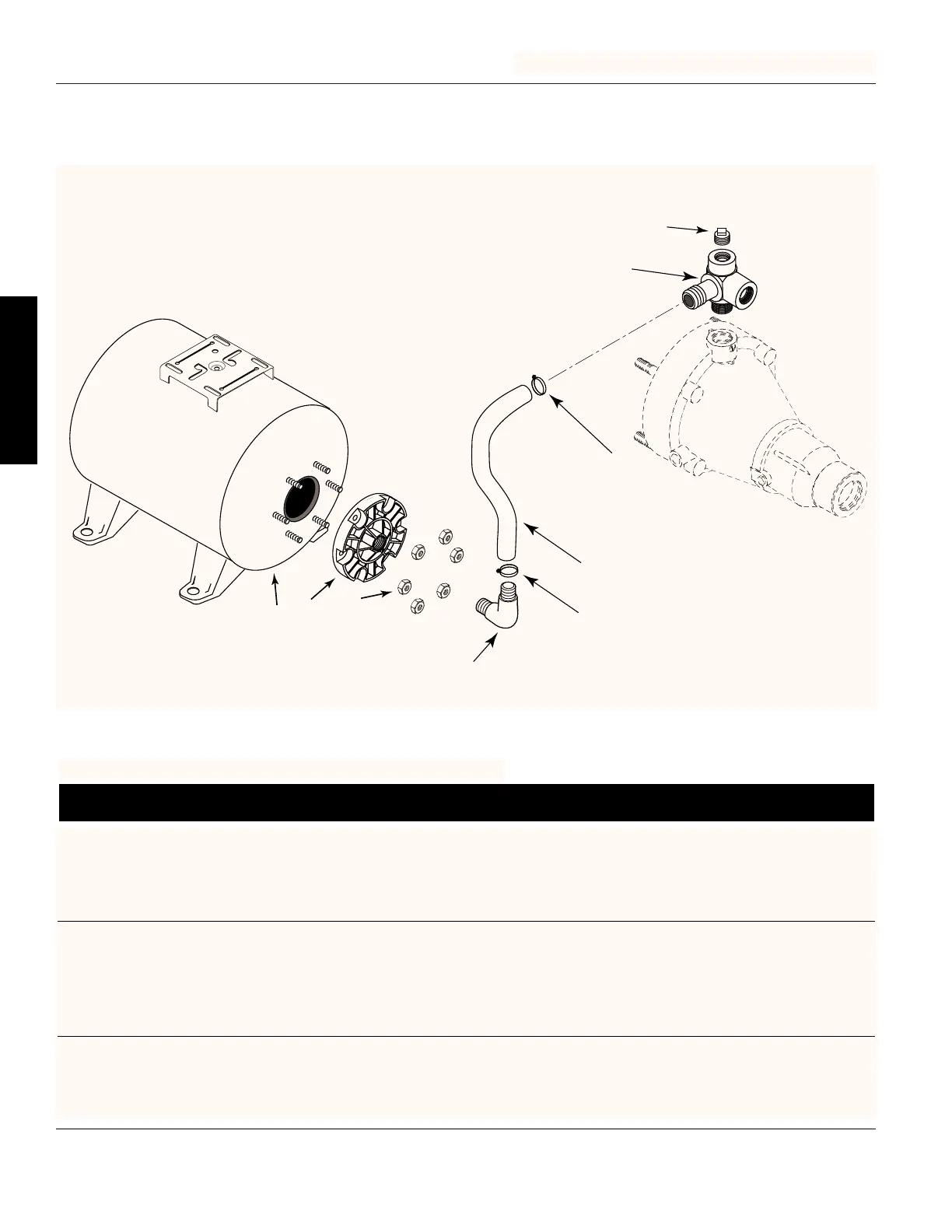

Figure 30 — Repair Parts Illustration - Tank for Model 3P715B
