Teel Operating Instructions and Parts Manual 4P037, 4P038, and 4P039
18
E
N
G
L
I
S
H
1
2
3
4
5
7
6
8
9
10
11
12
13
14
1 Adjusting screw U30-537C 1
2 Spring follower J24-7 1
3 Diaphragm J20-5 1
4 Valve guide J42-4 1
5 Diaphragm and valve guide assembly J120-14 1
6 Valve seat only J66-15 1
7 Regulator body with valve seat J112-8E 1
8 1/2 x 1/8” NPT Reducer bushing * 1
9 Pressure gauge U239-3 1
10 Adjusting screw J28D 1
11 10-32 x 1/2” Machine screw * 6
12 Regular bonnet J52-5 1
13 Spring button J48 1
14 Spring J24-9 1
(*) Standard hardware item, available locally.
Ref.
No. Description Part No. Qty.
Pressure Regulator Repair Parts List
For Model Nos. 4P037, 4P038 and 4P039
Please provide following information:
– Model number
– Serial number (if any)
– Part description and number as shown
in parts list
Address parts correspondence to:
Grainger Parts
P.O. Box 3074
1657 Shermer Road
Northbrook, IL 60065-3074 U.S.A.

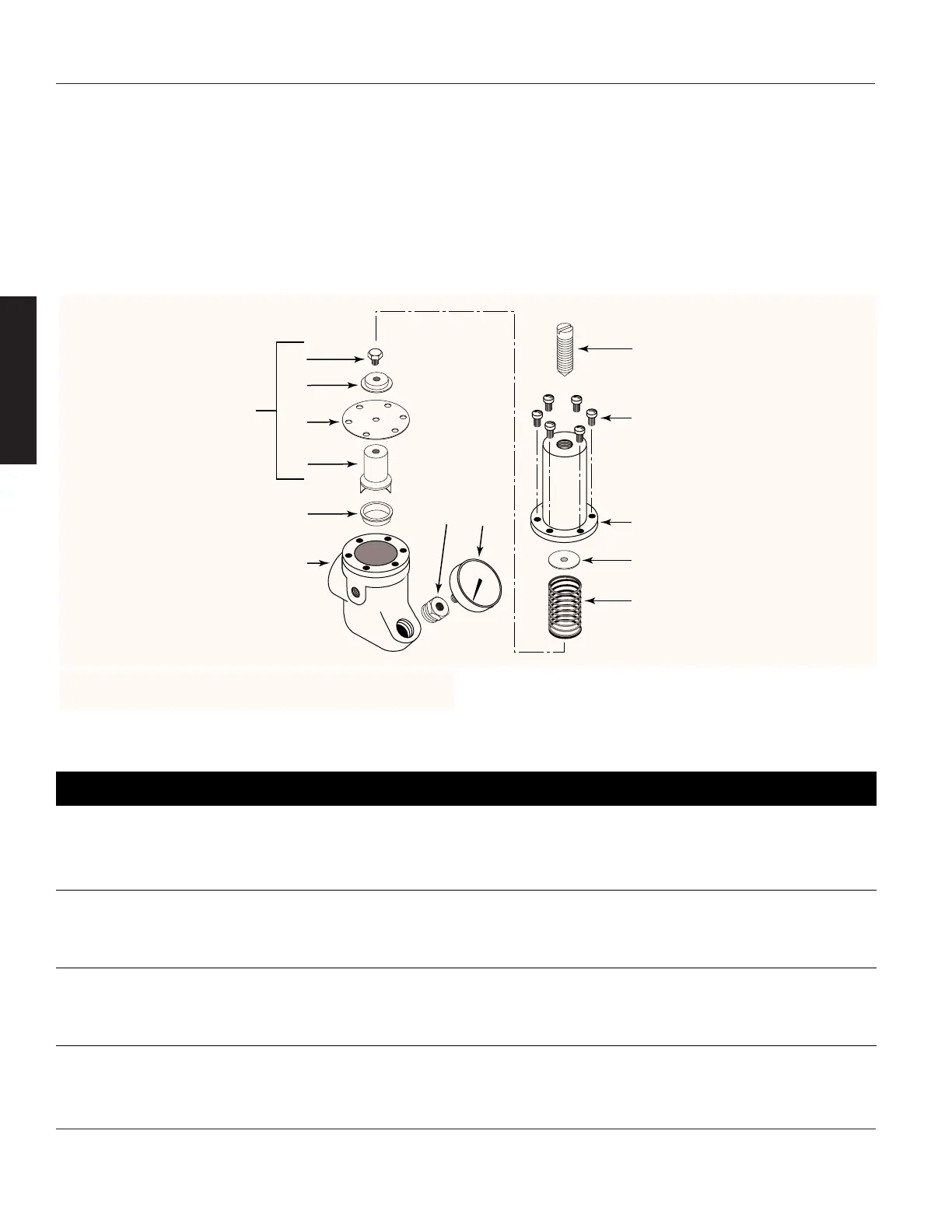

Figure 25 – Pressure regulator repair parts illustration for
Model Nos. 4P037, 4P038 and 4P039
