For Repair Parts, call 1-800-323-0620
24 hours a day – 365 days a year
Teel Operating Instructions and Parts Manual 3P740A and 4RJ96A
E
N
G
L
I
S
H
(*) Standard hardware item, available locally.
10
11
1
3
4
6
7
8
9
2
12
22
23
24
25
26
20
19
15
15
17
16
18
14
16
21
5
13
13
1165 0695NF
20
100
80
60
40
1 Motor A300EH A300FH 1
2 1/2” Connector U43-13C U43-13C 1
3 1/2” Locknut * * 1
4 Pressure Switch 5B412 5B412 1
5 1/4” NPT Straight compression fitting * * 1
6 Tube U37-654P U37-654P 1
7 Pressure regulator assembly (see Page 19 for parts) J212-24A J212-24A 1
8 Pump adapter L2-16A L2-16A 1
9 3/8-16 x 1” Capscrew * * 2
10 #3 Woodruff shaft key U65-15SS U65-15SS 2
11 Shaft seal 17351-0101A 17351-0101A 1
12 Spring holder J24-11 J24-11 1
13 Impeller J105-76PN(2) J105-74PA(3) -
14 Impeller spacer J43-23(1) J43-23(2) -
15 Gasket J20-11(2) J20-11(3) -
16 Wear ring J23-10(2) J23-10(3) -
17 Intermediate volute with wear ring J101-26(1) J101-26(2) -
18 Wear ring J23-11(1) J23-11(2) -
19 Impeller nut U36-175D U36-175D 1
20 Base volute with wear ring J101-33 J101-33 1
21 3/8-16 x 4
1
⁄4” Capscrew * * 4
22 1/4” NPT sq. hd. Pipe plug * * 1
23 Adapter flange package (Incl. #24, 25, 26) J216-26 J216-26 1
24 Flange gasket J20-12 J20-12 1
25 1” x 1
1
⁄4” NPT Adapter flange J2-15 J2-15 1
26 1/2-13 x 1
1
⁄4” Capscrew * * 2
Ref.
No. Description 3P740A 4RJ96A Qty.
Pump Repair Parts List For Model Nos. 3P740A and 4RJ96A
Please provide following information:
– Model number
– Serial number (if any)
– Part description and number as shown
in parts list
Address parts correspondence to:
Grainger Parts
P.O. Box 3074
1657 Shermer Road
Northbrook, IL 60065-3074 U.S.A.

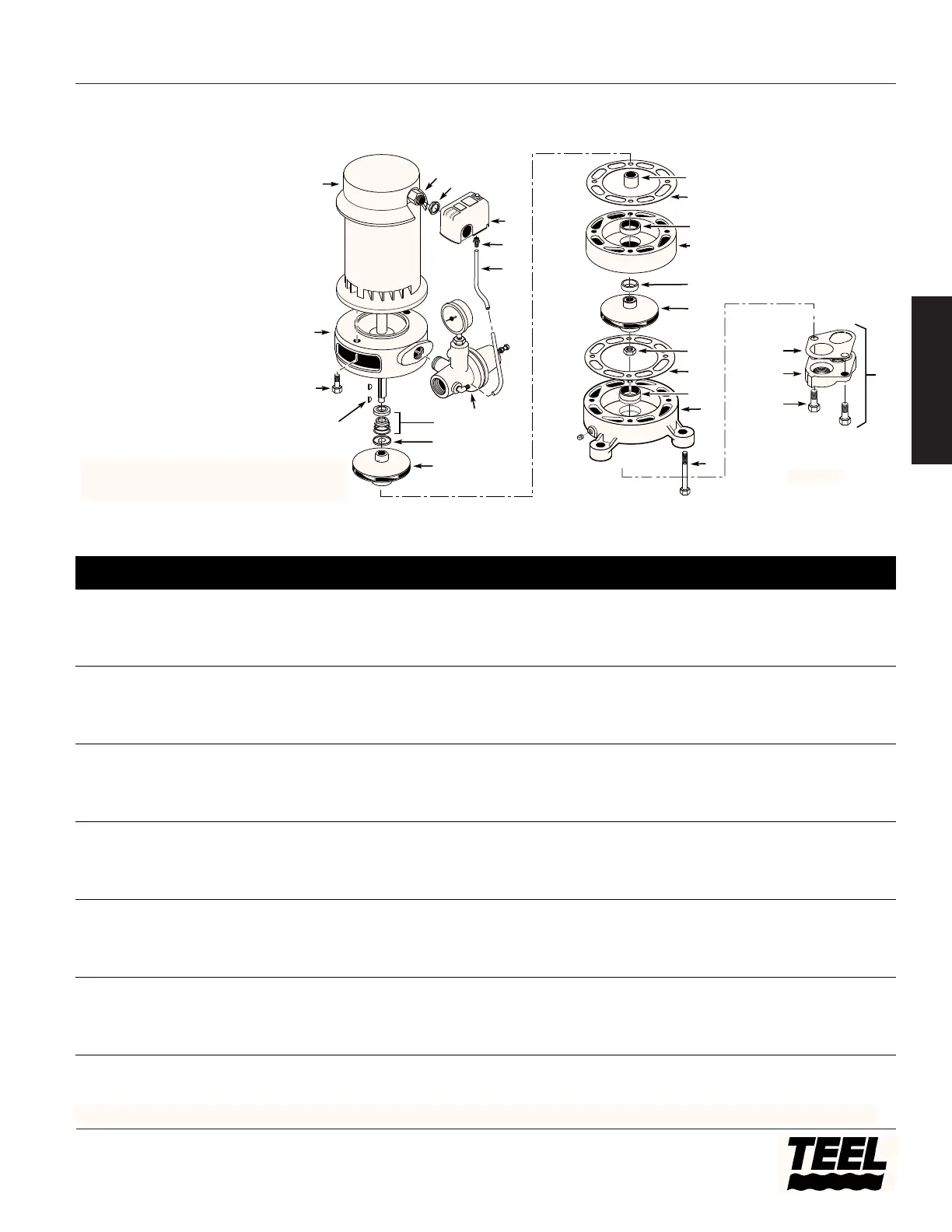

Figure 24 – Pump repair parts
illustration for Model Nos. 3P740A and
4RJ96A
®
