Teel Operating Instructions and Parts Manual
4P037, 4P038, and 4P039
E
N
G
L
I
S
H
1 Motor canopy J18-59 J18-59 J18-59 1
2 Motor A200CH A200DH A200EH 1
3 Adapter L2-8B L2-8B L2-8B 1
4 3/8-16 x 1” Capscrew * * * 2
5 Shaft seal U109-6A U109-6A U109-6A 1
6 1/4” NPT Barbed elbow * * * 1
7 †Pressure regulator J212-19E J212-19E J212-19E 1
8 5/16-18 x 5/8” Capscrew * * * 6
9 1” NPT x 2” Nipple U37-55GPT U37-55GPT U37-55GPT 1
10 Tube U37-672P U37-672P U37-672P 1
11 1/4” NPT Barbed fitting * * * 1
12 Pressure switch 5B412 5B412 5B412 1
13 1/2” Locknut * * * 1
14 Connector J43-13C J43-13C J43-13C 1
15 Impeller J105-42P J105-8P J105-22P 1
16 Volute assembly-complete J201-35B J201-35 J201-35 1
17 Wear ring J8 J8A J8A 1
18 Gasket J20-9 J20-9 J20-9 1
19 Volute with wear ring J101-35B J101-35 J101-35 1
20 Adapter flange package J216-26 J216-26 J216-26 1
21 Flange gasket J20-12 J20-12 J20-12 1
22 1” x 1
1
⁄4” NPT Adapter flange J2-15 J2-15 J2-15 1
23 1/2-13 x 1
1
⁄4” Capscrew * * * 2
24 1/4” NPT Pipe plug * * * 1
Ref. 4P037 4P038 4P039
No. Description 1/2 HP 3/4 HP 1 HP Qty.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
2363 0396
(*) Standard hardware item, available locally.
(†) See Page 18 for regulator repair parts.
Pump Repair Parts List For Model Nos. 4P037, 4P038 and 4P039
Please provide following information:
– Model number
– Serial number (if any)
– Part description and number as shown
in parts list
Address parts correspondence to:
Grainger Parts
P.O. Box 3074
1657 Shermer Road
Northbrook, IL 60065-3074 U.S.A.

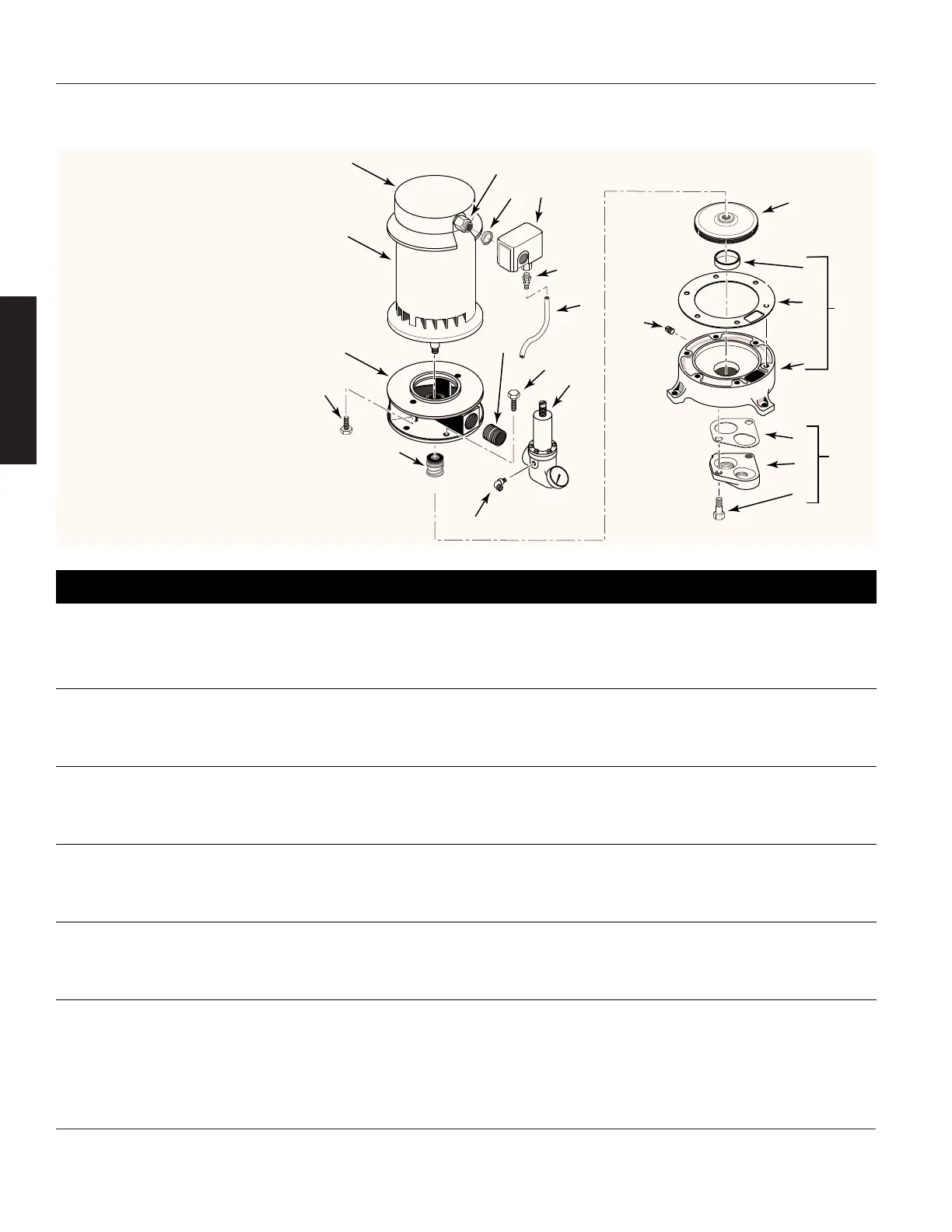

Figure 23 – Pump repaire parts illustration for
Model Nos. 4P037, 4P038 and 4P039
