Installation (Continued)
2. Install a second close nipple and tee
with a relief valve in the tee.
3. Connect the other end of the second
discharge tee to your plumbing
system.
4. Check the pre-charge of air in the
tank with an ordinary tire gauge. The
pre-charge should be 2 psi less than
the cut-in setting of the pump’s
pressure switch. The pre-charge is
measured when there is no water
pressure in the tank. Your new pump
has a 30/50 psi switch, so adjust the
tank pre-charge pressure to 28 psi.
You have just completed the tank
connection for your jet pump. Please
go to Pages 11 and 12 for Electrical
Installation.
STANDARD TANK CONNECTION
(FIGURES 13, 14, 15)
1. Install a close nipple and a tee in the
pump discharge port. Mount a relief
valve in one arm of the tee.
2. Install a second close nipple and tee
in the open arm of the first tee. Put a
priming plug in one arm of the
second tee.
3. Run a pipe from the open arm of the
second tee to the inlet port of your
tank. The pipe size must be at least
as large as the pump discharge port.
4. Remove the 1/8” NPT pipe plug from
the pump Air Volume Control (AVC)
port (See Figures 13 and 14). Run
tubing from the pump’s AVC port to
the port on the AVC mounted on the
tank. See instructions provided with
tank and AVC for details.
You have just completed the tank
connection for your jet pump. Please
go to Pages 11 and 12 for Electrical
Installation.
20
40
60
80
100
2324 0296
From
Well
20
40
60
80
100
To Household
Water System
Pressure Gauge
Relief
Valve
Priming Port
Control Valve

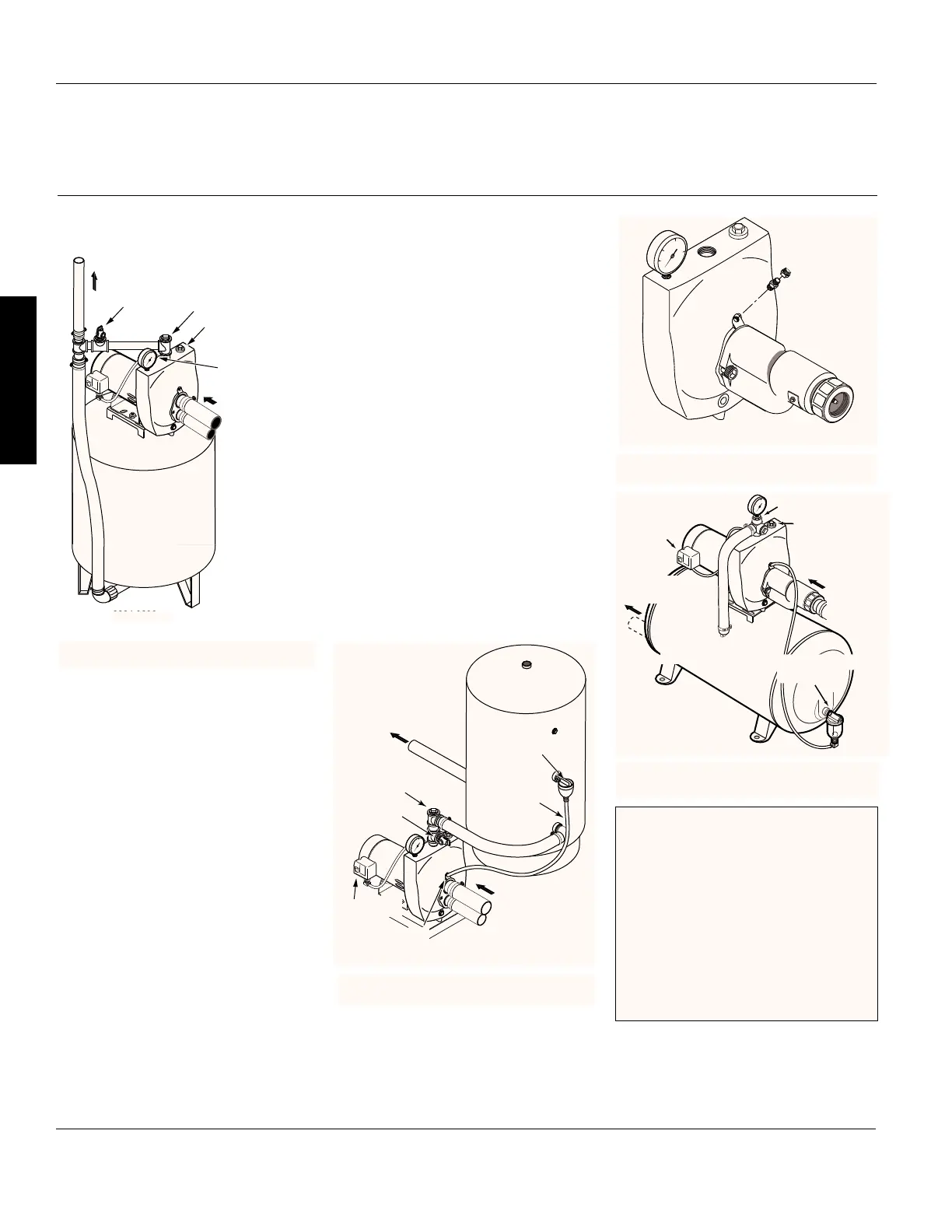

Figure 12 – Pre-charged Tank
Connections
10
Teel Operating Instructions and Parts Manual
4RJ47, 4RJ48, 4RJ49, 4RJ50, 4P035A and 4P036A
Teel Heavy Duty Cast Iron
Convertible Jet Pumps
®
E
N
G
L
I
S
H
20
40
60
80
100
To Household
Water System
Air Volume
Control
Air Volume
Control Tube
Priming Tee
and Plug
2325 0296
AVC
Port
From
Well
Relief
Valve
Pressure
Switch
Figure 13 – Standard Tank Connections
2317 0296
From
Well
To Household
Water System
Priming Plug
Control Valve
Pressure
Switch
30 Gallon
Standard Tank
Air Volume
Control
20
40
60
80
100
Figure 15 – Model 4RJ49 Pump Tank
System
Figure 14 – AVC Connection - Shallow
Well
20
40
60
80
100
1339 1094
SEALING PIPE JOINTS
Use teflon tape or a teflon-
based pipe joint compound to
seal the joints in the suction
pipe. Make sure that all pipe
joints in the suction pipe are air-
tight as well as water tight.
If the suction pipe can suck air,
the pump will not be able to
pull water from the well.
