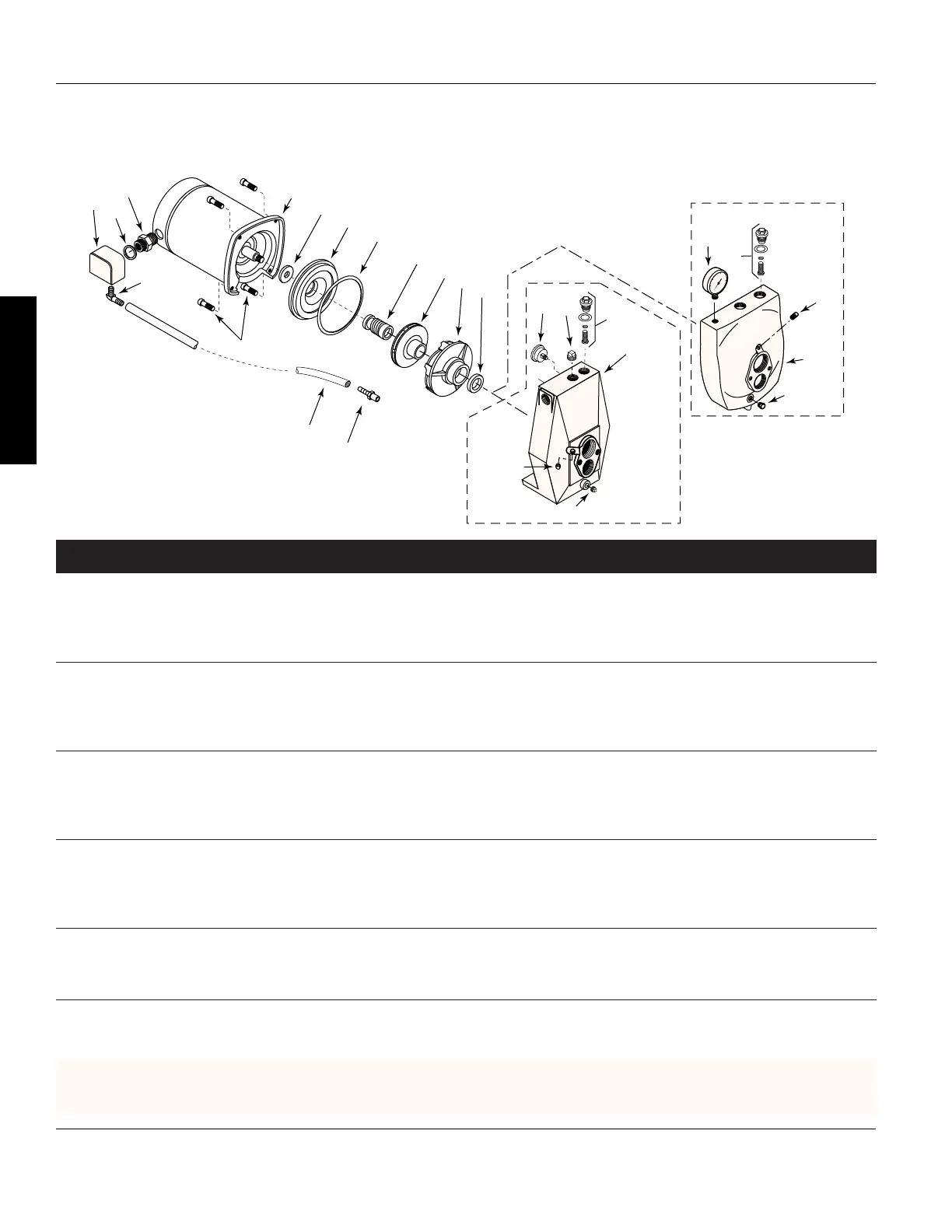

Figure 36 – Replacement Parts Illustration For Pump
Please provide following
information:
-Model number
-Serial number (if any)
-Part descriptions and number as
shown in parts list
Address parts correspondence to:
Grainger Parts
P.O. Box 3074
1657 Shermer Road
Northbrook, IL 60065-3074 U.S.A.
1 Motor, 115/230V, 60 Cy. 2K403 3K030 1D188 1D189 †1D185 1
2 Water slinger C69-2 C69-2 C69-2 C69-2 C69-2 1
3 Seal plate N3-9 N3-9 L3-10 L3-10 L3-10 1
4 Seal plate gasket N20-35 N20-35 C20-21 C20-21 C20-21 1
5 Shaft seal U109-6A U109-6A U109-6A U109-6A U109-6A 1
6 Impeller J105-40P J105-42P J105-8PAN J105-85P J105-22PA 1
7 Diffuser L1-25P L1-25P L1-23P L1-47P L1-23P 1
8 Diffuser gasket L21-1 L21-1 L21-1 L21-1 L21-1 1
9 Pressure gauge U239-2 U239-2** U239-2 U239-3 U239-3 1
10 1” NPT Priming pipe plug – – – * * 1
11 Control valve assembly L262-4PS L262-4PS L262-5PS L262-5PS L262-5PS 1
12 Pump body L76-48A L76-48A L76-49A L176-40 L176-40 1
13 1/4” NPT Drain plug * * * * * 1
14 1/8” NPT Pipe plug * * * * * 1
15 1/4” NPT Barbed fitting, st. * * – – – 1
16 Switch tube U37-192P U37-192P U37-192P U37-192P U37-192P 1
17 3/8 - 16 x 1
1
⁄4” lg. Capscrew * * * * * 4
18 1/4” NPT Barbed fitting, el. * * * * * 1
19 Pressure switch 5B412 5B412 5B412 5B412 5B412 1
20 1/2” Locknut * * * * * 1
21 Connector L43-5C L43-5C L43-5C L43-5C L43-5C 1
∆ #8-32 x 3/4” Rd. hd. screw – – * * * 3
∆ 3/8-16 Hex nut – – * * * 4
∆ Venturi – – – – N32P-69B 1
∆ Base J4-9 J4-9 J4-9 – – 1
∆ Motor pad C35-5 C35-5 C35-5 – – 1
Ref. 4RJ47 4RJ48 / 4RJ49 4RJ50 4P035A 4P036A
No. Description 1/3 HP 1/2 HP 3/4 HP 1 HP 1
1
⁄
2 HP Qty.
Replacement Parts List
18
Teel Operating Instructions and Parts Manual
4RJ47, 4RJ48, 4RJ49, 4RJ50, 4P035A and 4P036A
E
N
G
L
I
S
H
(∆) Not shown. (*) Standard hardware item, available locally.
(†) Original motor was 115/230V, replacement is 230V only. (**) Model 4RJ49 uses a standard 1/4” NPT
plug here. See Page 19.
