Teel Operating Instructions and Parts Manual 4RJ49
®
E
N
G
L
I
S
H
For Replacement Parts, call 1-800-323-0620
24 hours a day – 365 days a year
1
3
2
4
14
15
13
12
11
5
9
10
8
1358 1094NF
20
40
60
80
100
2
6
7
(*) Standard hardware item, available locally.
1 30 gallon Tank U231-94 1
2 Hose clamp U19-5A 2
3 1” x 17” Long hose U74-37M 1
4 1” NPT x 1” Hose Barb cross U78-961P 1
5 Pressure gauge U239-3 1
6 1/2” NPT x 1/8” NPT Reducer bushing * 1
7 1” NPT Pipe plug * 1
8 1/8” NPT Bayonet fitting * 1
9 AVC Tube U37-626P 1
10 Air volume control U238-4 1
11 1/4” NPT Bayonet elbow * 1
12 1/4” NPT x 1
1
⁄2” Nipple * 1
13 3/8-16 x 1
1
⁄4” lg. Carriage bolt * 2
14 3/8” Lockwasher * 2
15 3/8-16 Hex nut * 2
Ref.
No. Description Part No. Qty.
Replacement Parts List For Tank (Model 4RJ49 only)
Please provide following information:
-Model number
-Serial number (if any)
-Part descriptions and number as shown in parts list
Address parts correspondence to:
Grainger Parts
P.O. Box 3074
1657 Shermer Road
Northbrook, IL 60065-3074 U.S.A.

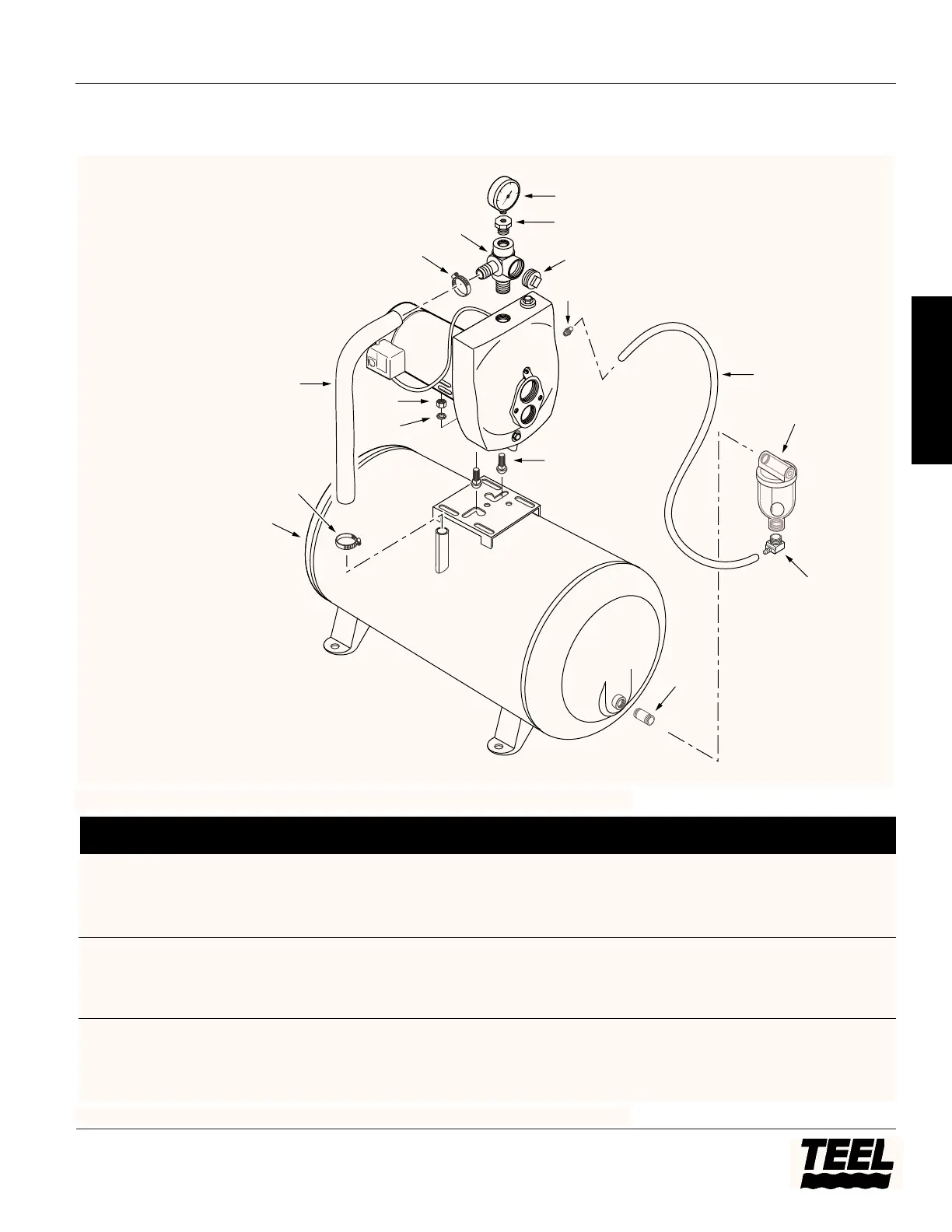

Figure 37 – Replacement Parts Illustration For Tank
(Model 4RJ49)
