Step Six
Install the Front Ankle Assembly
• Gather the Ankle Bar (F5-1047),
Black Plugs (F5-1056), Foam
Rollers (F5-1051), Bolt Sleeve
(IA-1110), and Sleeve Screw (IA-
1112).
• Stand in front of the Main Shaft
and slide the Ankle Bar over the
ratchet housing into the slot
(Figure 12).
• Align the bolt holes. Insert the
Bolt Sleeve through the holes
and secure with the Sleeve
Screw (Figure 13).Position one
Allen Wrench on the Sleeve
Screw and one on the Bolt
Sleeve to tighten.
• Slide the Foam Rollers over each
side of the Ankle Bar (Figure 14).
• Insert the Black Plugs into both
ends of the Ankle Bar (Figure
14).

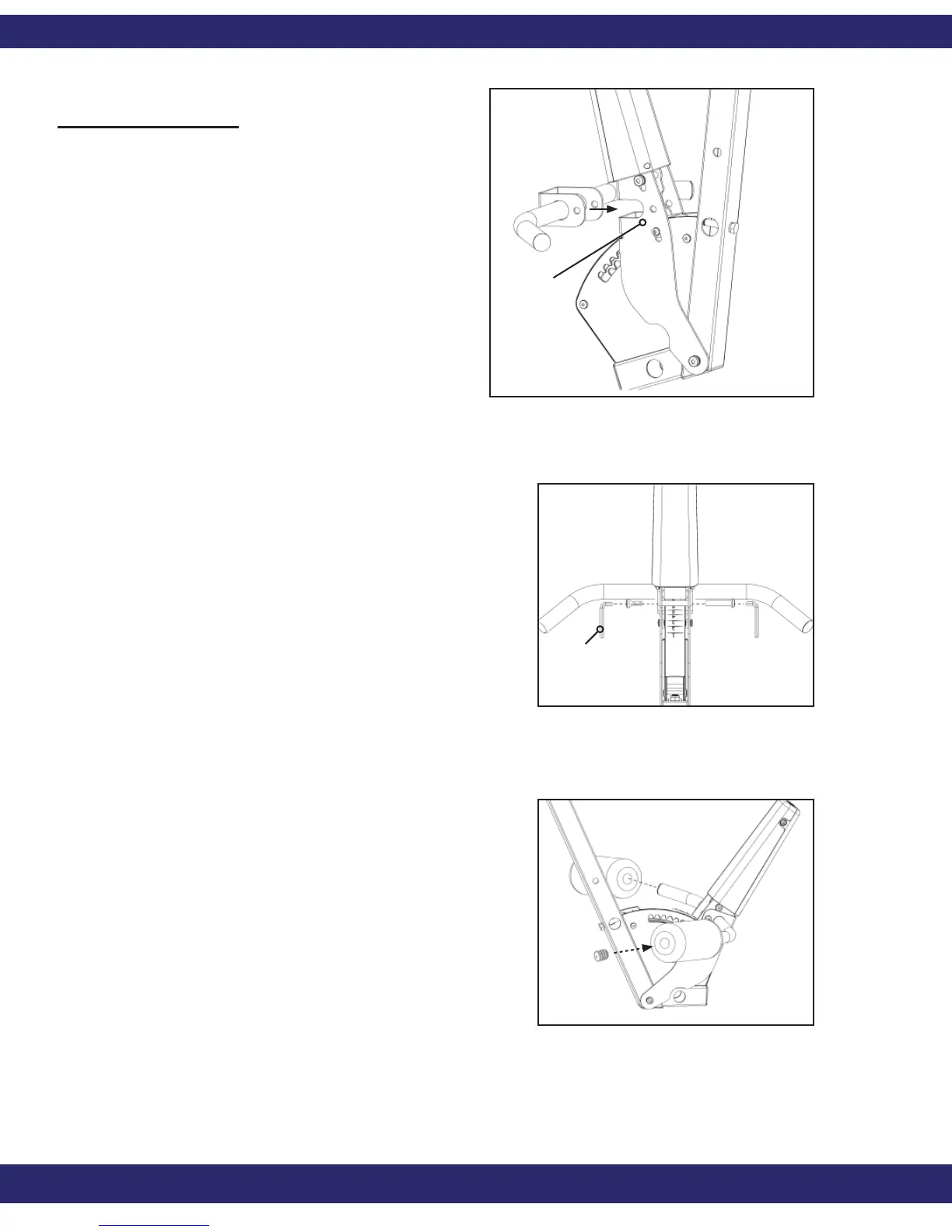

Figure 14
Figure 13
Figure 12
Ratchet Housing
Allen Wrench
