Teeter Hang Ups EP-950 - Step Three

6
ASSEMBLY
Step Three
Install the Roller Hinges
(TR-1001) onto the Table Bed
(EP-1140)

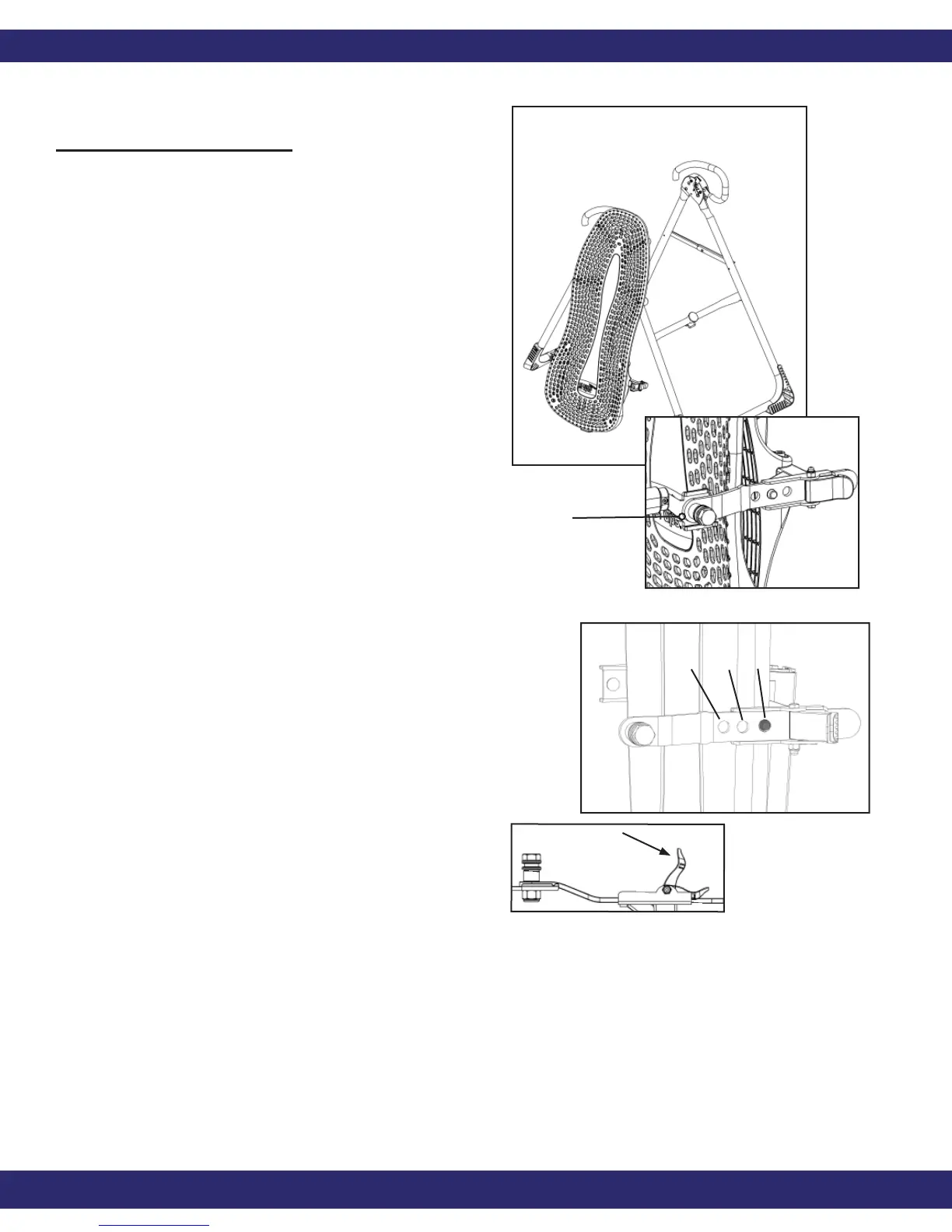

• For ease-of-assembly, rest the
Table Bed against the side of the
A-frame (Figure 5).
• Open the Cam Locks on each side
of the Table Bed (Figure 5A).
• With the Pivot Pins facing
outward, insert the Roller Hinges
into the brackets on each side of
the Table Bed. The Roller Hinges
must slide between the Cam
Locks and the brackets.
• Make sure the Roller Hinges are
in the same hole setting on both
sides. Figure 6 shows the Roller
Hinges engaged correctly in
setting C.
• Push down on the Cam Locks
(Figure 6A) to secure the hinges.
NOTE: Refer to the Owner’s
Manual for an explanation of the
hole settings. If you are unsure,
use setting C to start.
Teeter Hang Ups EP-950
A B C
Figure 6A
Figure 6
Figure 5A
Pivot Pin
Figure 5
