Unpack and Prepare Your Workspace
Follow the instructions on the outside of the box for the easiest unpacking process.
If possible, assemble the equipment at or near the space
in which you intend to use it to avoid moving it later.
Unpack all parts and support materials.
Set aside packing materials and clear your work area.
Locate the Hardware Kits inside the box.
They are labeled to correspond with the assembly process.
LET’S GET STARTED
FIGURE 4

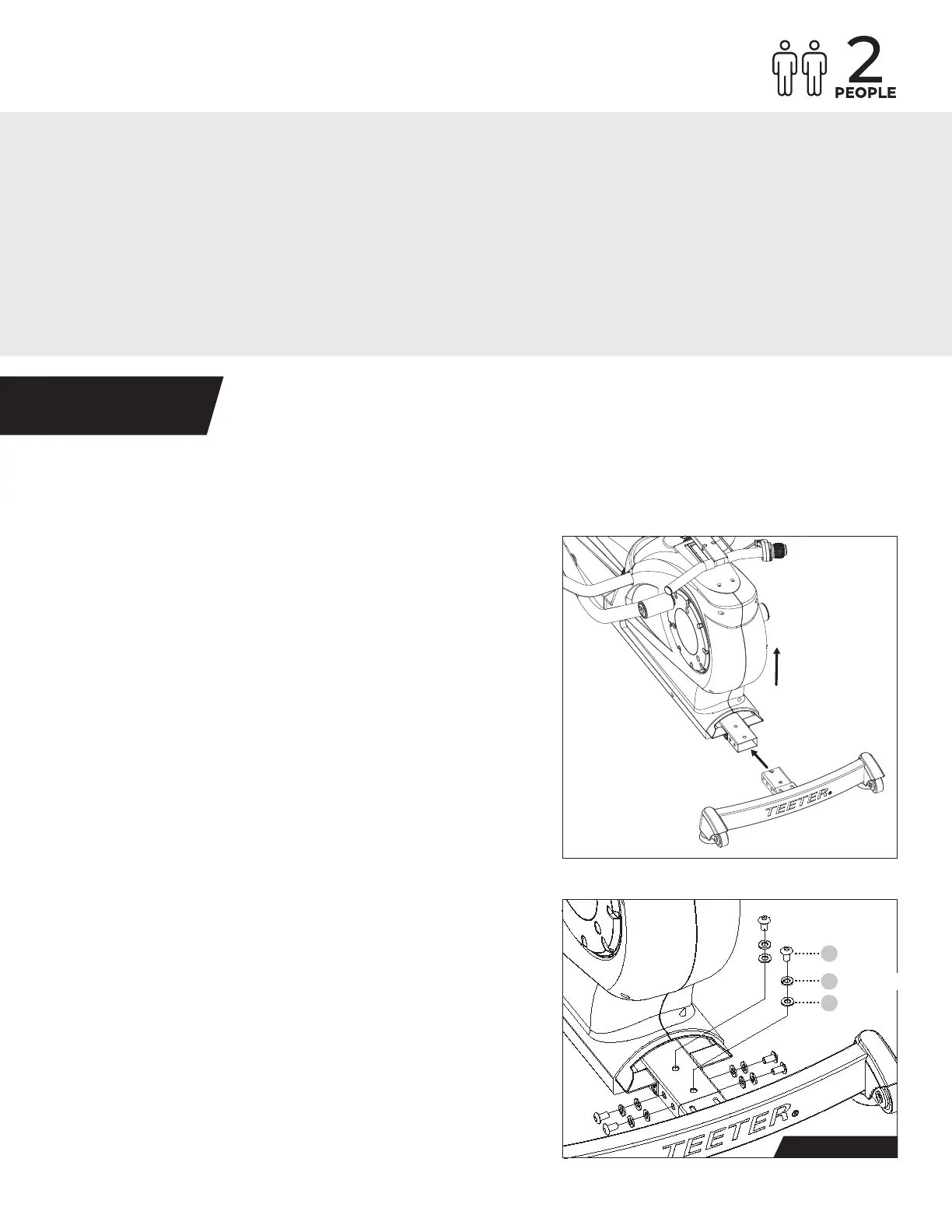

ASSEMBLE REAR STABILIZER
STEP 1
Attach Rear Stabilizer
Figure 1: Remove the Base from the packaging and
position it on a level surface on the floor.
Remove the wooden plug from the Main Support
Tube in the back of the Base and set aside.
Lift the Base slightly from the back and insert the
Rear Stabilizer into the Main Support Tube at the
back of the Base.
TIP: The wooden plug can be used to prop up the
base to make inserting the screws into the Rear
Stabilizer easier.
Step 1a Hardware
108
9
8
Bolt
Spring Washer
Washer
Figure 2: Use the Step 1a Hardware Kit to attach the
Rear Stabilizer.
First hand tighten 6 × Bolts with 6 × Spring washers
and 6 × Washers on the Rear Stabilizer Joint. The
Spring Washers should always be between the Bolt
Head and the Washer.
Use the Allen wrench to fully tighten each bolt.
Figure 2
Lift
Insert
Figure 1
NOTE: Always hand tighten all the bolts or screws in each step before fully tightening with the
wrench or screwdriver. For reference, the Front, Back, Right and Left of the equipment is labeled
on Page 3.
To Next Page
