Operation Instruction for Display Cabinet
6

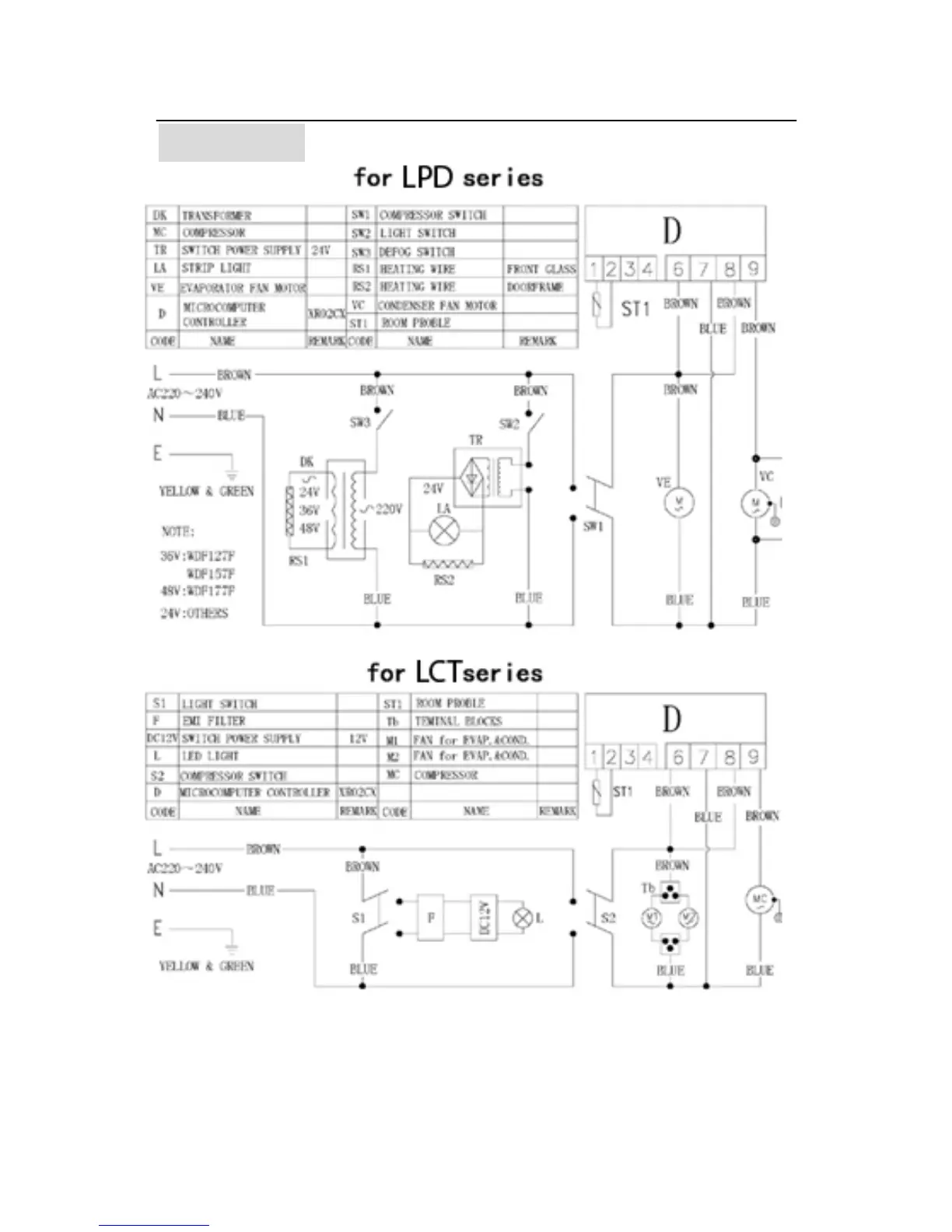

Circuit diagram
Note: the part in dotted line box is not applicable to some types. Please refer
to the real object for the wiring circuit.
