TECHNICAL CHARACTERISTICS
GENERAL VIEW – MAIN COMPONENTS AND THEIR FUNCTIONS

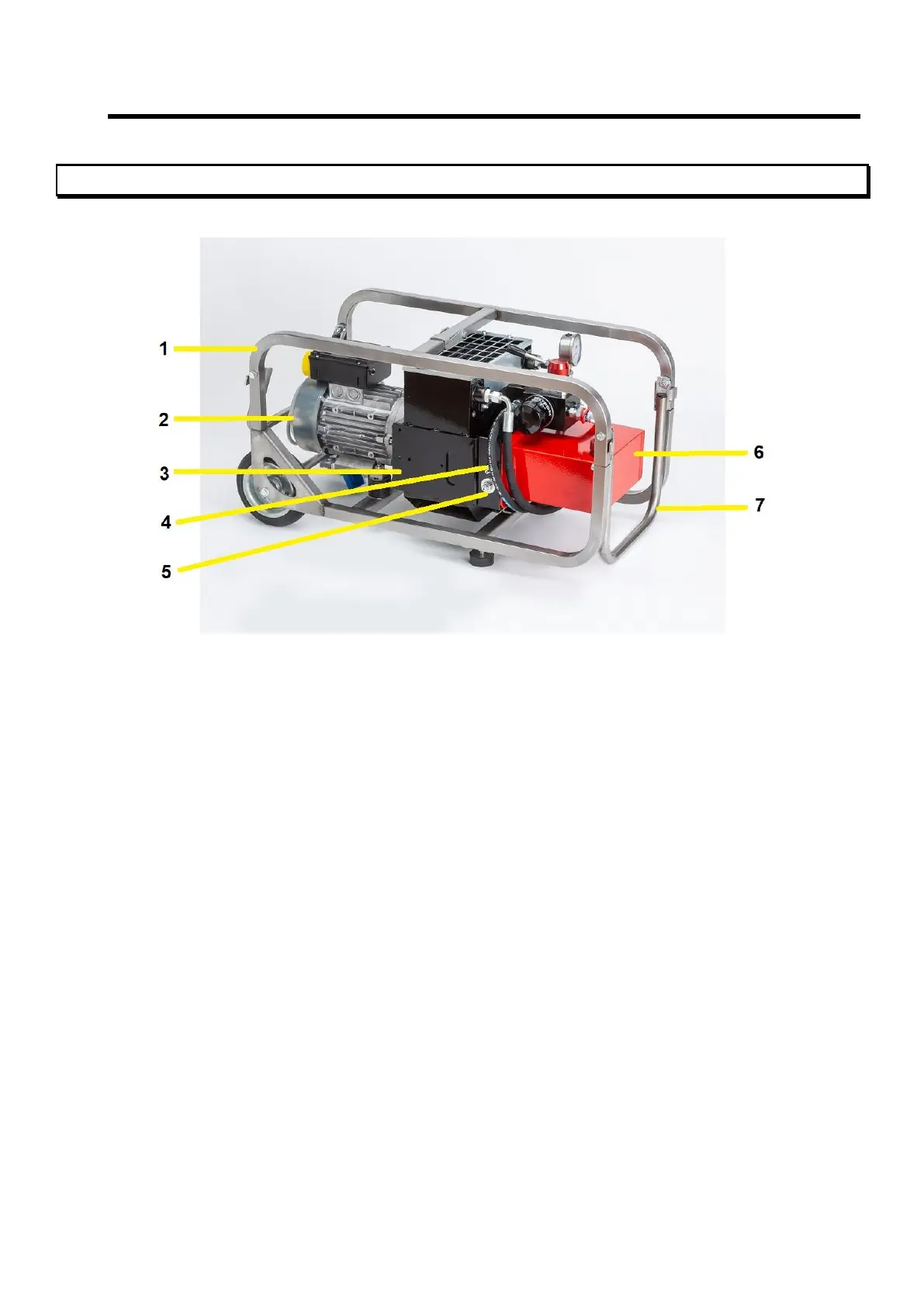

Fig. 1 - PP700-E/S HIGH PRESSURE HYDRAULIC POWER PACK
1 - FRAME is made in robust steel tubes with wheels, rubber feet, handles and lifting hook.
2 - MOTOR:
• ELETTRIC 2,2 KW, 230V/110V single phase 50Hz and 120V single phase 60Hz
Complete with main switch and RCBO protection
• PETROL ENGINE 3.6 kW
Complete with starter handle and ON/OFF switch
3 - COOLING SYSTEM with impeller
4 - “MAXIMUM PRESSURE” VALVE is the valve that adjust the maximum pressure limit in the unit.
5 - “CUT-OFF” VALVE releases the pressure when it is near its limit.
NOTE: The regulation screws of both valves 4-5 must be secured by the locknut to prevent from get lost
due to vibration and consequently change the pressure regulations.
The "MAX PRESSURE" and "CUT-OFF" valves have been adjusted by TEHMA to the maximum
working pressure that can be accepted by its tools.
6 - HYDRAULIC OIL TANK the oil capacity is 4 litres.
Inside the tank are located the high-pressure pumps.
7 - LIFTING HANDLE for moving the machine
