2. Description of the system elements

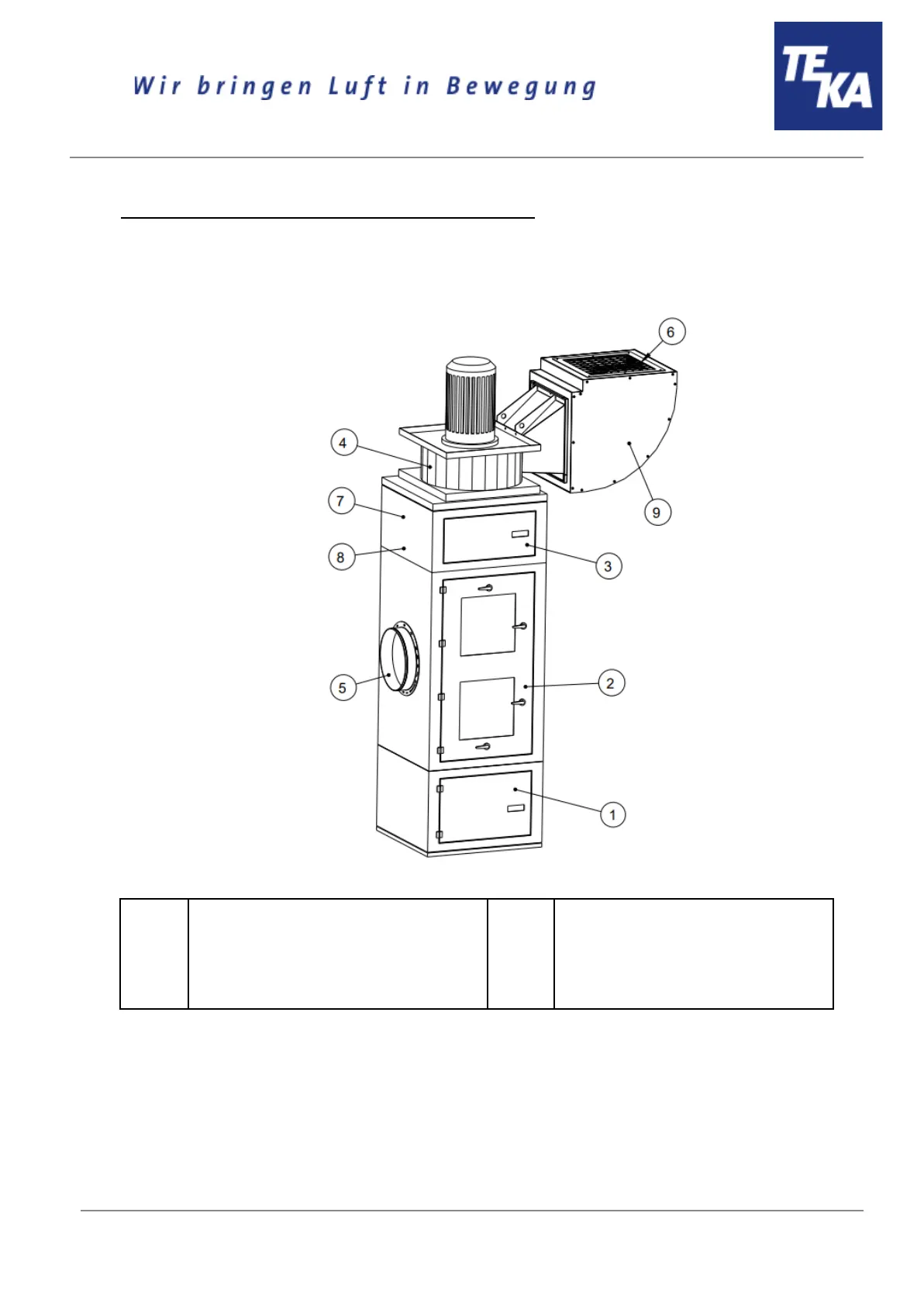

2.1. Illustration of the system elements
Installation example:
Z.Nr. 21382701
Dust collecting housing
Filter housing
Cleaning housing
Fan
Pos.5
Pos.6
Pos.7
Pos.8
Pos.9
Suction nozzle
Exhaust air nozzle
Connection for compressed air
Drain valve for compressed air
Silencer
2.2. Functionality of the system
The filter unit serves to suck off and filter polluted air (according to the intended use). The air is purified
on the surface of the filter cartridge in the filter section of the unit. The separated dust is collected in a
dust collecting tank. An automatic filter monitoring indicates when a cleaning or a replacement of the
filters is necessary. The purified air is led outside via the exhaust air pipe or back into the working room.
