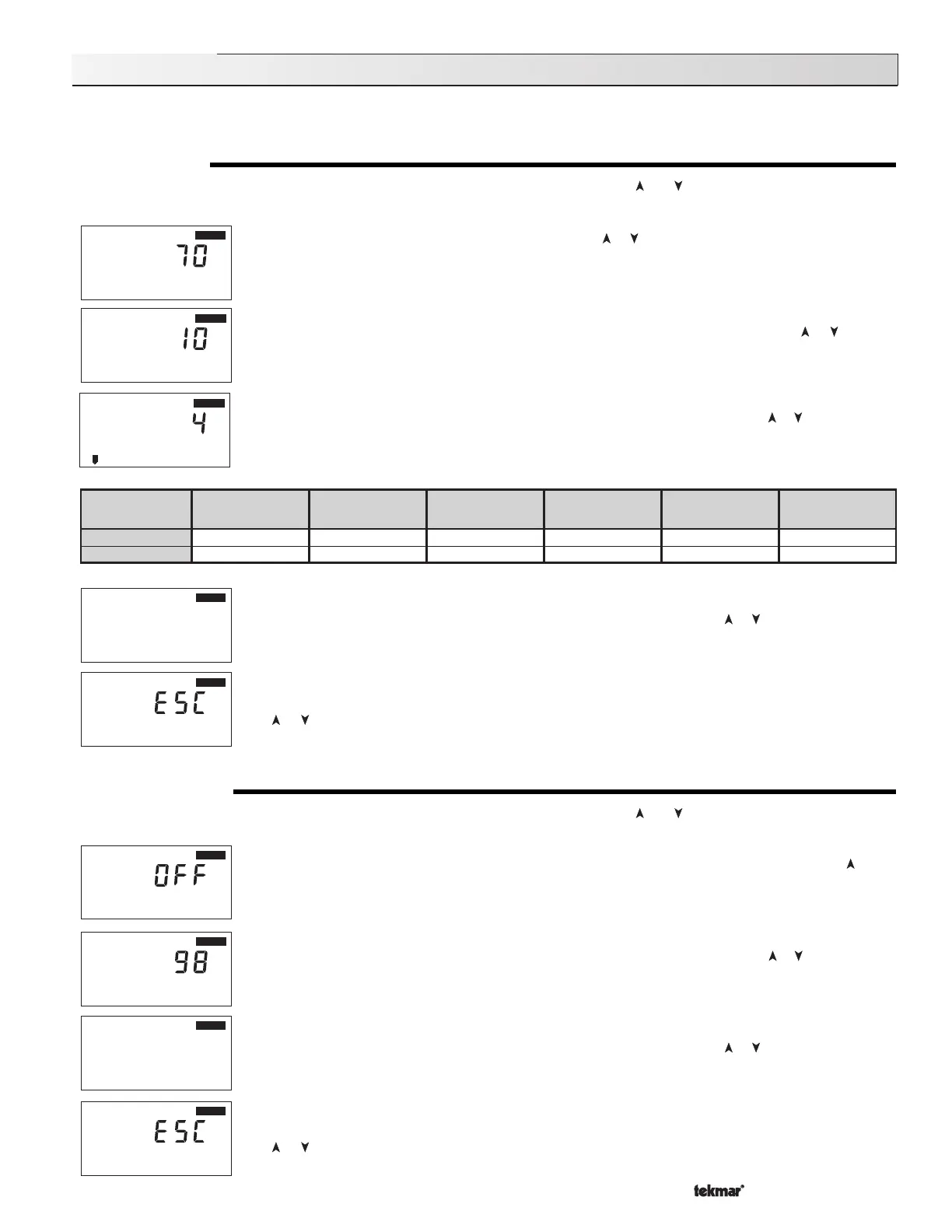

Quick Setup
The quick setup can be used for both outdoor reset and setpoint operation. To enter the installer programming mode, set the
Advanced /
Installer
DIP switch to
Installer
.
OUTDOOR RESET
Access the ADJUST menu by pressing and holding simultaneously for 1 second, the
Item
, and buttons. The display will now show
the word ADJUST in the top right corner.
The ROOM adjustment is the first item displayed. Use the
or
button to set the ROOM temperature. The
ROOM setting is set to the desired room air temperature.
Note:
To increase or decrease space temperature, only adjust the ROOM setting.
Press and release the
Item
button to advance to the OUTDR DSGN adjustment. Use the
or
button to
set the outdoor design temperature. The OUTDR DSGN setting is set to the typical coldest temperature of
the year.
Press and release the
Item
button to advance to the
Terminal Unit
adjustment. Use the
or
button to select
the desired terminal unit. The terminal unit number corresponds to the type of terminal that is being used.
The table below lists the terminal units and their default values.
Press and release the
Item
button to advance to the units adjustment. Use the
or
button to set the scale
to °F or °C.
To exit the ADJUST menu, press and release the
Item
button to advance to the ESC item. Then either press
the
or
button, or leave the buttons alone for 20 seconds.
SETPOINT CONTROL
Access the ADJUST menu by pressing and holding simultaneously for 1 second, the
Item
, and buttons. The display will now show
the word ADJUST in the top right corner.
Press and release the
Item
button to advance to the OUTDR DSGN adjustment. Press and hold the
button
until OFF is displayed.
Press and release the
Item
button to advance to the MIX TARGET adjustment. Use the
or
button to select
the desired temperature. The MIX TARGET setting is set to the desired setpoint supply temperature.
Press and release the
Item
button to advance to the units adjustment. Use the
or
button to set the scale
to °F or °C.
To exit the ADJUST menu, press and release the
Item
button to advance to the ESC item. Then either press
the
or
button, or leave the buttons alone for 20 seconds..
150°F (66°C)
170°F (77°C)
MIX DSGN
MIX MAX
Terminal Unit
190°F (88°C)
210°F (99°C)
High Mass Radiant
(1)
120°F (49°C)
140°F (60°C)
Low Mass Radiant
(2)
Fancoil
(3)
140°F (60°C)
160°F (71°C)
Fin-tube Convector
(4)
180°F (82°C)
200°F (93°C)
Radiator
(5)
160°F (71°C)
180°F (82°C)
Baseboard
(6)
ADJUST
ROOM
°
F
ADJUST
DSGN
OUTDR
°
F
ADJUST
°
F
ADJUST
ADJUST
DSGN
OUTDR
ADJUST
TARGET
MIX
°
F
ADJUST
°
F
ADJUST
Terminal Unit
ADJUST
