Tekmar Mixing Control 356 User Manual

Copyright © D 356 -05/003 of 16
Sequence of Operation
Section A
General Operation
Page 3-4
Section B
Mixing
Page 4-6
Section C
Boiler Operation
Page 7
Section A — General Operation
POWERING UP THE CONTROL
When the Mixing Control 356 is powered up, the control displays the control type number in the LCD for 2 seconds. Next, the software
version is displayed for 2 seconds. Finally, the control enters into the normal operating mode and the LCD defaults to displaying the
current outdoor air temperature.

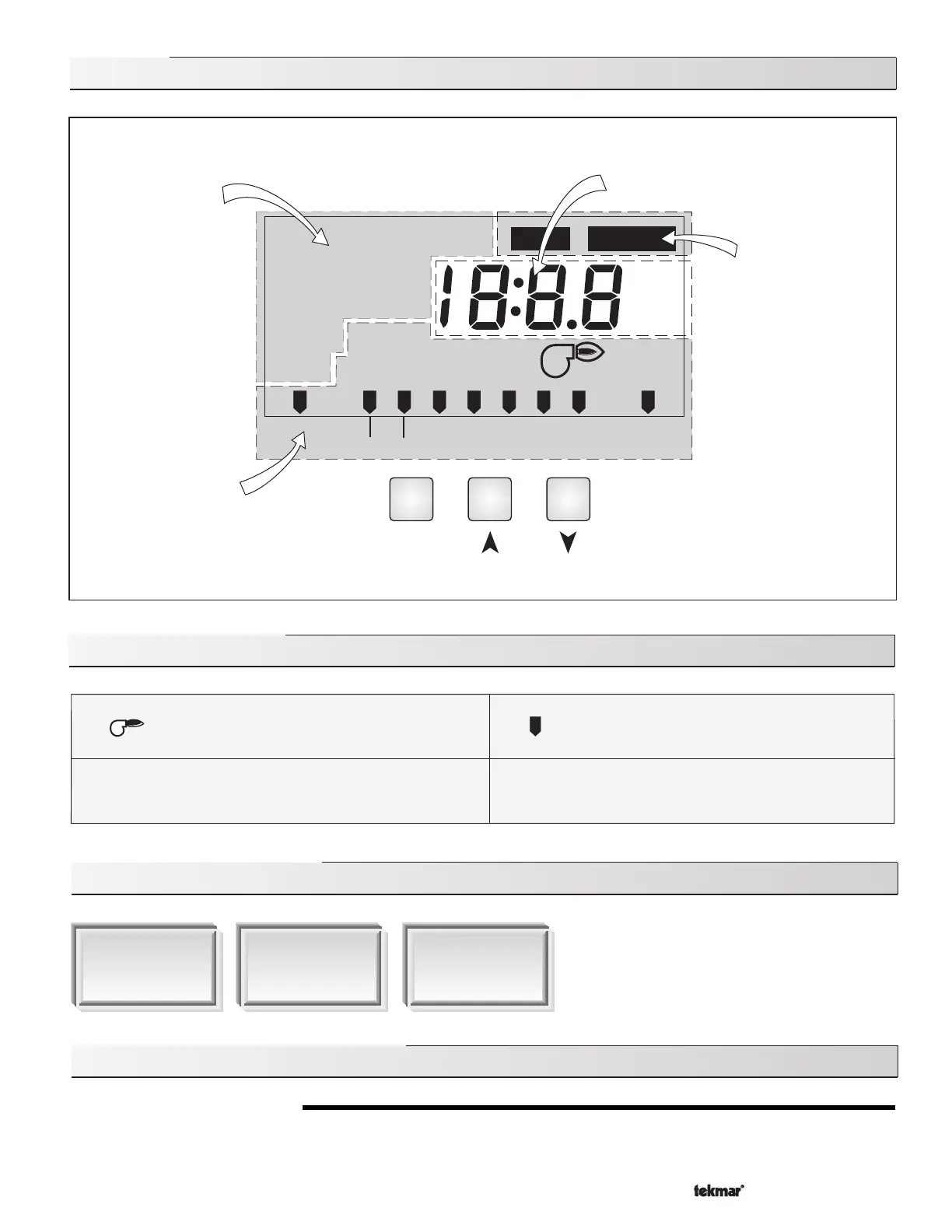

Item
{
Terminal Unit
VIEW ADJUST
TARGET
INDR
DSGN
DIFF
BOIL
MIX
OUTDR
ROOM WWSD
° F
° C
MAXMIN
Return
Mixing
Demand
Supply
% Out
10 30 50 70 90
Number Field
Displays the current value
of the selected item
Buttons
Selects Menus, Items
and adjusts settings
Menu Field
Displays the
current menu
Status Field
Displays the
current status of
the control’s
inputs, outputs
and operation
Item Field
Displays an
abbreviated
name of the
selected item
Symbol Description
Display
Burner
Displays when the boiler relay is turned on.
° F, ° C
°F, °C
Displays the unit of measure that all of the
temperatures are to be displayed in the control.
Pointer
Displays the control operation as indicated by
the text.
