Copyright © D 356 -05/00 12 of 16
The desired room air temperature.
(OUTDR DSGN ≠ OFF)
35 to 100°F
(2 to 38°C)
B2
Mixing setpoint temperature.
(OUTDR DSGN = OFF)
OFF, 60 to 200°F
(OFF, 16 to 93°C)
B2
The design outdoor air temperature used in the
heat loss calculation for the heating system. For
setpoint operation, set the OUTDR DSGN to OFF.
-60 to 32°F, OFF
(51 to 0°C, OFF)
B2
Section
Advanced
Installer
Display Description Range
Actual
Setting
The type of terminal units that are being used in the
heating system.
(OUTDR DSGN ≠ OFF)
B2
1 (High Mass Radi-
ant), 2 (Low Mass
Radiant), 3 (Fancoil),
4 (Fin-tube Convec-
tor), 5 (Radiator),
6 (Baseboard)
Current outdoor air temperature as measured by the outdoor
sensor. This is also the default display for the control.
(OUTDR DSGN ≠ OFF)
-67 to 149°F
(-55 to 65°C)
Section
Advanced
Installer
Display Description Range
Current mixed supply water temperature as measured by the
mixing sensor.
14 to 266°F
(-10 to 130°C)
B3
Current boiler temperature as measured by the boiler sensor.
(Boiler sensor is present)
14 to 266°F
(-10 to 130°C)
Target mixed supply is the temperature the control is currently
trying to maintain at the mixing sensor.
---, 14 to 266°F
(---, -10 to 130°C)
B1
B2
B3

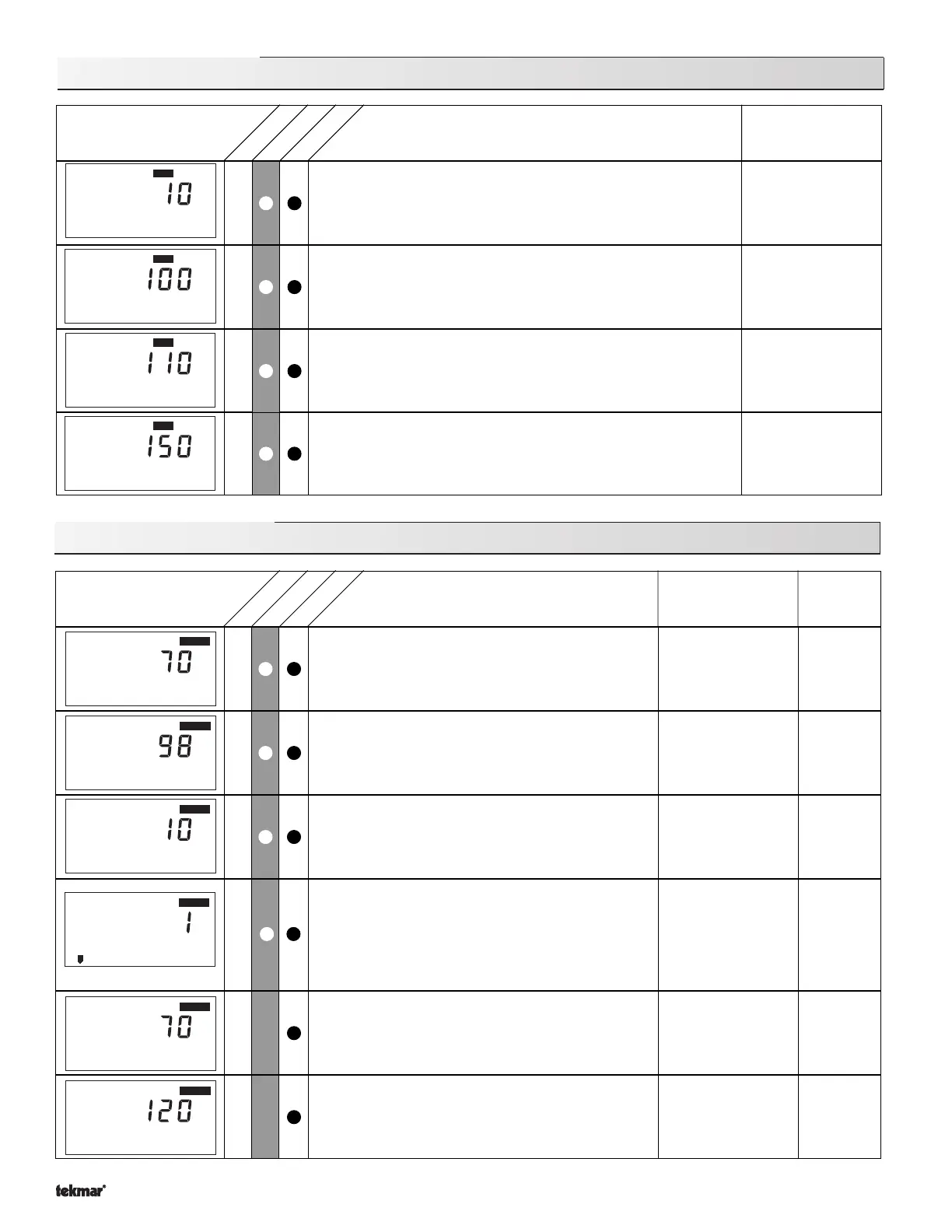

View Menu (1 of 1)
Adjust Menu (1 of 2)
ADJUST
ROOM
°
F
ADJUST
TARGET
MIX
°
F
ADJUST
DSGN
OUTDR
°
F
Terminal Unit
ADJUST
The design indoor air temperature used in the heat
loss calculation for the heating system.
(OUTDR DSGN ≠ OFF)
35 to 100°F
(2 to 38°C)
B3
The design supply water temperature used in the
heat loss calculation for the heating system.
(OUTDR DSGN ≠ OFF)
70 to 220°F
(21 to 104°C)
B3
ADJUST
INDR
MIX
°
F
ADJUST
DSGN
MIX
°
F
VIEW
BOIL
°
F
VIEW
OUTDR
°
F
VIEW
MIX
°
F
VIEW
TARGET
MIX
°
F
To Next Page
