Nova 3000 Woodlathe Specifications

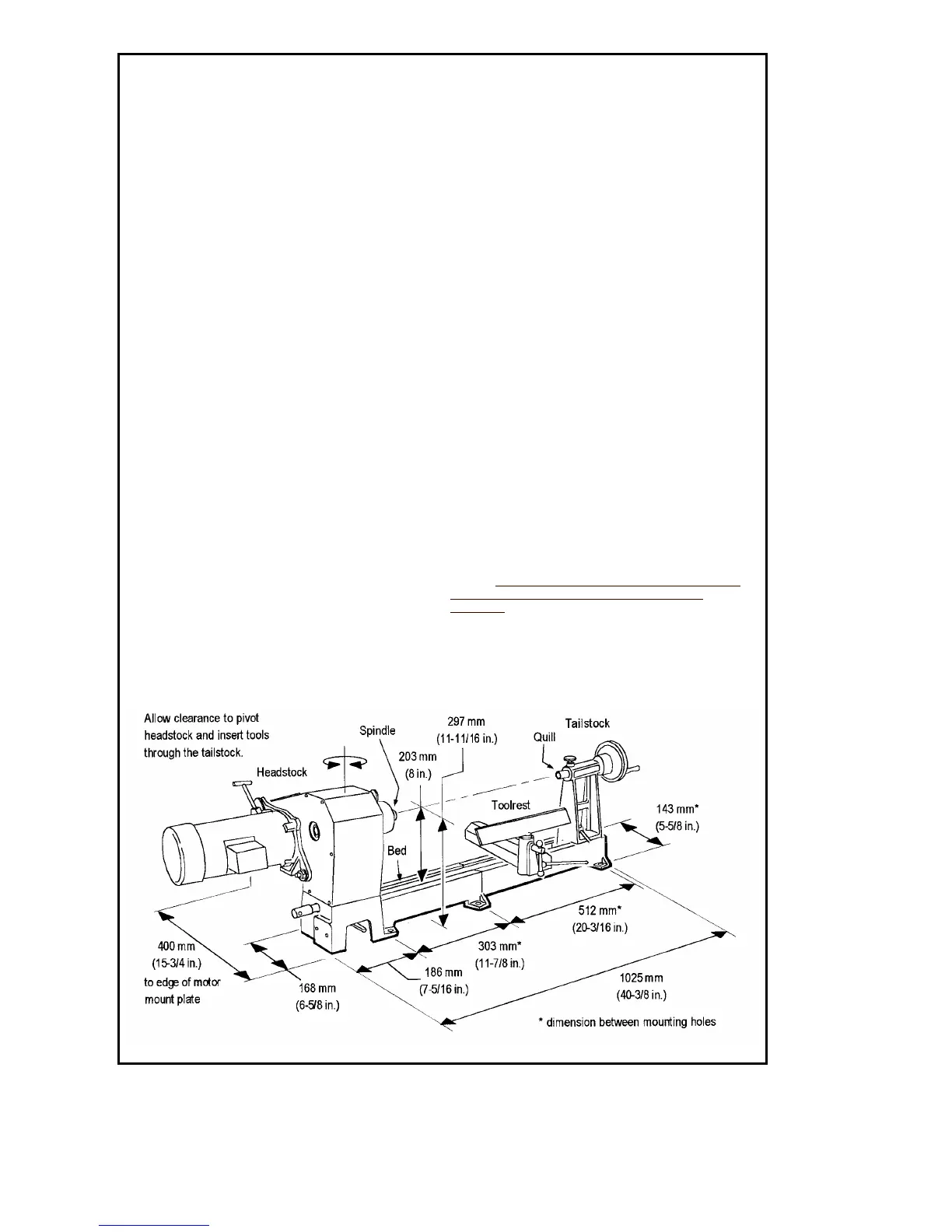

Size: see drawing below.
Weight: 66 kg (145 lb) (without motor)
Swing Over Bed: 400 mm (16 in.)
Distance Between Centers: 600 mm (24 in.);
expandable in 510 mm (20 in.) units with
add-on Bed sections.
Swing Outboard: 740 mm (29 in.) with headstock
at 90° with outrigger toolrest.
Headstock:
Spindle Thread: M30 x 3.5 RH
(1)
or
1-1/4 x 8 TPI RH
(2)
M33 x 3.5 RH
(3)
Headstock Bore: No. 2 Morse Taper (#2 MT)
Headstock Swivel: 0 to 360 degrees, with
detents at 0, 22.5, 45, and 90 degrees.
Outboard End Internal Thread: M20 x 1.5 LH
Spindle Index: 24 divisions (every 15 degrees)
Tailstock:
Tailstock Bore: No. 2 Morse Taper (#2 MT)
Quill Travel: 85 mm (3-1/4 in.)
Hole Through Tailstock: 15 mm (9/16 in.)
Toolrest:
Length: 300 mm (12 in.)
Shaft Diameter: 25.4 mm (1 in.)
Motor Options (Recommended):
AC Motor, 1 HP, 1425 rpm, 50 Hz
(1)
AC Motor, 1 HP, 1725 rpm, 60 Hz
(2)
In North
America, the 1 HP AC motor is included with the
lathe.
DC Motor, 1 HP, 0-1750 rpm, 50-60 Hz
(2)
Speeds (rpm): 8-step motor pulley
178, 300, 570, 850, 1200, 1800, 2400, 3000
(1)
215, 360, 690, 1030, 1450, 2180, 2900, 3630
(2)
Standard Equipment:
300 mm (12 in.) Toolrest, Poly Vee Drive Belt,
Motor Pulley, Motor Mounting Kit, 150 mm (6 in.)
Faceplate (Not all countries, see notes below), 1
HP AC Motor (Not all countries, see notes below)
Spur Center, and Live Center
Nova 3000 Bowl Lathe Version:
Specifically for bowl turning, does not include bed
extension, tailstock, and centers.
Optional Accessories:
Foot Mounting Rail Kit
Nova Chuck System
SuperNova Chuck System
Faceplates: 80 mm (3 in.), 150 mm (6 in.)
Vacuum Faceplate
Toolrest: 100 mm (4 in.)
Bowl Toolrest
Outrigger Toolrest Unit
Handwheel
Vacuum Coupler
Revolving Center System
Ornamental Turner
Hiturn Sharpening Center
Notes:
(1) Applicable to New Zealand, Australia, and South
Africa.
(2) Applicable to United States, Canada, and UK.
(3) Applicable to Europe
L Note: Standard equipment varies from country to
country. In the USA, the 150mm (6") faceplate and 1 HP
AC Motor are included with the lathe as standard
equipment. In other markets, the motor and the faceplate
are optional equipment. Check with your reseller if you are
unsure.
