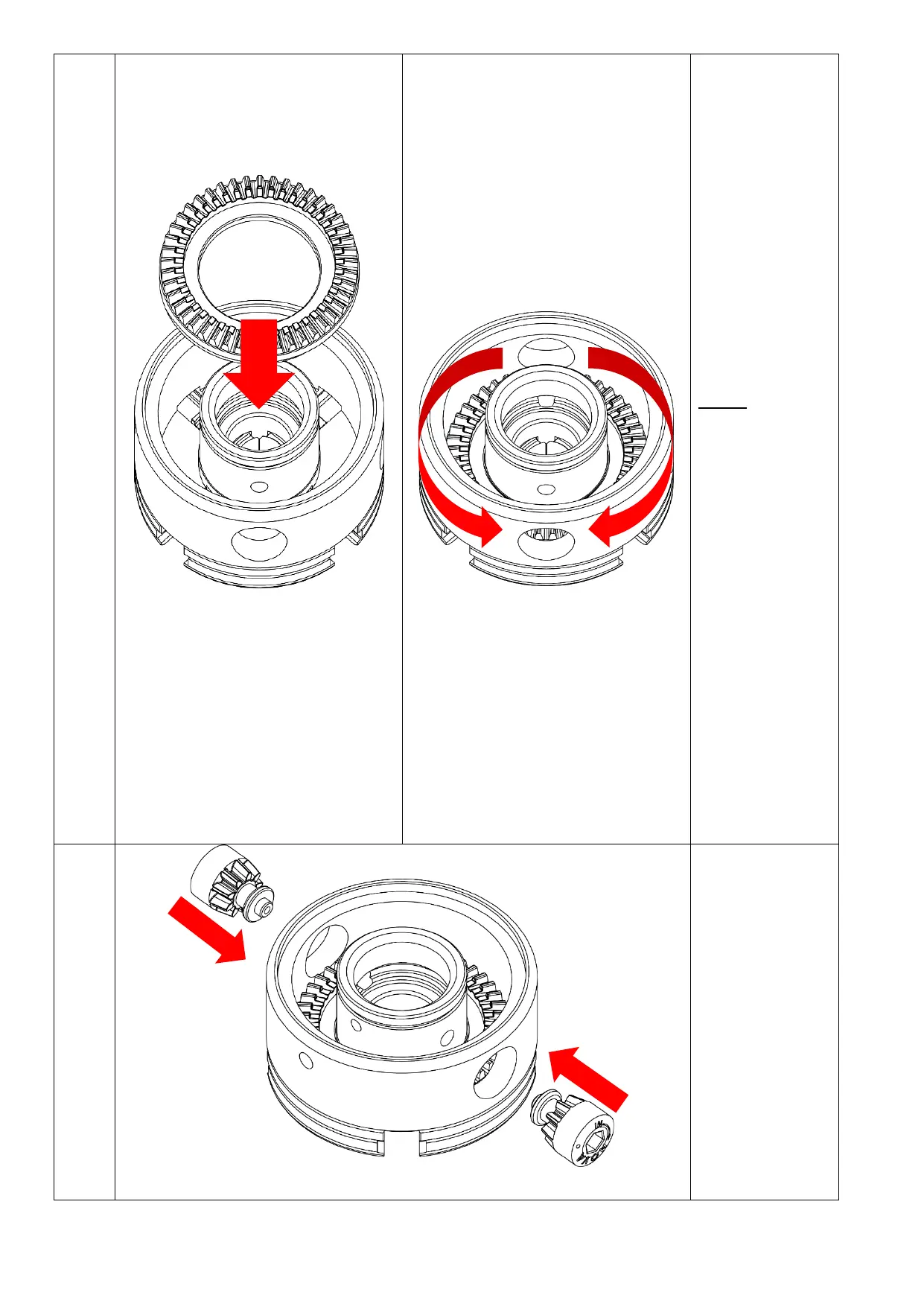

4.
Slide in the
scroll ring into
the chuck body
as shown in the
image.
Carefully turn
the scroll ring
until the scroll
teeth engages
with the jaw
slides.
Note:
The scroll ring
will fall into
place when it
engages with
the jaw slide
teeth.
If the scroll ring
is not falling
into place,
check to see if
the jaw slides
are all aligned
properly in the
centre.
5.
Insert the
pinion gears
into the chuck
body.
