5.

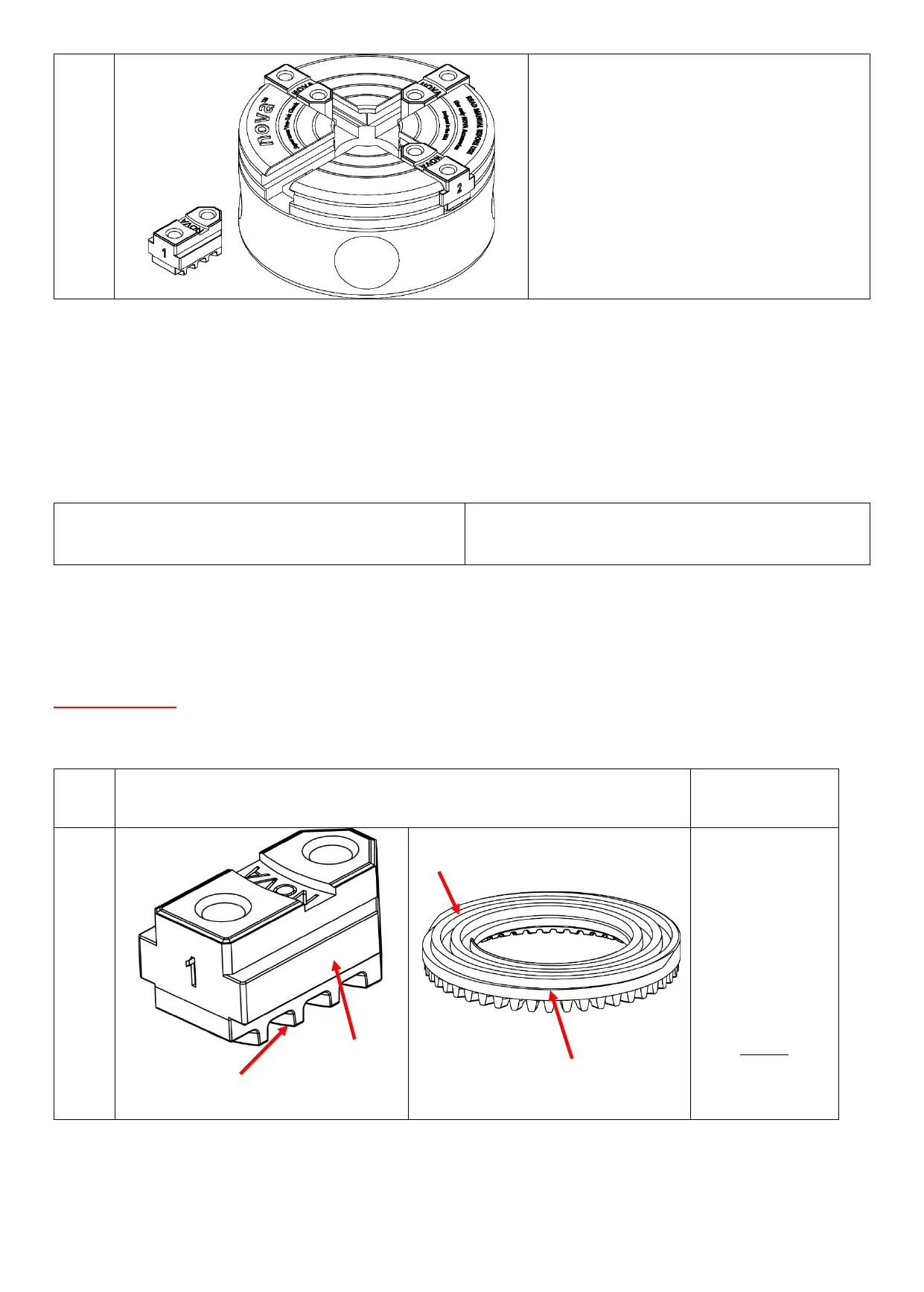

Slide out all of the jaw slides by
hand to complete the
disassembly process.
Parts to clean and inspect on the disassembled chuck
Following list indicates the area of parts where cleaning and inspection is required
when the chuck operation becomes difficult:
• Jaw slideways (Chuck body)
•
Jaw slides
• Scroll ring spiral teeth
•
Gear teeth (Scroll ring, hex pinion)
Reassembly of the SUPERNOVA
2
Pro-Tek chuck
Safety Note:
Remember to wear safety glasses when dealing with circlips as it poses a potential
risk of flying upwards when it slips off from the circlip pliers.
Step
No.
Image Description
1.
Apply grease
onto surfaces
that contacts
each other
which is
indicated in the
image.
Note:
Carry out the
assembly
