Tekno RC EB48 2.0 - Page 3

TKR5145B
TKR5144

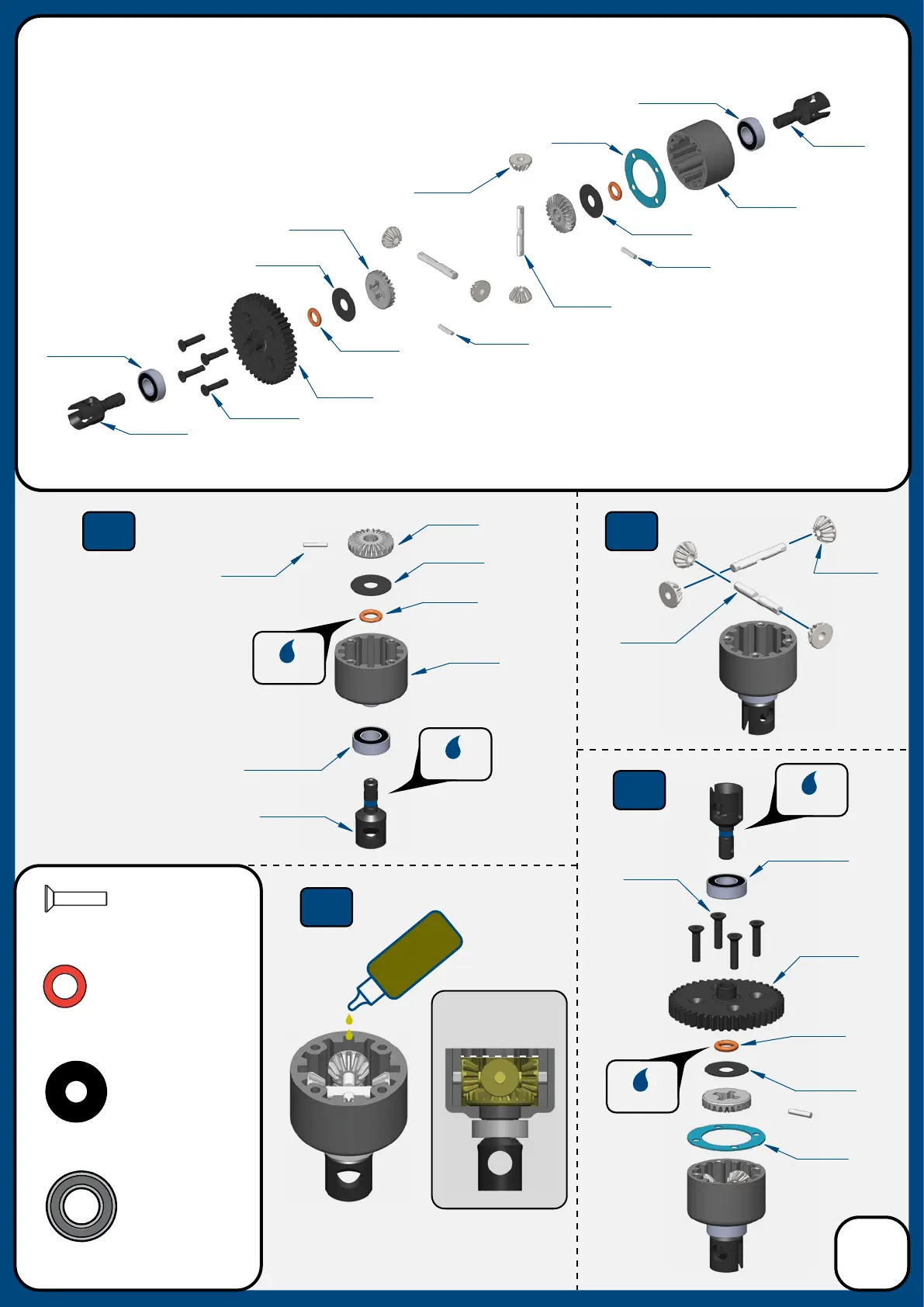

Bag A
Center Dierential
(overview)
TKR1325
X 4pcs
TKR9149
TKR9150
TKR5145B
TKR9114
TKR5144
TKR5145B
TKR9143
Step
A-2
Step
A-4
Fill Level
Step
A-3
Step
A-1
TKR5144
Dierential 0-rings
x2
TKR5145B
Dierential Shims (6x17mm)
x2
TKR1325
M3x14mm Flat Head Screw
x4
TKRBB08165
TKR9115
TKR9150
TKR9149
Di
Oil
TKR9237
TKR9237
TKR9143
TKRBB08165
TKRBB08165
TKR9114
TKR9114
TKR9150
TKR5145B
TKR9150
TKR1325 x4
TKR9114
TKR5144
TKR9115
TKR9114
3
Grease
Grease
Grease
Grease
Fill with #10,000 CST oil to
1mm below full
DO NOT OVER FILL
Note: Apply grease to the
groove in the outdrive.
Note: Apply grease to the
recess inside TKR9115,
where the o-ring is placed
as well as the o-ring itself.
TKR9114
TKRBB08165
TKRBB08165
Ball Bearing (8x16x5)
x2
*TKR5114XB
(option)
*TKR5114XB
(option)
*TKR9117
(option)
*TKR9117
(option)
*TKR5114XB
(option)
