Tekno RC EB48 2.0 - Page 4

TKR5145B
TKR5144

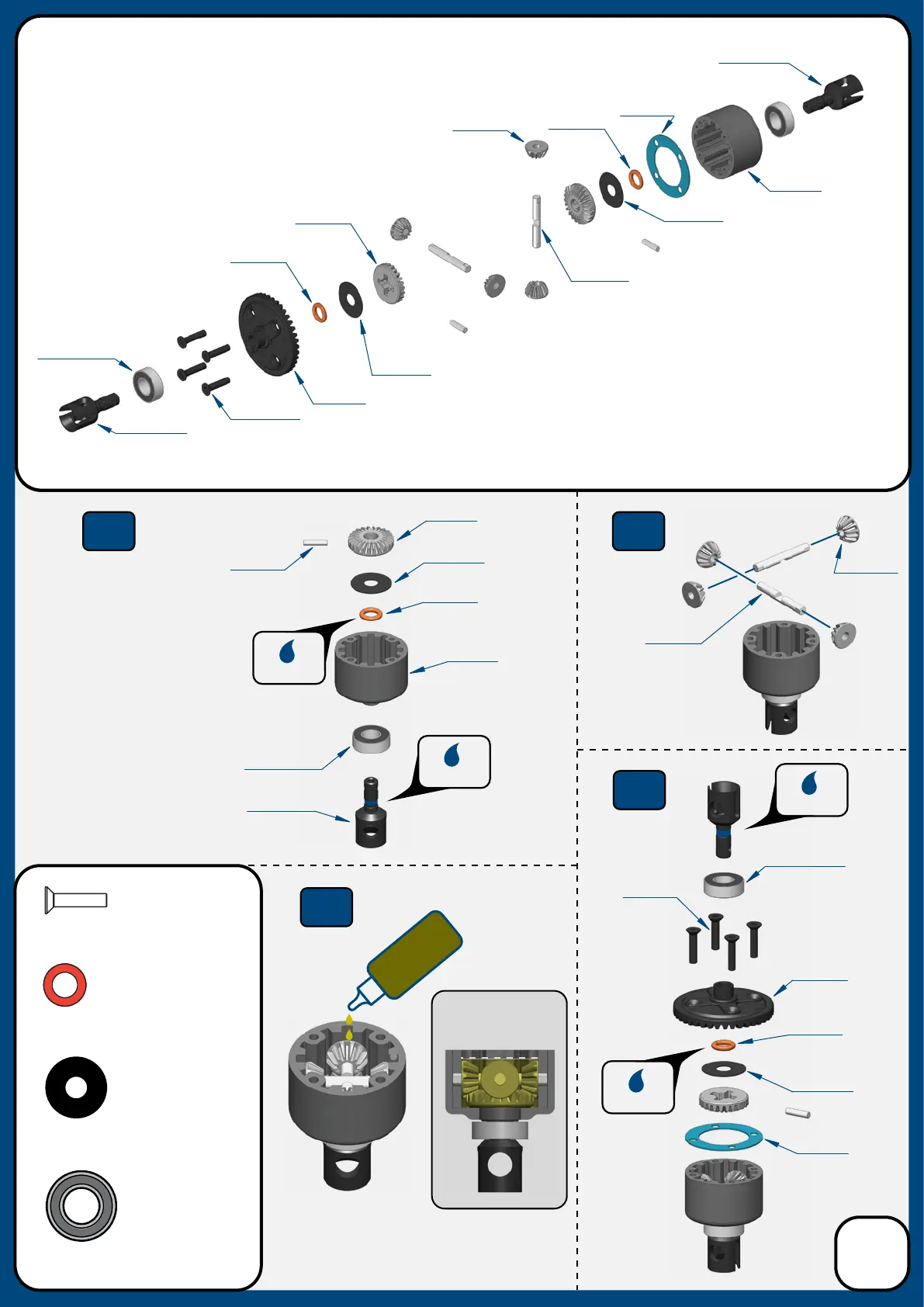

Bag B
Front and Rear Dierential
(overview)
TKR1325
X 4pcs
TKR9149
TKR9150
TKR5145B
TKR9115
TKR5144
TKR5145B
TKR9143
Step
B-2
Step
B-4
Fill Level
Step
B-3
Step
B-1
TKR5144
Dierential 0-rings
x4
TKR5145B
Dierential Shims (6x17mm)
x4
TKR1325
M3x14mm Flat Head Screw
x8
TKRBB08165
TKR9115
TKR9150
TKR9149
Di
Oil
TKR9151
TKR9114
TKR9143
TKR9150
TKRBB08165
TKR9114
*TKR5114XB
(option)
*TKR5114XB
(option)
*TKR5114XB
(option)
TKR5145B
TKR9150
TKR5144
TKR5144
TKR9151
TKR1325 x4
4
Grease
Grease
Grease
Grease
Fill with #10,000 CST oil FRONT
Fill with #7,000 CST oil REAR
to 1mm below full
DO NOT OVER FILL
Note: Apply grease to the
groove in the outdrive.
Note: Apply grease to the
recess inside TKR9115,
where the o-ring is placed
as well as the o-ring itself.
TKR9114
TKRBB08165
TKR9114
TKRBB08165
Ball Bearing (8x16x5)
x4
Repeat for rear diRepeat for rear di
Repeat for rear di
Repeat for rear di
