Tektronix 2213 Instruction Manual

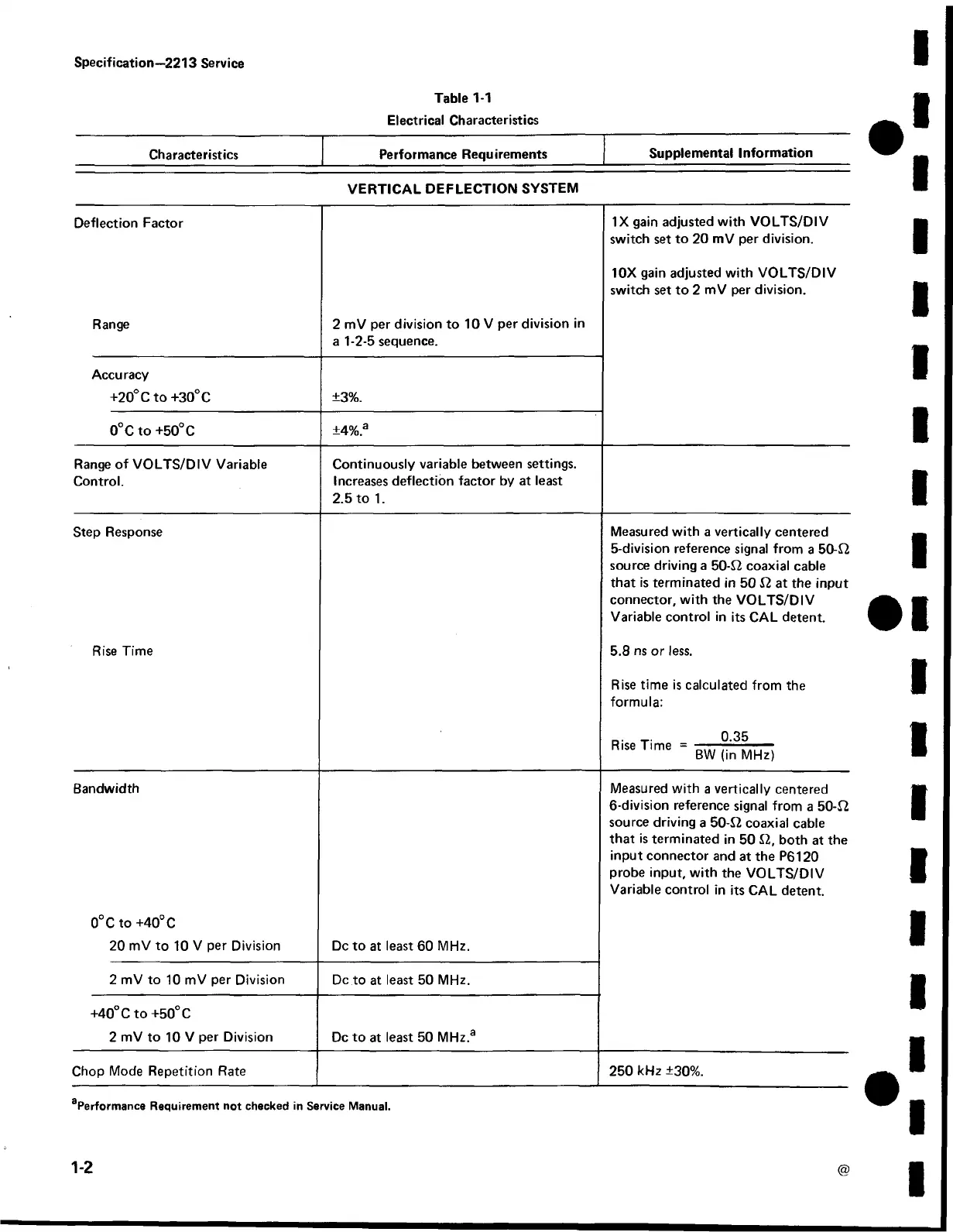

Specification—2213 Service
Table 1-1
Electrical Characteristics
Characteristics
Performance Requirements
Supplemental Information
VERTICAL DEFLECTION SYSTEM
Deflection Factor
Range
2 mV per division to 10 V per division in
a 1-2-5 sequence.
IX gain adjusted with VOLTS/DIV
switch set to 20 mV per division.
10X gain adjusted with VOLTS/DIV
switch set to 2 mV per division.
Accu racy
+20° C to +30° C
±3%.
0°C to +50°C
±4%.a
Range of VOLTS/DIV Variable
Control.
Continuously variable between settings.
Increases deflection factor by at least
2.5 to 1.
Step Response
Rise Time
Measured with a vertically centered
5-division reference signal from a 50-12
source driving a 50-12 coaxial cable
that is terminated in 50 12 at the input
connector, with the VOLTS/DIV
Variable control in its CAL detent.
5.8 ns or less.
Rise time is calculated from the
formula:
- 0.35
Rise Time = ■—ttt:—
BW (in MHz)
Bandwidth
0°C to +40° C
20 mV to 10 V per Division Dc to at least 60 MHz.
Measured with a vertically centered
6-division reference signal from a 50-12
source driving a 50-12 coaxial cable
that is terminated in 50 12, both at the
input connector and at the P6120
probe input, with the VOLTS/DIV
Variable control in its CAL detent.
2 mV to 10 mV per Division
Dc to at least 50 MHz.
+40° C to +50° C
2 mV to 10 V per Division
Dc to at least 50 MHz.a
Chop Mode Repetition Rate
250 kHz ±30%.
Performance Requirement not checked in Service Manual.
1-2
