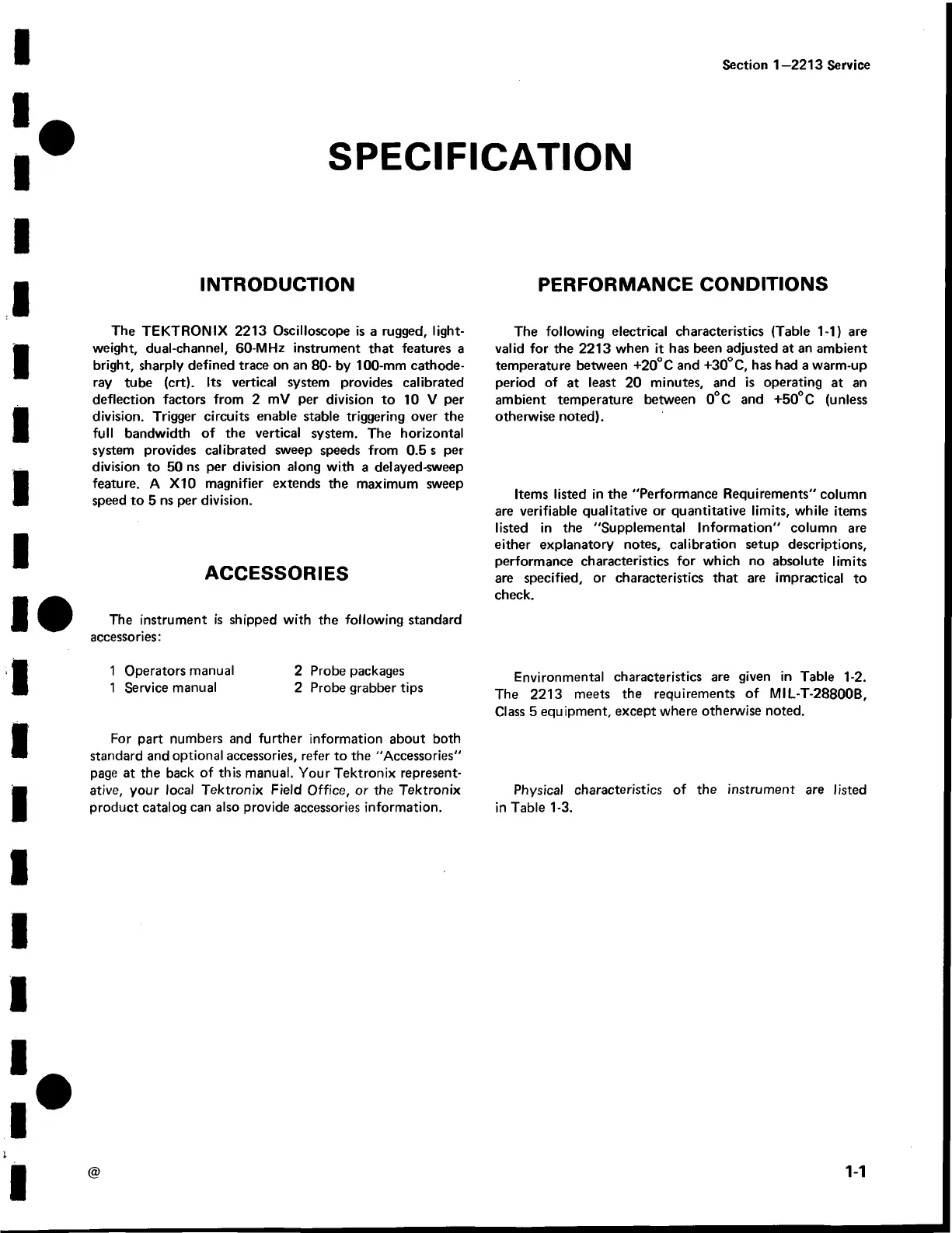

Section 1—2213 Service
SPECIFICATION
INTRODUCTION
The TEKTRONIX 2213 Oscilloscope is a rugged, light
weight, dual-channel, 60-MHz instrument that features a
bright, sharply defined trace on an 80- by 100-mm cathode-
ray tube (crt). Its vertical system provides calibrated
deflection factors from 2 mV per division to 10 V per
division. Trigger circuits enable stable triggering over the
full bandwidth of the vertical system. The horizontal
system provides calibrated sweep speeds from 0.5 s per
division to 50 ns per division along with a delayed-sweep
feature. A X10 magnifier extends the maximum sweep
speed to 5 ns per division.
ACCESSORIES
The instrument is shipped with the following standard
accessories:
1 Operators manual 2 Probe packages
1 Service manual 2 Probe grabber tips
For part numbers and further information about both
standard and optional accessories, refer to the “ Accessories"
page at the back of this manual. Your Tektronix represent
ative, your local Tektronix Field Office, or the Tektronix
product catalog can also provide accessories information.
PERFORMANCE CONDITIONS
The following electrical characteristics (Table 1-1) are
valid for the 2213 when it has been adjusted at an ambient
temperature between +20°C and +30°C, has had a warm-up
period of at least 20 minutes, and is operating at an
ambient temperature between 0°C and +50°C (unless
otherwise noted).
Items listed in the "Performance Requirements" column
are verifiable qualitative or quantitative limits, while items
listed in the "Supplemental Information" column are
either explanatory notes, calibration setup descriptions,
performance characteristics for which no absolute limits
are specified, or characteristics that are impractical to
check.
Environmental characteristics are given in Table 1-2.
The 2213 meets the requirements of MIL-T-28800B,
Class 5 equipment, except where otherwise noted.
Physical characteristics of the instrument are listed
in Table 1-3.
@
1-1
