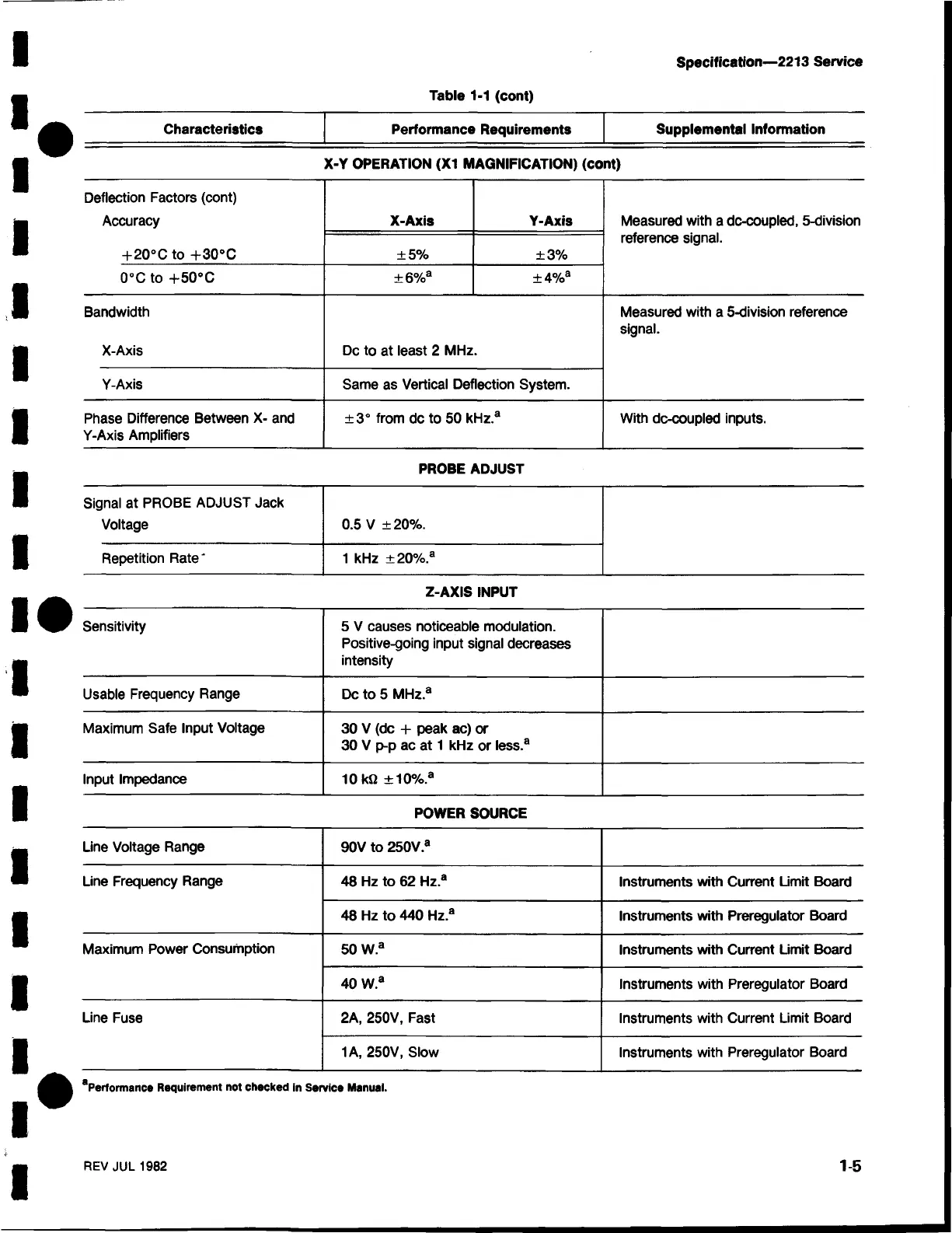

Table 1-1 (cont)
Specification— 2213 Service
Characteristics Performance Requirements Supplemental Information
X-Y OPERATION (X I MAGNIFICATION) (cont)
Deflection Factors (cont)
Accuracy
+20°C to +30°C
X-Axis Y-Axis Measured with a dc-coupled, 5-division
reference signal.
±5%
±3%
0°C to +50°C ±6% a ±4% a
Bandwidth
X-Axis Dc to at least 2 MHz.
Measured with a 5-division reference
signal.
Y-Axis Same as Vertical Deflection System.
Phase Difference Between X- and
Y-Axis Amplifiers
± 3 ° from dc to 50 kHz.®
With dc-coupled inputs.
PROBE ADJUST
Signal at PROBE ADJUST Jack
Voltage
0.5 V ±20% .
Repetition Rate'
1 kHz ±20% .a
Z-AXIS INPUT
Sensitivity 5 V causes noticeable modulation.
Positive-going input signal decreases
intensity
Usable Frequency Range Dc to 5 MHz.a
Maximum Safe Input Voltage
30 V (dc + peak ac) or
30 V p-p ac at 1 kHz or less.®
Input Impedance 10 kQ ±10%.®
POWER SOURCE
Line Voltage Range 90V to 250V.®
Line Frequency Range 48 Hz to 62 Hz.®
Instruments with Current Limit Board
48 Hz to 440 Hz.® Instruments with Preregulator Board
Maximum Power Consumption
50 W.®
Instruments with Current Limit Board
40 W.® Instruments with Preregulator Board
Line Fuse 2A, 250V, Fast Instruments with Current Limit Board
1 A, 250V, Slow
Instruments with Preregulator Board
Performance Requirement not checked in Service Manual.
REV JUL 1982
1-5
