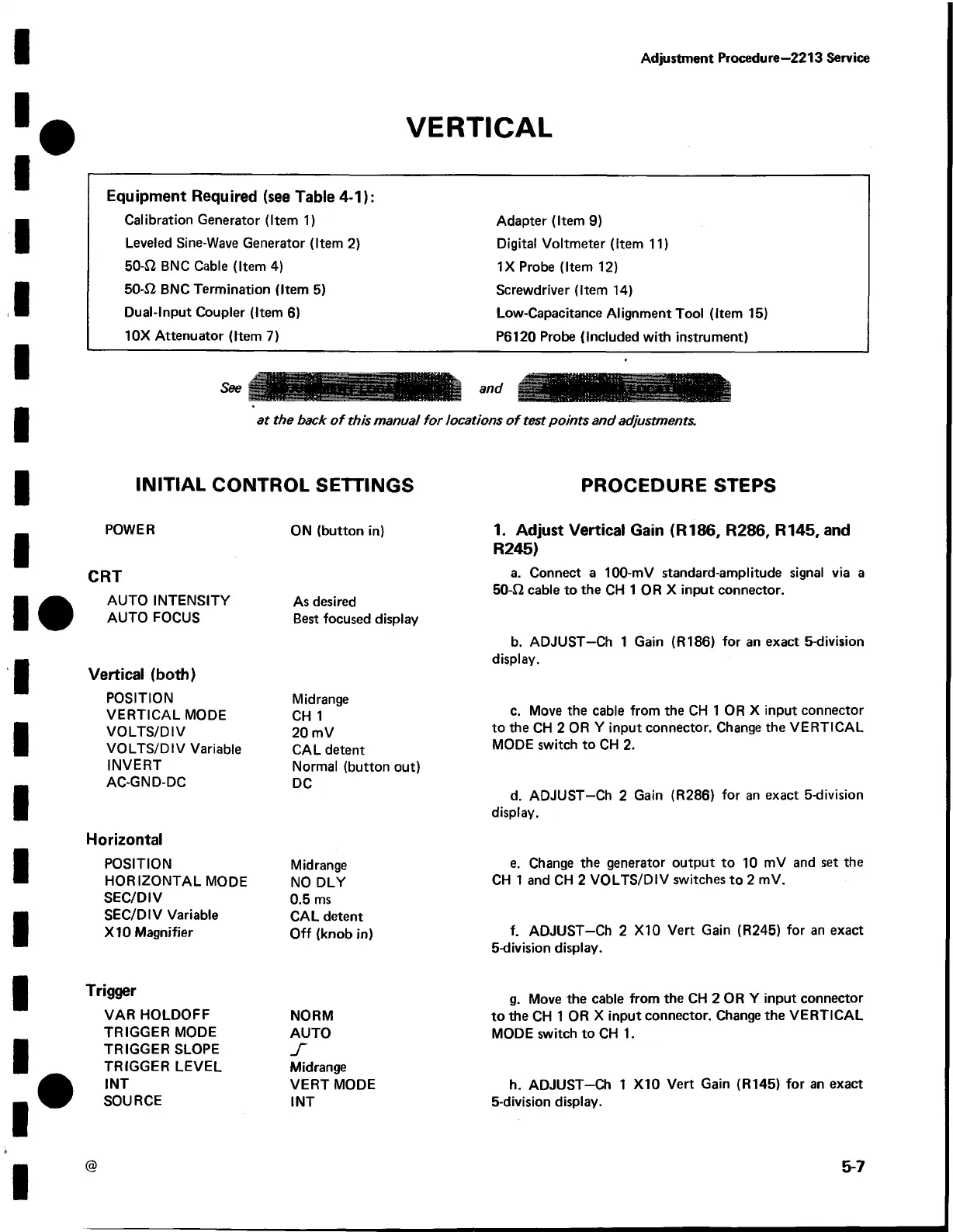

Adjustment Procedure—2213 Service
VERTICAL
Equipment Required (see Table 4-1):
Calibration Generator (Item 1)
Adapter (Item 9)
Leveled Sine-Wave Generator (Item 2)
Digital Voltmeter (Item 11)
50-J2 BNC Cable (Item 4)
IX Probe (Item 12)
5(M2 BNC Termination (Item 5)
Screwdriver (Item 14)
Dual-Input Coupler (Item 6)
Low-Capacitance Alignment Tool (Item 15)
10X Attenuator (Item 7)
P6120 Probe (Included with instrument)
a t the back o f th is manual fo r locations o f test po in ts and adjustments.
INITIAL CONTROL SETTINGS
PROCEDURE STEPS
POWER
CRT
AUTO INTENSITY
AUTO FOCUS
Vertical (both)
POSITION
VERTICAL MODE
VOLTS/DIV
VOLTS/DIV Variable
INVERT
AC-GND-DC
Horizontal
POSITION
HORIZONTAL MODE
SEC/DIV
SEC/DIV Variable
X10 Magnifier
ON (button in)
As desired
Best focused display
Midrange
CH 1
20 mV
CAL detent
Normal (button out)
DC
Midrange
NO DLY
0.5 ms
CAL detent
Off (knob in)
1. Adjust Vertical Gain (R1 86, R 286, R 145, and
R245)
a. Connect a 100-mV standard-amplitude signal via a
50-ft cable to the CH 1 OR X input connector.
b. ADJUST—Ch 1 Gain (R186) for an exact 5-division
display.
c. Move the cable from the CH 1 OR X input connector
to the CH 2 OR Y input connector. Change the VERTICAL
MODE switch to CH 2.
d. ADJUST—Ch 2 Gain (R286) for an exact 5-division
display.
e. Change the generator output to 10 mV and set the
CH 1 and CH 2 VOLTS/DIV switches to 2 mV.
f. ADJUST—Ch 2 X10 Vert Gain (R245) for an exact
5-division display.
Trigger
VAR HOLDOFF
TRIGGER MODE
TRIGGER SLOPE
TRIGGER LEVEL
I NT
SOURCE
NORM
AUTO
J
Midrange
VERT MODE
I NT
g. Move the cable from the CH 2 OR Y input connector
to the CH 1 OR X input connector. Change the VERTICAL
MODE switch to CH 1.
h. ADJUST—Ch 1 X10 Vert Gain (R145) for an exact
5-division display.
@ 5-7
