Tektronix 2213 Instruction Manual

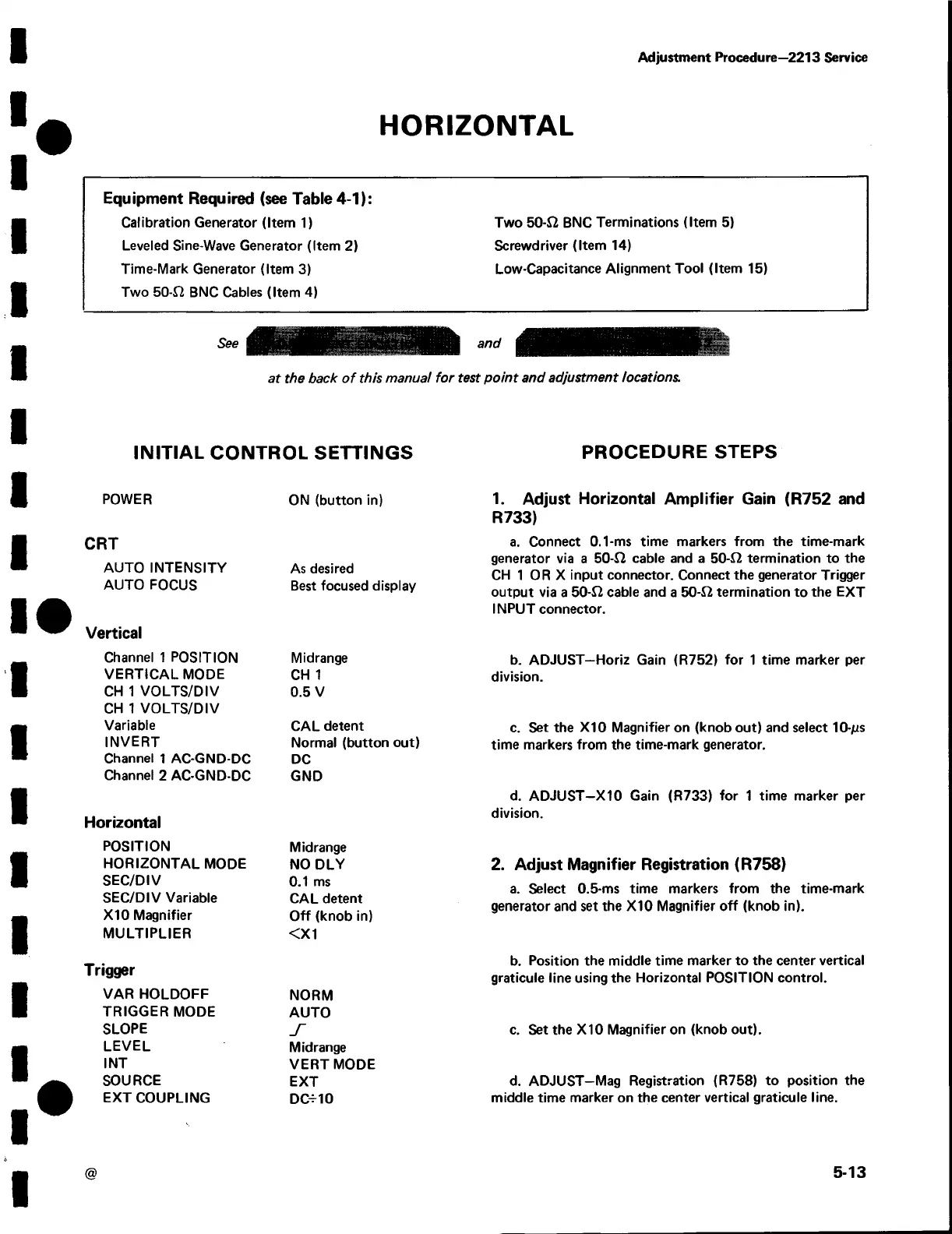

Adjustment Procedure—2213 Service
HORIZONTAL
Equipment Required (see Table 4-1):
Calibration Generator (Item 1) Two 50-fl BNC Terminations (Item 5)
Leveled Sine-Wave Generator (Item 2) Screwdriver (Item 14)
Time-Mark Generator (Item 3)
Low-Capacitance Alignment Tool (Item 15)
Two 50-ft BNC Cables (Item 4)
a t the back o f this manual fo r test p o in t and adjustm ent locations.
INITIAL CONTROL SETTINGS
PROCEDURE STEPS
POWER
CRT
AUTO INTENSITY
AUTO FOCUS
ON (button in)
As desired
Best focused display
Vertical
Channel 1 POSITION
VERTICAL MODE
CH 1 VOLTS/DIV
CH 1 VOLTS/DIV
Variable
INVERT
Channel 1 AC-GND-DC
Channel 2 AC-GND-DC
Midrange
CH 1
0.5 V
CAL detent
Normal (button out)
DC
GND
Horizontal
POSITION
Midrange
HORIZONTAL MODE
NO DLY
SEC/DIV
0.1 ms
SEC/DIV Variable
CAL detent
X10 Magnifier
Off (knob in)
MULTIPLIER
<X1
igger
VAR HOLDOFF
NORM
TRIGGER MODE
AUTO
SLOPE
J~
LEVEL
Midrange
INT
VERT MODE
SOURCE
EXT
EXT COUPLING
DC-MO
1. Adjust Horizontal Am plifier Gain (R 75 2 and
R733)
a. Connect 0.1-ms time markers from the time-mark
generator via a 50-0 cable and a 50-0 termination to the
CH 1 OR X input connector. Connect the generator Trigger
output via a 50-0 cable and a 50-0 termination to the EXT
INPUT connector.
b. ADJUST—Horiz Gain (R752) for 1 time marker per
division.
c. Set the X10 Magnifier on (knob out) and select 10-/is
time markers from the time-mark generator.
d. ADJUST—X10 Gain (R733) for 1 time marker per
division.
2. Adjust Magnifier Registration (R 758)
a. Select 0.5-ms time markers from the time-mark
generator and set the X10 Magnifier off (knob in).
b. Position the middle time marker to the center vertical
graticule line using the Horizontal POSITION control.
c. Set the X10 Magnifier on (knob out).
d. ADJUST—Mag Registration (R758) to position the
middle time marker on the center vertical graticule line.
@
5-13
