Maintenance—2213 Service

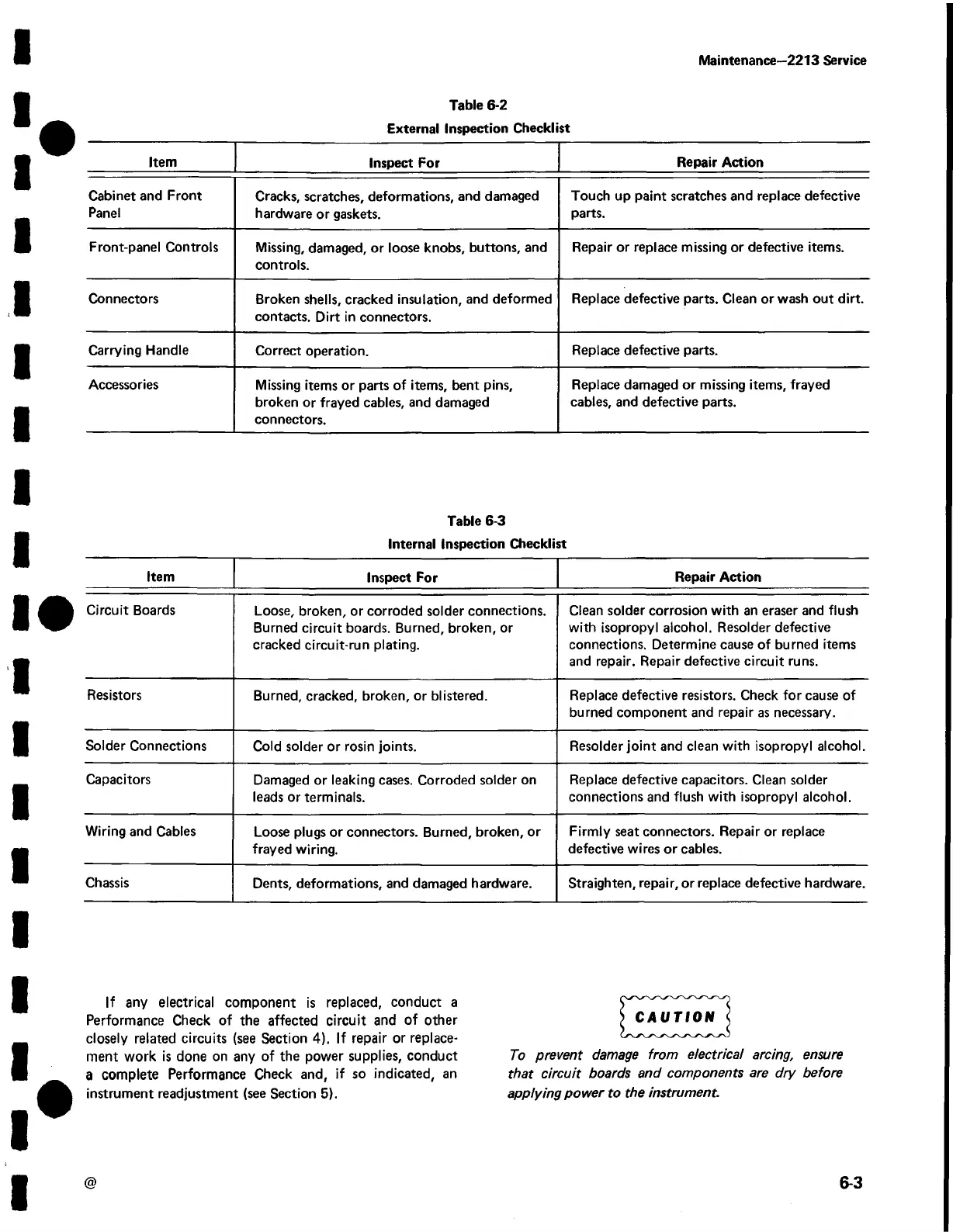

Table 6-2
External Inspection Checklist
Item
Inspect For
Repair Action
Cabinet and Front
Panel
Cracks, scratches, deformations, and damaged
hardware or gaskets.
Touch up paint scratches and replace defective
parts.
Front-panel Controls
Missing, damaged, or loose knobs, buttons, and
controls.
Repair or replace missing or defective items.
Connectors
Broken shells, cracked insulation, and deformed
contacts. Dirt in connectors.
Replace defective parts. Clean or wash out dirt.
Carrying Handle
Correct operation.
Replace defective parts.
Accessories
Missing items or parts of items, bent pins,
broken or frayed cables, and damaged
connectors.
Replace damaged or missing items, frayed
cables, and defective parts.
Table 6-3
Internal Inspection Checklist
Item
Inspect For
Repair Action
Circuit Boards
Loose, broken, or corroded solder connections.
Burned circuit boards. Burned, broken, or
cracked circuit-run plating.
Clean solder corrosion with an eraser and flush
with isopropyl alcohol. Resolder defective
connections. Determine cause of burned items
and repair. Repair defective circuit runs.
Resistors
Burned, cracked, broken, or blistered.
Replace defective resistors. Check for cause of
burned component and repair as necessary.
Solder Connections
Cold solder or rosin joints.
Resolder joint and clean with isopropyl alcohol.
Capacitors
Damaged or leaking cases. Corroded solder on
leads or terminals.
Replace defective capacitors. Clean solder
connections and flush with isopropyl alcohol.
Wiring and Cables
Loose plugs or connectors. Burned, broken, or
frayed wiring.
Firmly seat connectors. Repair or replace
defective wires or cables.
Chassis
Dents, deformations, and damaged hardware.
Straighten, repair, or replace defective hardware.
If any electrical component is replaced, conduct a
Performance Check of the affected circuit and of other
closely related circuits (see Section 4). If repair or replace
ment work is done on any of the power supplies, conduct
a complete Performance Check and, if so indicated, an
instrument readjustment (see Section 5).
To prevent damage from electrical arcing, ensure
that circuit boards and components are dry before
applying power to the instrument.
@
6-3
