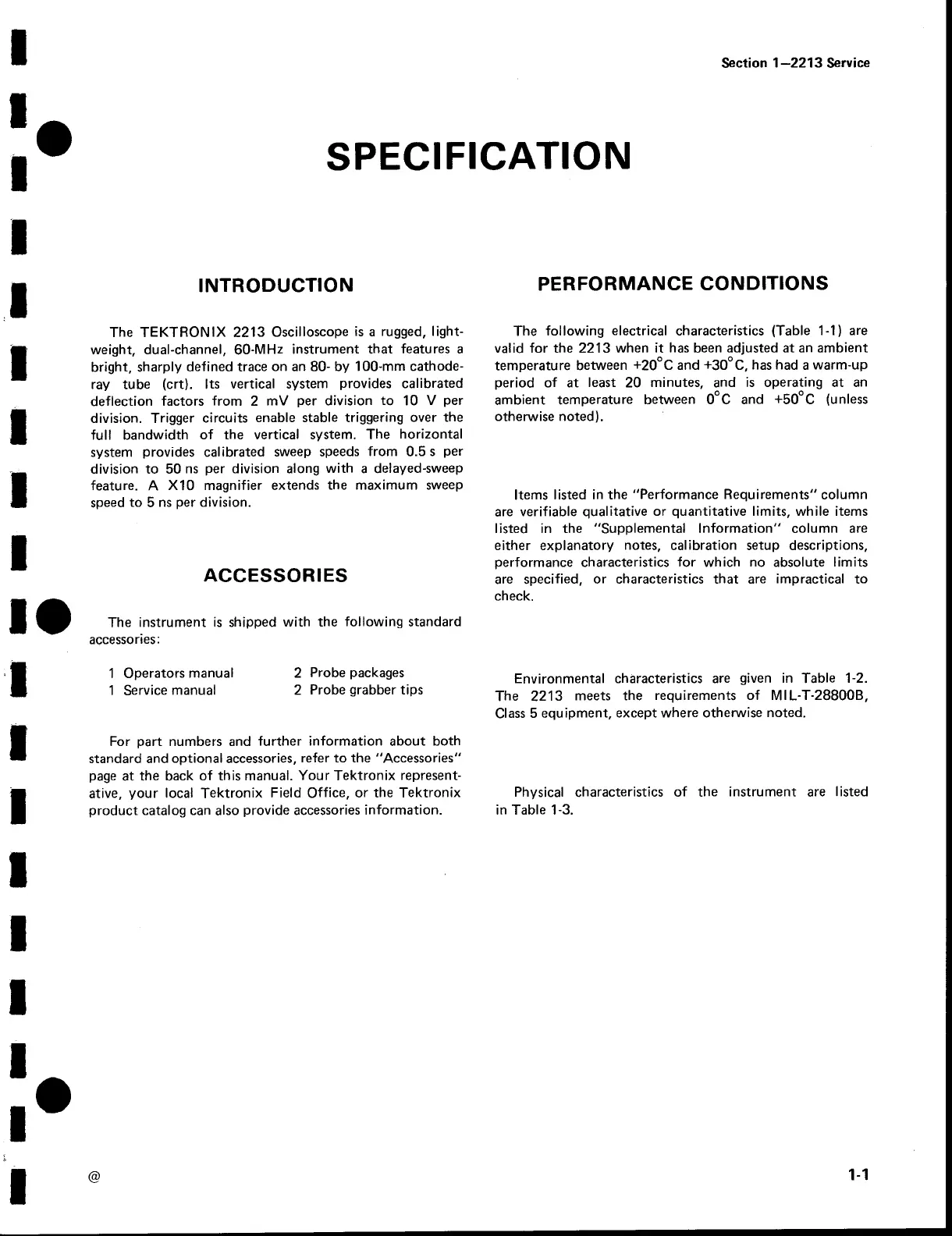

I N T R OD U CTIO N
T he TEKTRONIX 2213 Oscilloscope
is α rugged, light-
weight, d ual-channel, 60-MHz instrument that features α
bright, sharply defined trace on an 80- by 100-mm cathode-
ray tube (crt) . Its vertical system p rovi d es
calibrate d
d eflection factors from 2 mV p er division to 10
V per
d ivision . Trigger circuits
enable stable triggering over the
full bandwidth of
the
vertical system
. The h orizontal
system provid es calibrate
d sweep speeds from 0 .5s p er
division to 50 n s per d ivision along with α delaye d -swee p
feature . Α Χ 10 magnifier exten d s the maximum swee
p
s pee d to 5 ns per d ivision .
ACC E SSO R I E S
T he
instrument
is ship p ed
with t he following stand ar d
accessories :
1 Operators manual

2 P robe p ackages
1

Service manual

2 P robe grabber tips
F or p art numbers and further information about both
stan d ar d and optional accessories,
refer to the "Accessories"
page at the back of this manual . Your Tektronix represent-
ative, your local Tektronix F iel d Office, or the
Tektronix
prod uct catalog can also provi de accessories information .
S PE CI
F ICATIO N
Section 1-2213 Service
PERF O RM A N C E CO N DITIO N S
T he following electrical characteristics (Table 1-1) are
valid for the 2213 when it h as been adjuste d at an ambient
temperature between
+2 ρ° ς
and
+30
° C, h as had a warm-up
p erio d of at least 20 minutes, an d is operating at an
ambient temperature between 0 ° C and +50 ° C (unless
otherwise noted) .
Items listed in the "Performance Re q uirements" column
are verifiable q
ualitative or q uantitative limits, while items
listed in the
"Supplemental Information" column are
either ex p lanatory notes, calibration setu p d escri p tions,
performance characteristics for which no absolute limits
are specifie d , or characteristics that are impractical to
check .
E nvironmental
characteristics are given in Table 1-2 .
The 2213 meets the
requirements of
MIL-T-28800B,
Class 5 equip ment, except where
otherwise note d .
Physical characteristics of the instrument are listed
in Table 1-3 .
