Tektronix 2213 Service Manual

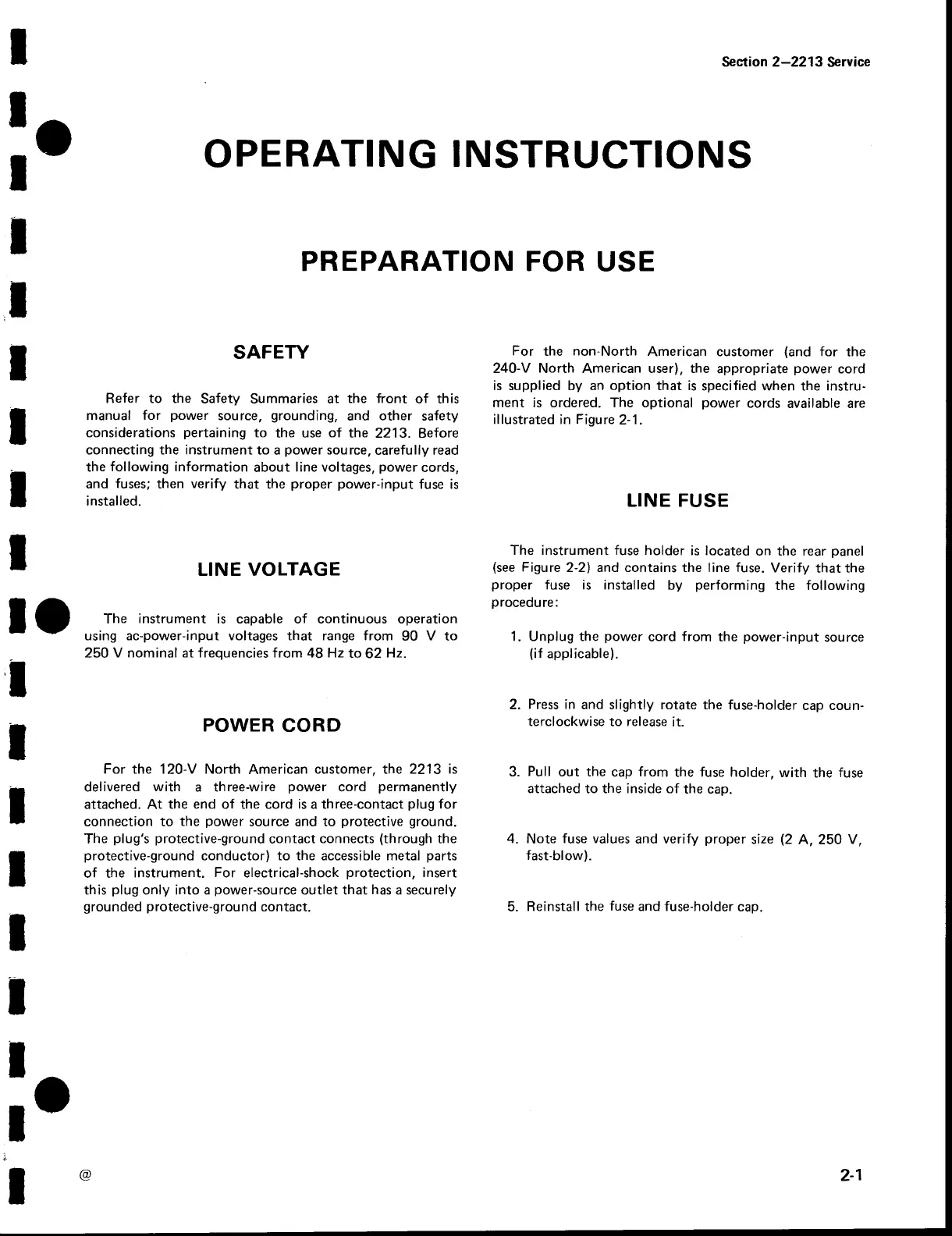

O
PER ATI N
G
I N
ST RU CTIO N S
SA FE TY
Refer to t he Safety Summaries at t h e front of t h is
ma n ual fo r power source, groun d ing,
and ot
her safety
consi d erations pertaining to t h e use of t h e
2213 .
Before
co n necti ng t he instrume n t to α p o w er sou rce, caref u lly read
t he followi n g informatio n ab out line voltages, p ower cord s,
a nd fuses ; t h en verify t h at t h e pro p er power-input fuse is
i n stalled .
L I NE V O L TAG E
T he instrument is cap able of continuous o p eration
using ac-power-input voltages t h at range from 90 V to
250 V nominal at fre qu encies from
48
Hz to
62
H z .
P
O
WER
CO
R D
For t h e 120- V N orth American customer, t he 2213 is
delivere d with α t h ree-wire power cor d perma nently
attac h ed . At t h e end of t he cor d is α t hr ee-contact p lug fo r
connection to t h e power source and to p r otective groun d .
T h e p lug's p rotective-gro u nd contact connects (t hrou g h t he
p rotective-groun d con du ctor) to t h e accessi b le metal p arts
of t h e instrument . For electrical-s h oc k p rotection, i n sert
t h is plug only into α power-source outlet t h at h as α securely
g r o u nde d p rotective-gro und co n tact .
PREP
A R ATIO
N F O
R
U S E
L
I
NE FU S E
5 .
Reinstall t h e fuse and f u se- h
ol d er cap .
Sectio
n
2-2213 Se r vice
For t he non-North America n customer (a nd for t he
240- V N orth America n user), t he a pp ropriate power cor d
is sup p lie d by an optio n t h at is s p ecifie d w hen t he instru-
me n t is or d ere d . T h e op tional p ower cor d s available are
illustrate d in
F
igure 2-1 .
T h e instr u ment
fuse
h
ol d er is locate d on t he rear p a n el
(see F ig u re
2-2)
an d contain
s
t he line
fuse . V erify t h at t h e
p
ro p er fuse is installe d by p erformi n g t he following
proce dure :
1 . U np lug t
h
e p ower cord from t he power-in put source
(if ap plicable) .
2 . P ress in an d slig h tly rotate t h
e fuse-
h
ol d er cap coun-
tercloc k wise to release it .
3 . Pull out t h e
cap
from
t
he
fuse h ol d er, with t he fuse
attac hed to t he insi d e of t he
cap .
4 . N ote fuse values and verify p ro p er size (2
Α , 250
V,
fast-blow) .
