Configure channel or waveform settings
Use the channel and waveform configuration menus to set parameters such as vertical scale and of
fset, coupling, bandwidth, probe
settings, deskew values, external attenuation values, and other settings.
Before you begin
Prerequisite: There is a channel or waveform badge in the Settings bar.
Procedure

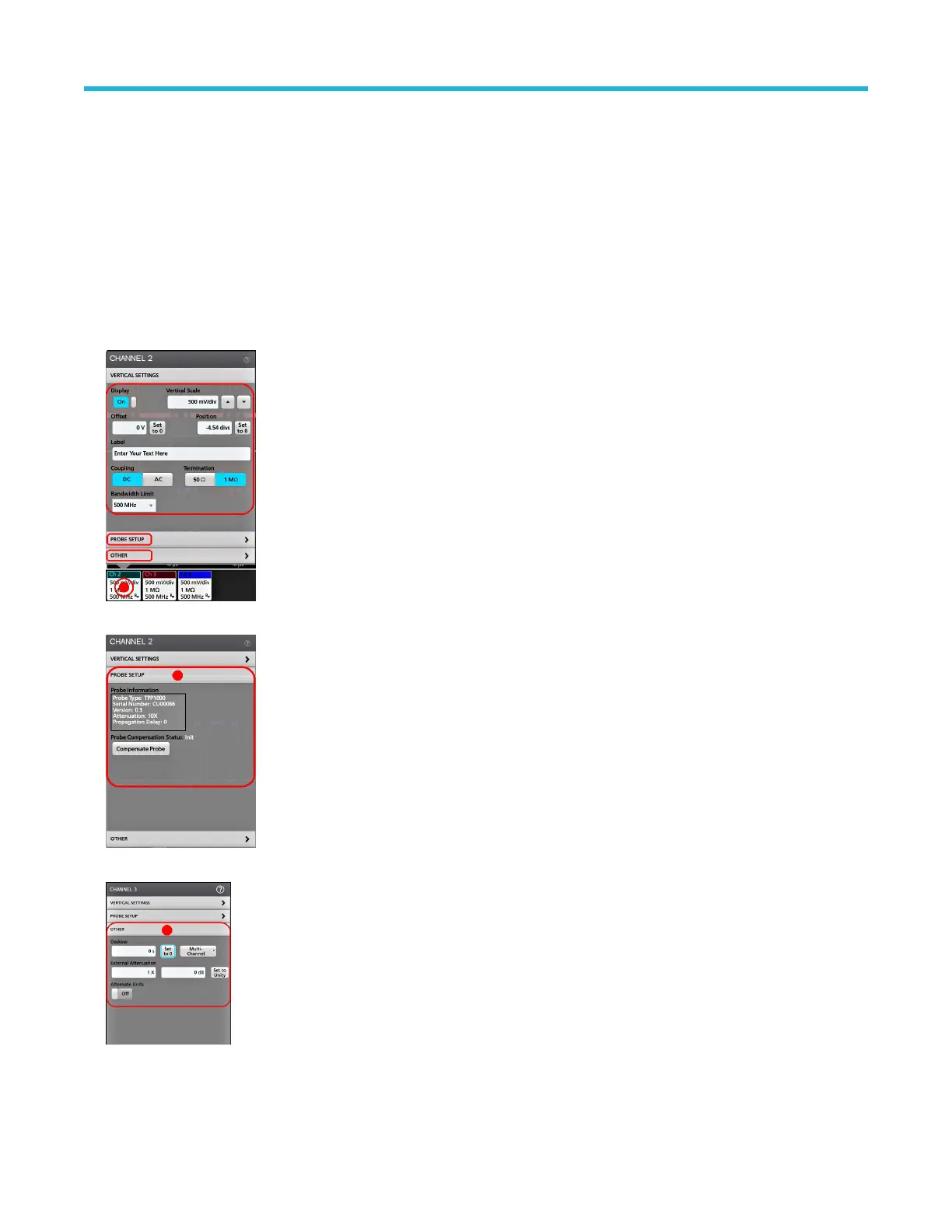

1. Double-tap a Channel or Waveform badge to open a configuration menu for that item.
For example, in a Channel menu, use the Vertical Settings panel to set basic probe parameters such as vertical scale and position,
offset, coupling, termination, and bandwidth limit. Available settings depend on the probe.
2. T
ap the Probe Setup panel to confirm probe settings and run configuration or compensation on supported probes.
3. T
ap the Other panel to set probe deskew, external attenuation, and alternate units parameters.
4. T
ap the Help icon on the menu title to open the help topic for more information.
5. Tap outside the menu to close the menu.
Operating basics
4 Series MSO MSO44, MSO46 Quick Start Manual 47
