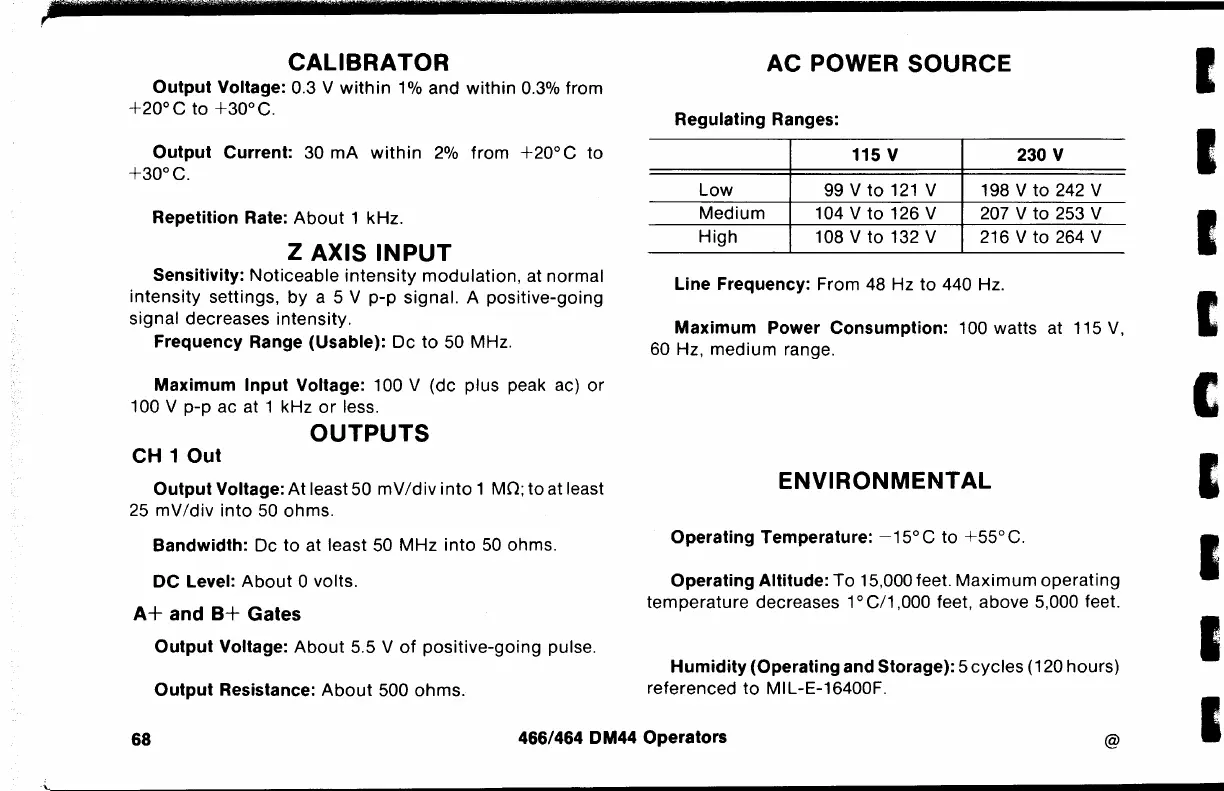

CALIBRATOR
Output Voltage: 0.3 V
within
1%
and
within
0.3% from
+20°
C
to
+30°
C.
Output Current: 30
mA
within
2%
from
+20°C
to
+30°C.
Repetition Rate:
About
1 kHz.
Z AXIS
INPUT
Sensitivity:
Noticeable
intensity
modulation,
at normal
intensity
settings,
by
a 5 V
p-p
signal. A positive-going
signal decreases intensity.
Frequency Range (Usable): De
to
50 MHz.
Maximum Input Voltage: 100 V (de plus peak ac)
or
100 V p-p ac at 1 kHz
or
less.
OUTPUTS
CH
1 Out
Output Voltage:
At
least 50
mV/div
into
1 MO;
to
at least
25
mV/div
into
50
ohms.
Bandwidth: De
to
at least
50
MHz
into
50
ohms.
DC
Level:
About
0 volts.
A+
and
B+
Gates
Output Voltage:
About
5.5 V
of
positive-going pulse.
Output Resistance:
About
500 ohms.
AC POWER SOURCE
Regulating Ranges:
115
v 230 v
Low
99 V
to
121
V
198 V
to
242 V
Medium
104 V
to
126 V 207 V
to
253 V
High
108 V
to
132 V 216 V
to
264 V
Line Frequency: From 48 Hz
to
440 Hz.
Maximum Power Consumption: 100 watts at 115
V,
60 Hz, medium range.
ENVIRONMENTAL
Operating Temperature:
-15°C
to
+55°C.
Operating Altitude:
To
15,000 feet.
Maximum
operating
temperature decreases 1° C/1,000 feet, above 5,000 feet.
Humidity (Operating and Storage): 5 cycles (120 hours)
referenced
to
MIL-E-16400F.
68
466/464 DM44 Operators
@
