Tektronix AFG1000 Series User Manual

Operating basics
40
AFG1000 Series Quick Start User Manual
Modulation waveform facts
and formulas
You can select an internal or external signal as an source.
You can select a modulation shape from the internal memory or USB memory
device.
You can only select sine, square, ramp, or arb as a carrier waveform.

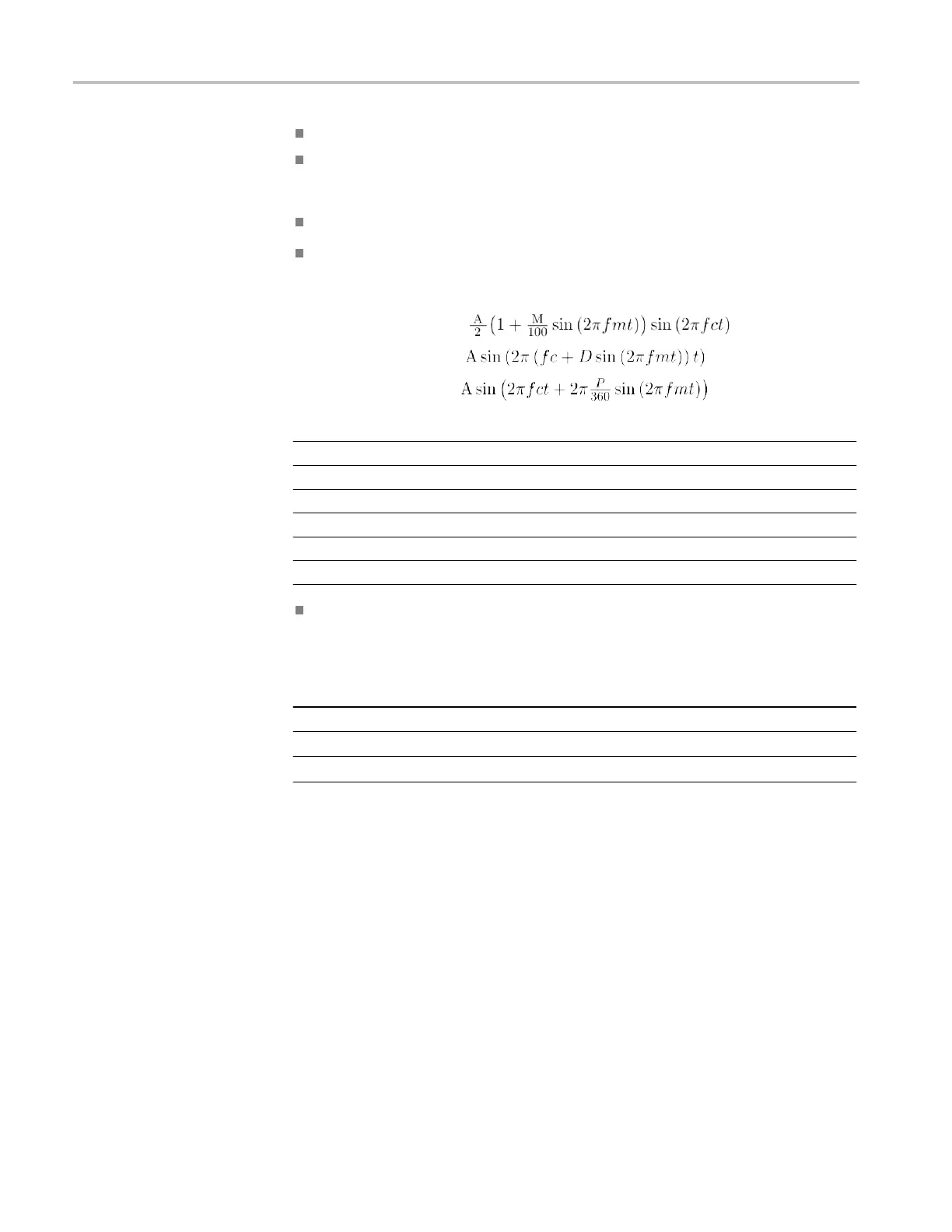

The following equations show the output amplitude of AM, FM, and PM
modulation (in this example, sine waveform is used for carrier waveform
and modulation waveform):
AM: Output(V
p-p
) =
FM: Output(V
p-p
) =
PM: Output(V
p-p
) =
Carrier amplitude A[V
p-p
]
Carrier frequency fc [Hz]
Modulation frequency fm [Hz]
Time t [sec]
AM Modulation depth M [%]
FM Deviation D [Hz]
PM Deviation P [degree]
The following table shows relationship between modulation depth and
maximum amplitude for AM modulation waveform (internal modulation
source is selected):
Depth Maximum amplitude
100% A (V
p-p
)
50% A (V
p-p
) * 0.75
0% A (V
p-p
) * 0.50
