STOP. The STOP notation at the left is accompanied by information you must
read to do the procedure properly.
■
The term "toolbar" refers to a row of buttons at the top of the display. The
term "menu bar" refers to a row of menus at the top of the display. You can
switch between toolbar and menu bar operating modes by using the menu at
the top right of the toolbar or menu bar. (See Figure 1: Toolbar and menu bar
(< 4 GHz models shown).)
■
Item numbers in the equipment required lists refer to the equipment. (See
Equipment required on page 116.)

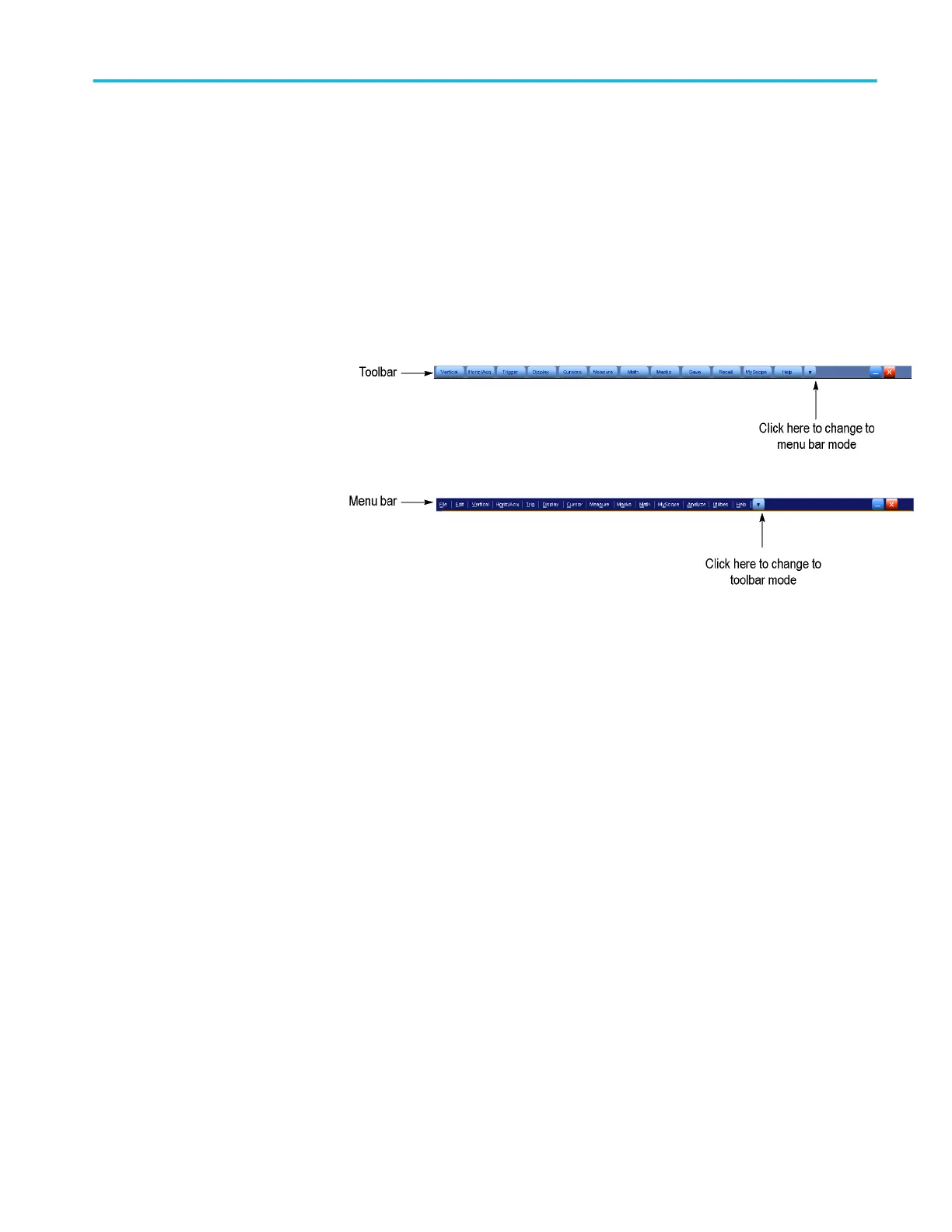

Figure 1: Toolbar and menu bar (< 4 GHz models shown)
■
The procedures assume you have connected a mouse to the instrument so you
can click on the screen controls. If you have not connected a mouse, you can
use the touch screen to operate the screen controls.
Performance verification (MSO/DPO70000C, MSO/DPO70000DX, and DPO7000C series)
MSO70000C/DX, DPO70000C/DX, DPO7000C, MSO5000/B, DPO5000/B Series 101
