3. Disconnect the hookup: Disconnect the equipment from the instrument.

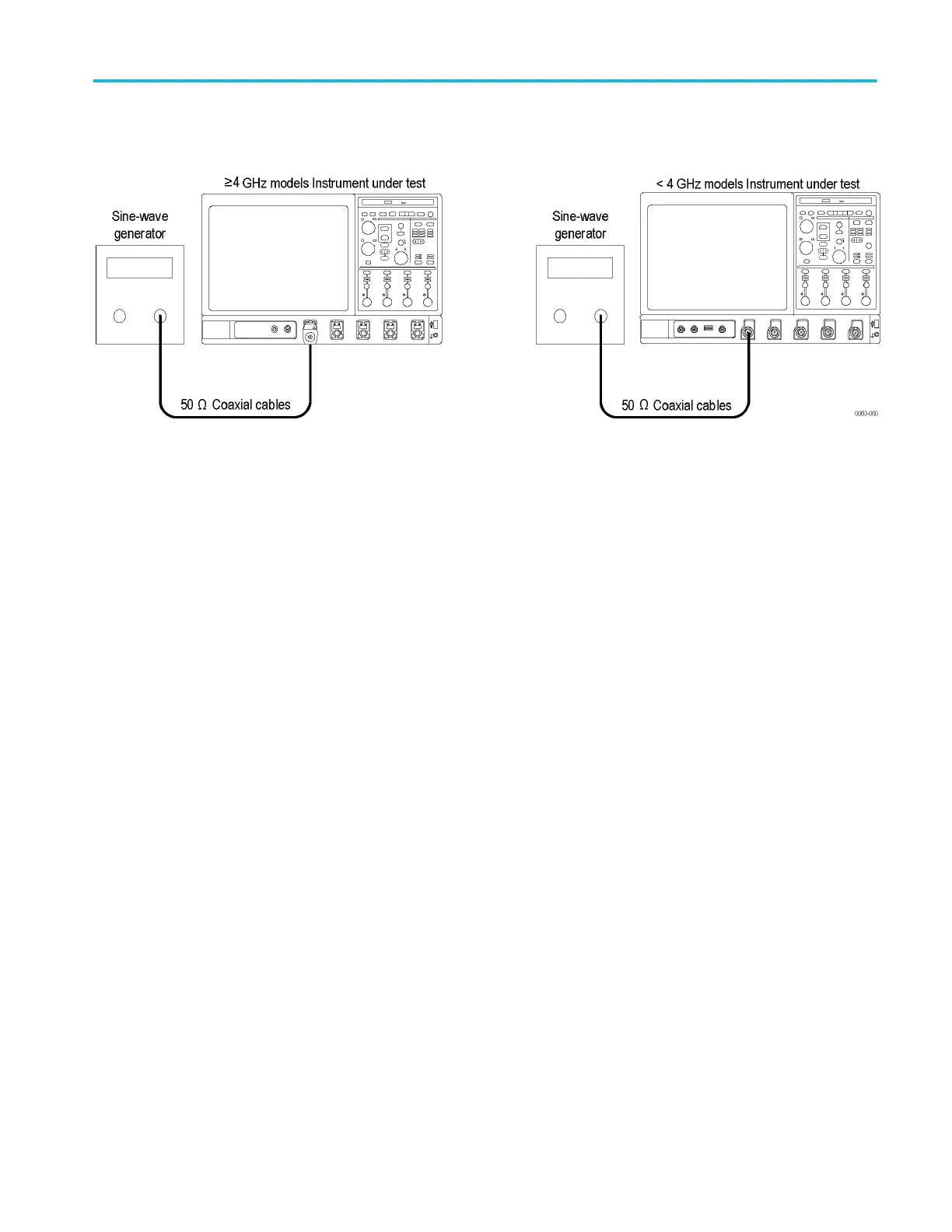

Figure 27: Timebase and delay time second test hookup
Performance verification (MSO/DPO70000C, MSO/DPO70000DX, and DPO7000C series)
MSO70000C/DX, DPO70000C/DX, DPO7000C, MSO5000/B, DPO5000/B Series 243
