Tektronix DPO70000C Series User Manual

Getting acquain
tedwithyourinstrument

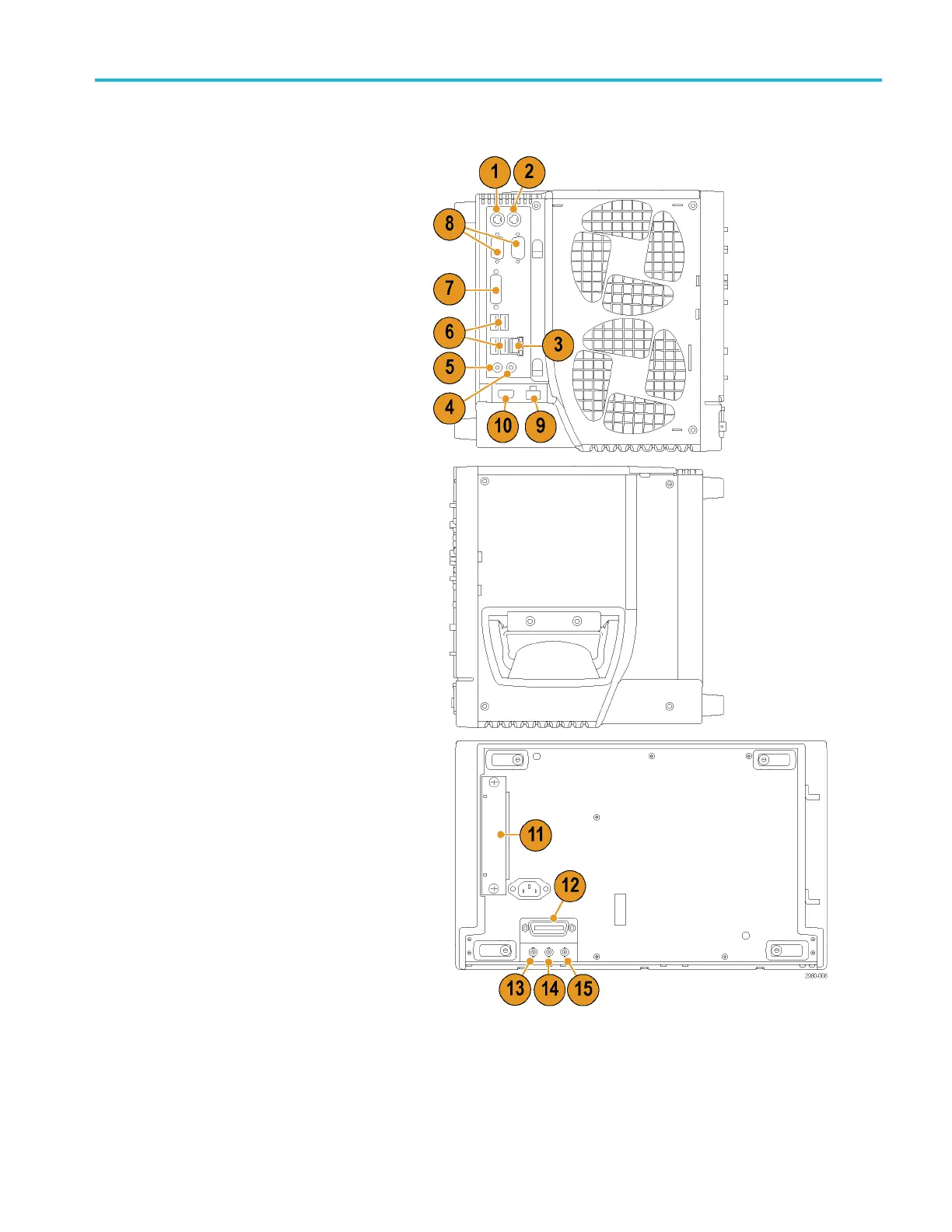

DPO7000C
1. PS-2 connecto
r for keyboard
2. PS-2 connecto
r for mouse
3. RJ-45 LAN conn
ector to connect to
network
4. Line Out connector for speaker
5. Mic connector for microphone
6. USB host ports
7. DVI-1 Video port
8. COM 1 and COM 2 serial ports
9. Printer connection
10. Oscilloscope Only XGA Out video port to
connect a monitor
11. Removable hard disk drive
12. GPIB port to connect to controller
13. Auxiliary output
14. Channel 3 output
15. External reference input
DPO
7000C Series
MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 21
