Getting acquain
ted with your instrument

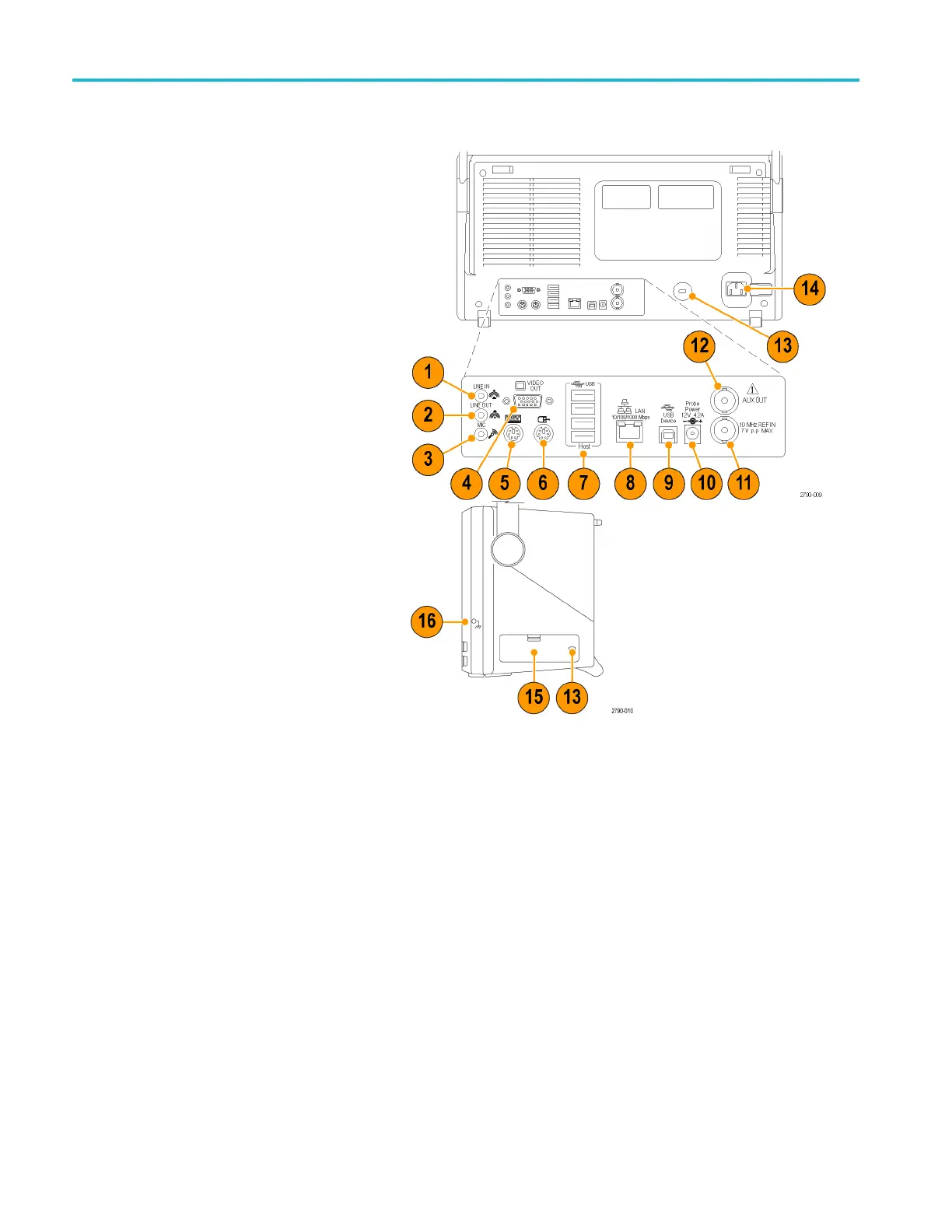

MSO5000B and DPO5000B
1. Line In connector
2. Line Out connector for speaker
3. Mic connector for microphone
4. Video port to connect a monitor
5. PS-2 connector for keyboard
6. PS-2 connector for mouse
7. USB host ports
8. RJ-45 LAN connector to connect to
network
9. USBDeviceport
10. P robe Power input, use 119-7465-xx
power supply
11. External reference input
12. A uxiliary output
13. S ecurity lock input
14. A C Power input
15. Re mo vable hard disk drive cover
16. G round connection
MSO5000B and DPO5000B Series
22 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
