What do you want to do next?

Learn about copying a results table.

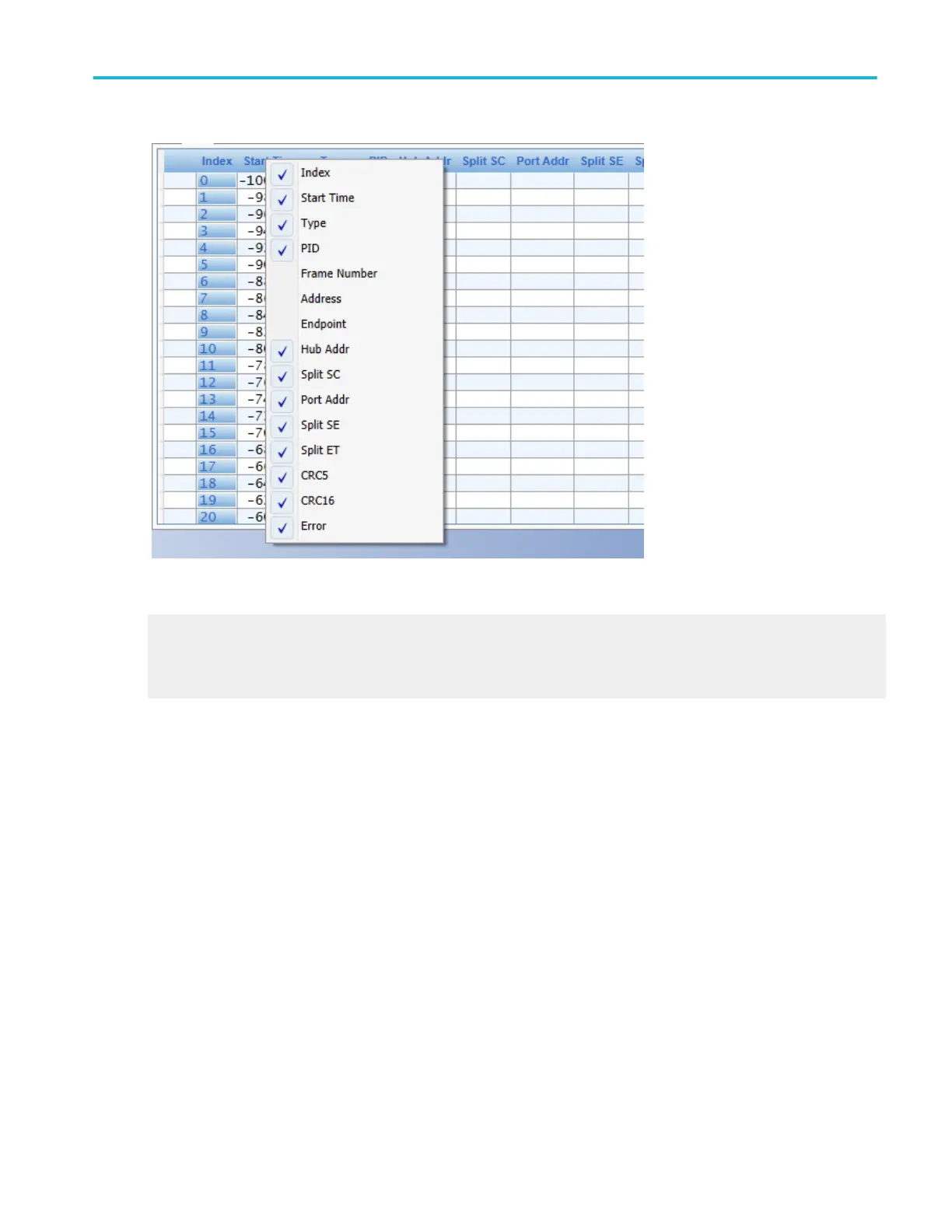

Learn about selecting the columns to Copy/Export.

Learn about saving a results table.

Copy the results table

From the Analyze menu, select Results Table. Click the Copy button to open the Select the columns to Copy/Export dialog box.

From the dialog box, click the Copy button.

To use

■

To save to a file, enter a Name or use the default file name. The file extension specified in the Save as type list will

automatically be appended to the file name.

Analyzing waveforms

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 367
