What do you want to do next?

Learn how to define a pattern for a bus.

Learn about bus setups.

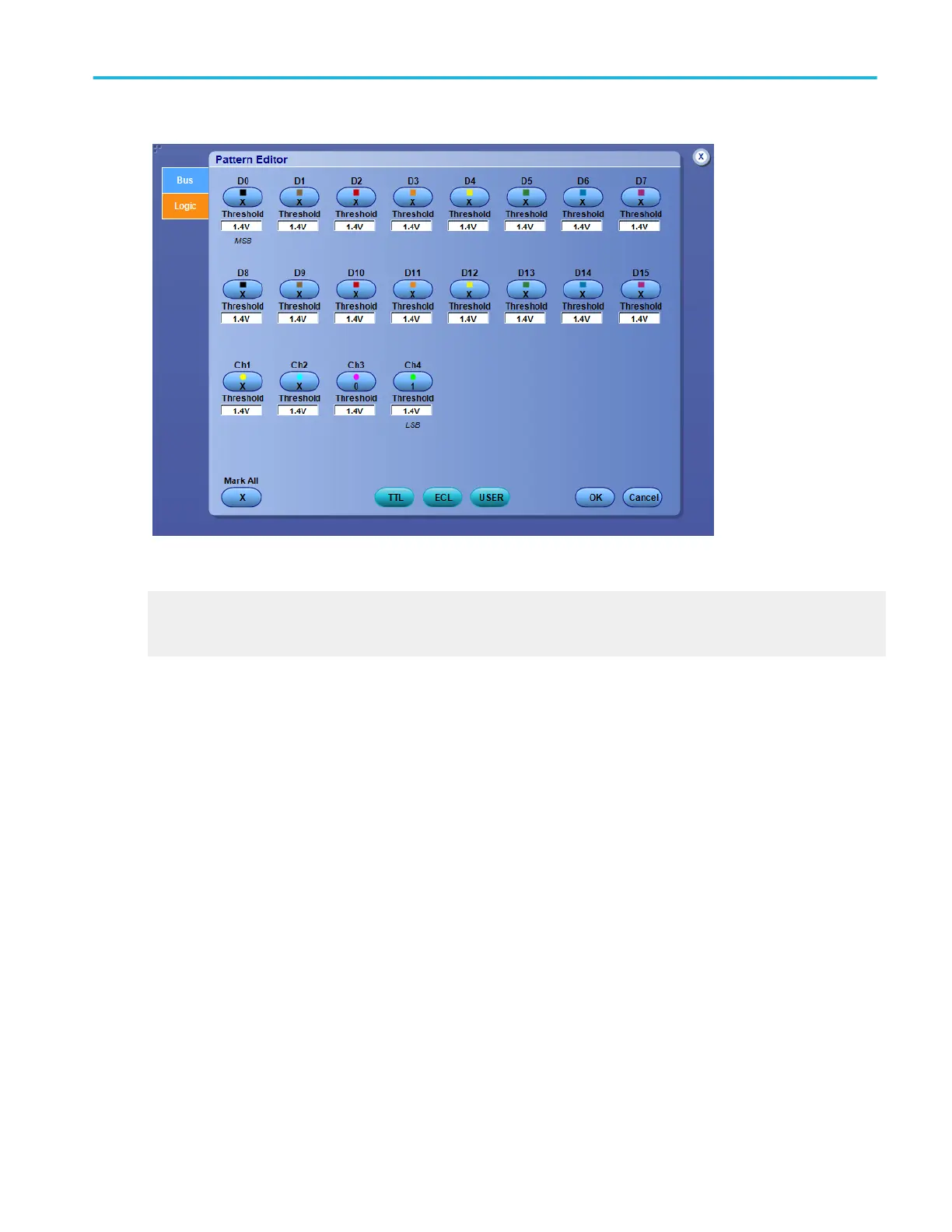

Bus pattern editor (Live tab)

Use the controls to set the bus trigger pattern of the channels the instrument uses as logic waveforms to detect a parallel or serial

bus value. Click a channel button to select the value for that channel: 0, 1, or X. For convenience, you can also change the

voltage reference level threshold values.
