Analyzing Wavef

orms

Use the following procedure to build an advanced spectral math expression.

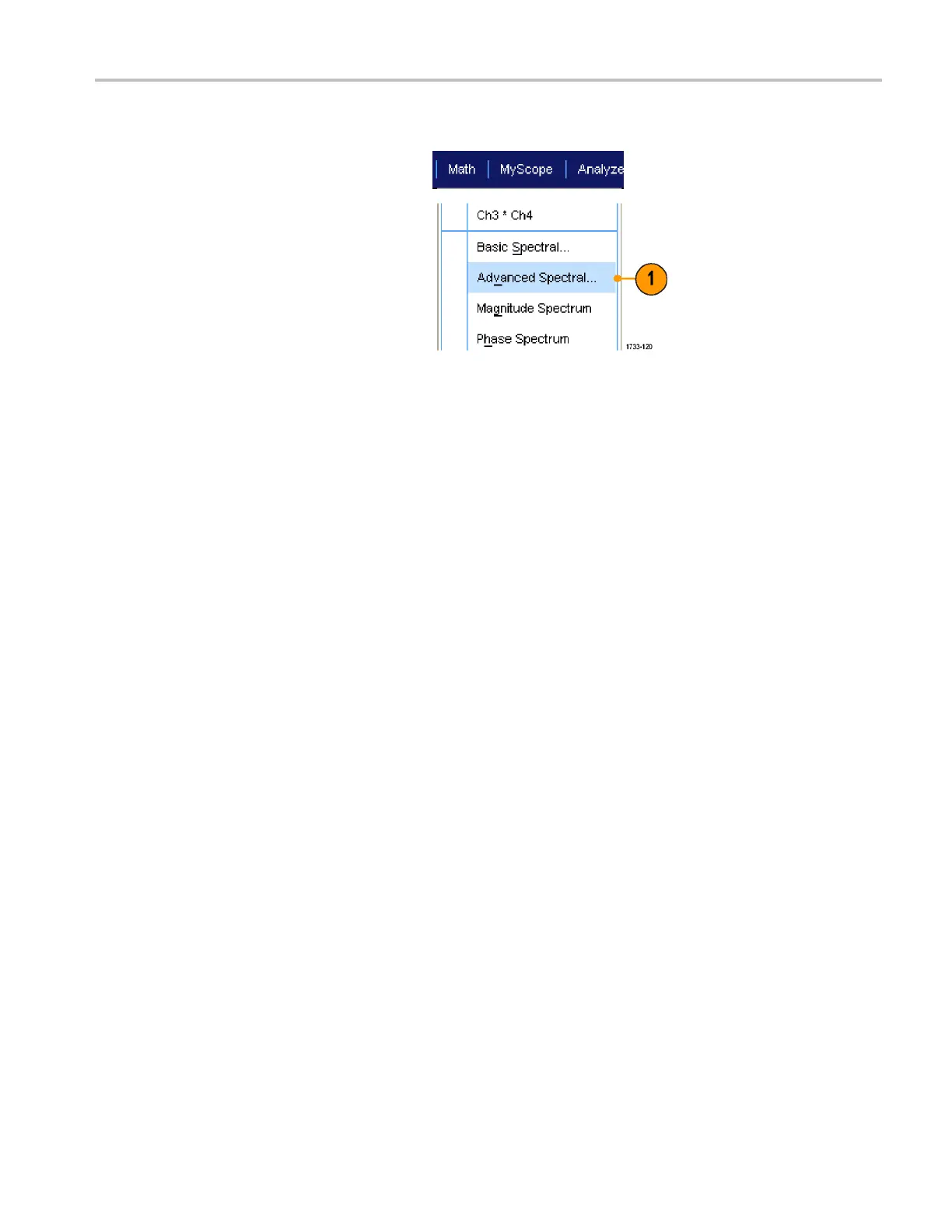

1. Select Math > Ad vanced Spectral....

MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 129
