Triggering on a Video Signal
The instrument supports triggering on NTSC, SECAM, PAL, and high definition signals.
To trigger on the video fields:
NOTE. The video trigger type is available only on DPO7000, MSO5000, and DPO5000 Series instruments.

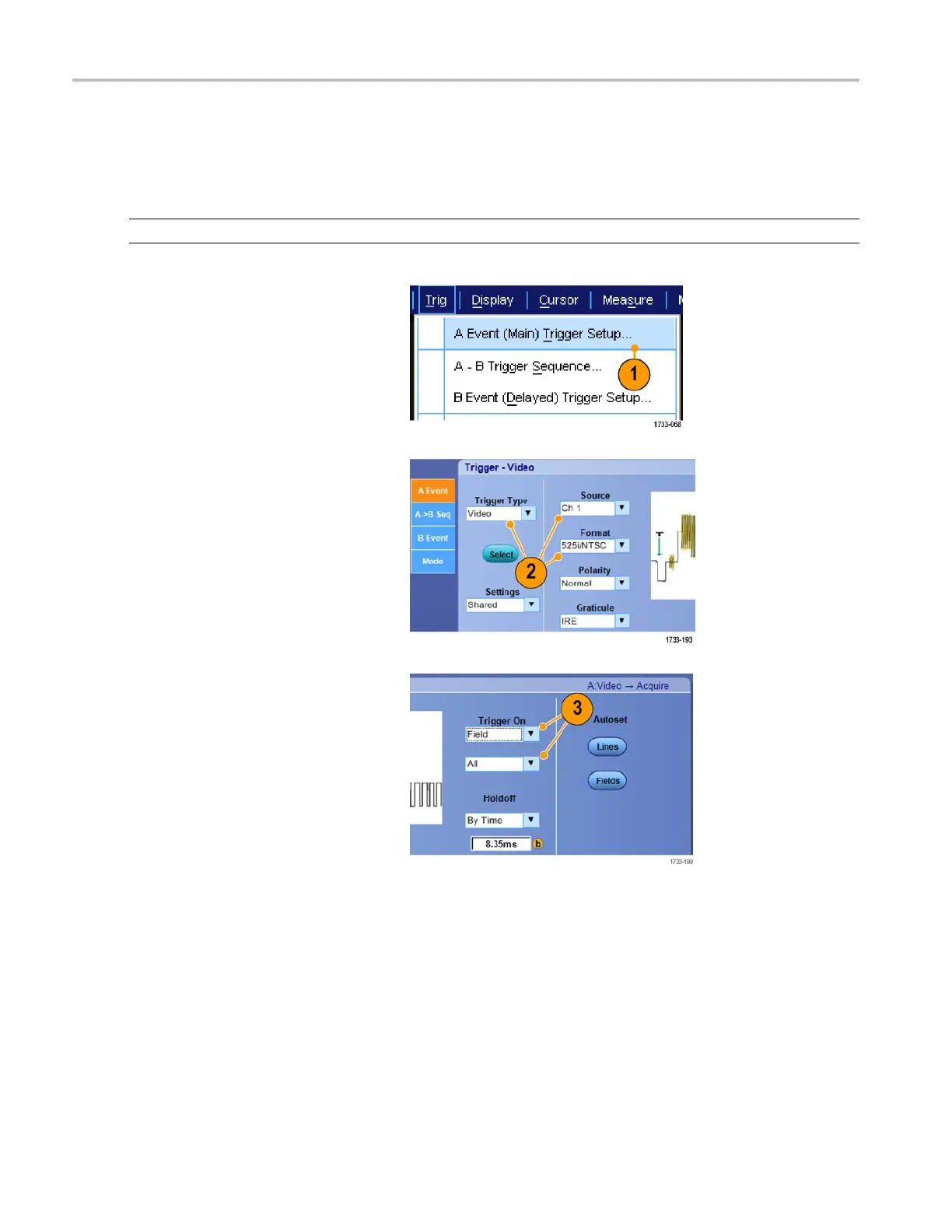

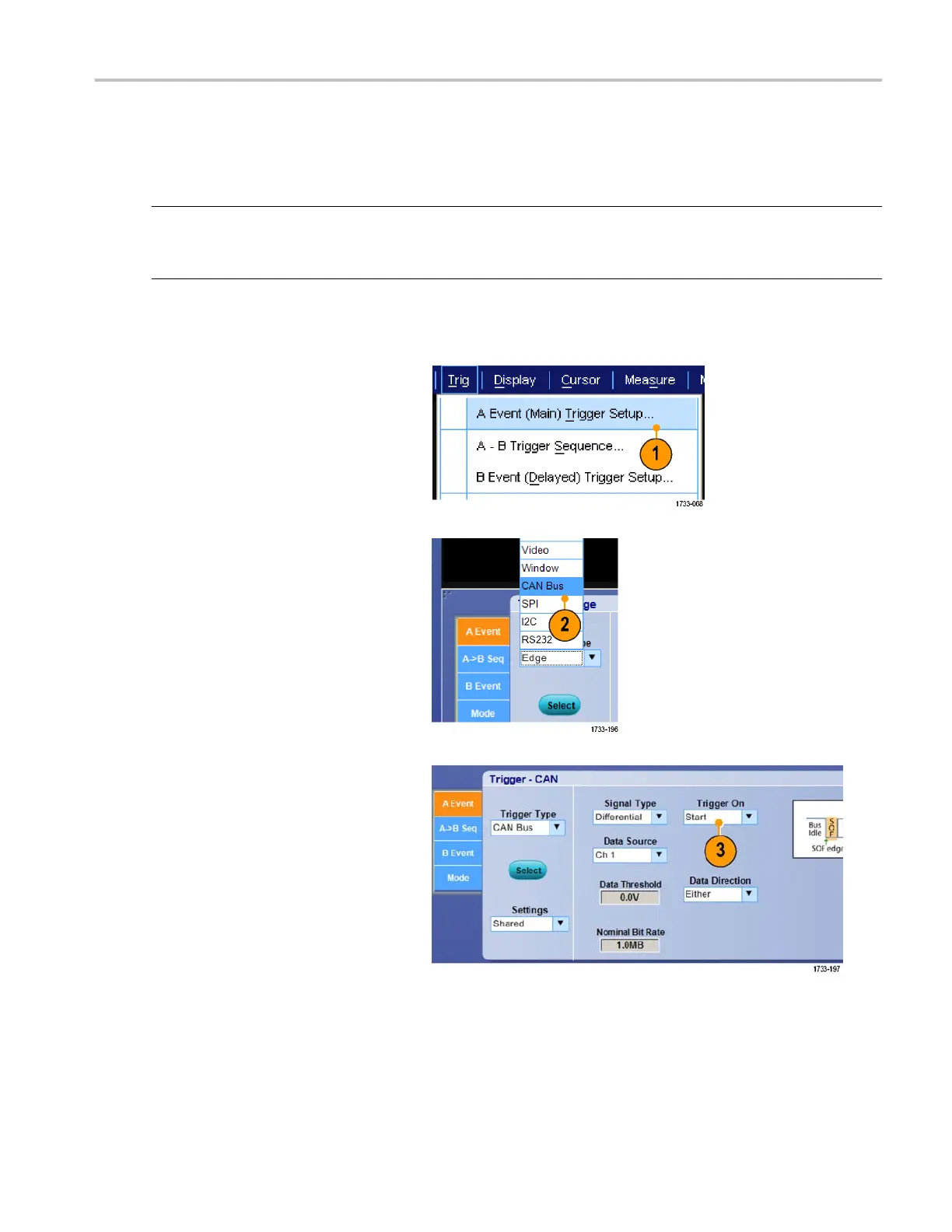

1. Select Trig > A Event (Main) Trigger
Setup....
2. Set the A trigger type and source in the
AEventta
b.
Select Format > 525i/NTSC .
3. Select Trigger On > Field.
Select Odd, Even,orAll fields.
