Acquisition

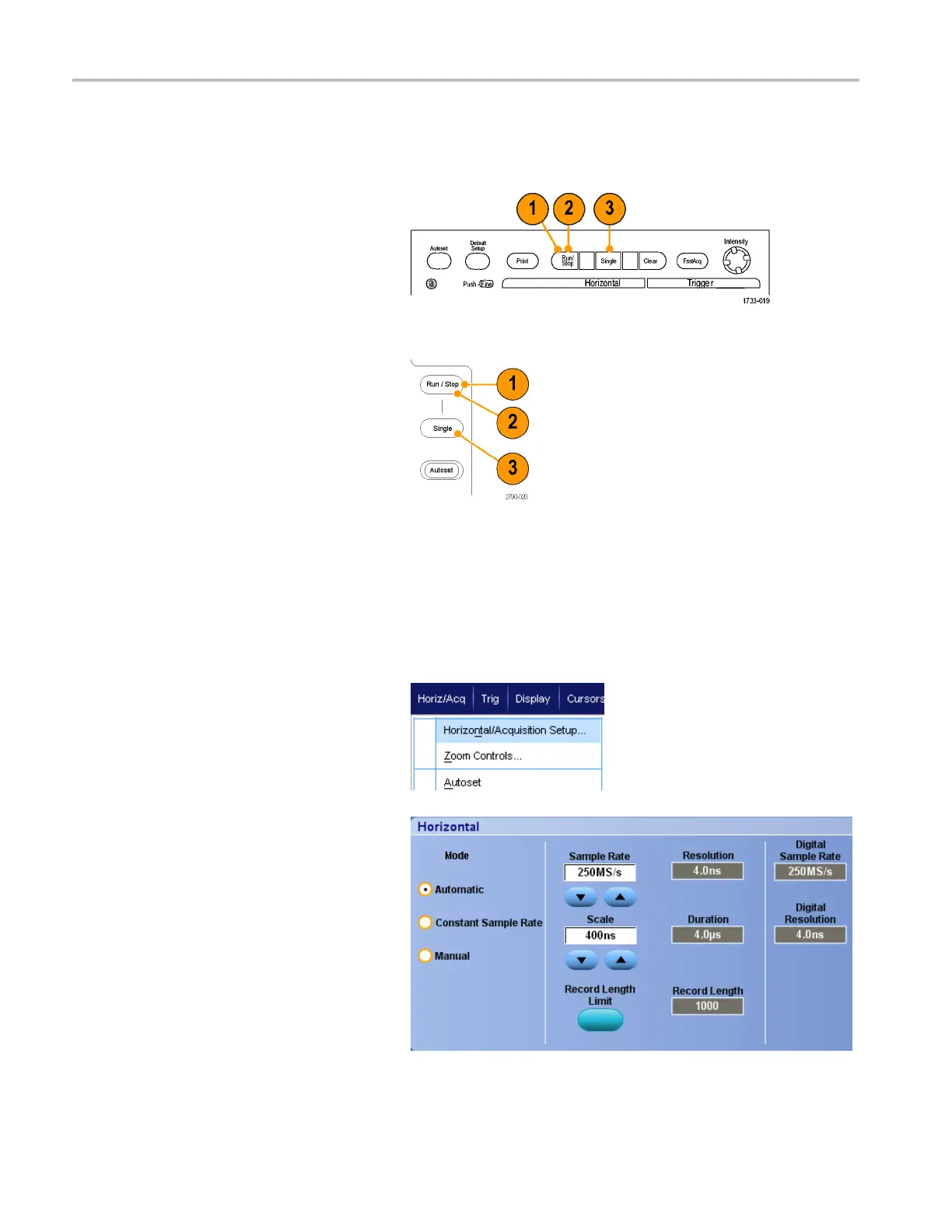

To set the Recor
d Length Limit, click Record
Length Limit and set the limit using the
buttons or keypad. The default maximum
limit depends
on your instrument model and
record length option.
In Constant Sample Rate mode you can
set the Sam
ple Rate and Scale. The
default sample rate ensures bandwidth filter
operation. Record length is a dependent
variable
. The maximum record length
depends on your instrument model and
record length option.
The front
-panel resolution knob changes the
sample rate in both automatic and constant
sample rate modes.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 41
