Analyzing Wavef
orms
SettingUpaHistogram
You can display either a vertical (voltage) or horizontal (time) histogram. Use histogram measurements to get statistical
measurement data for a section of a waveform along one axis.

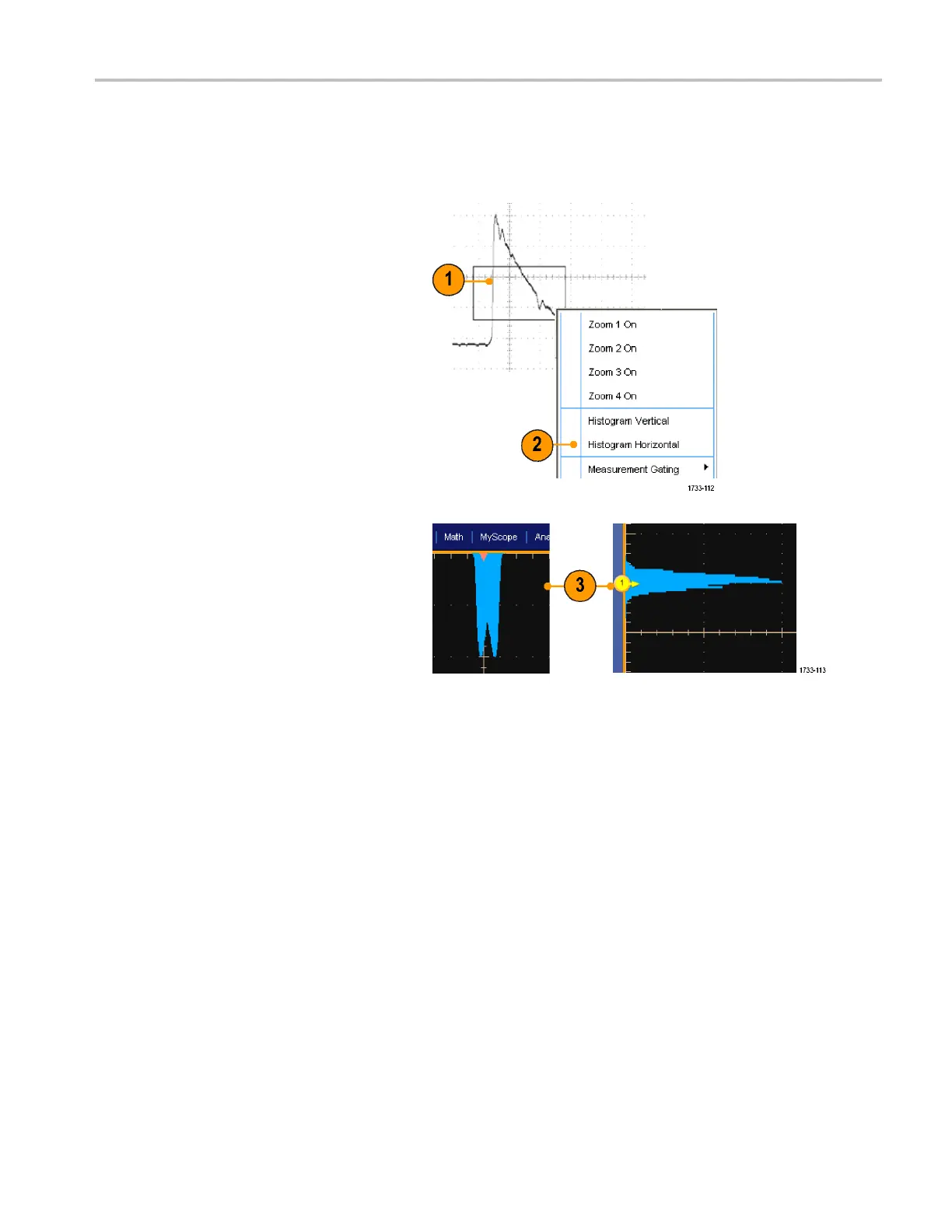

1. Click and drag the pointer across the
segment of the w aveform that you want
the histogram to cover. For example,
make the box for a horizontal histogram
wider than it is tall.
2. Select Histogram Vertical or Histog ram
Horizontal from the shortcut menu.
3. View the histogram at the top (for
horizontal histograms) or the left edge
(for vertical histograms) of the graticule.
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 91
