Install Your Ins

trument

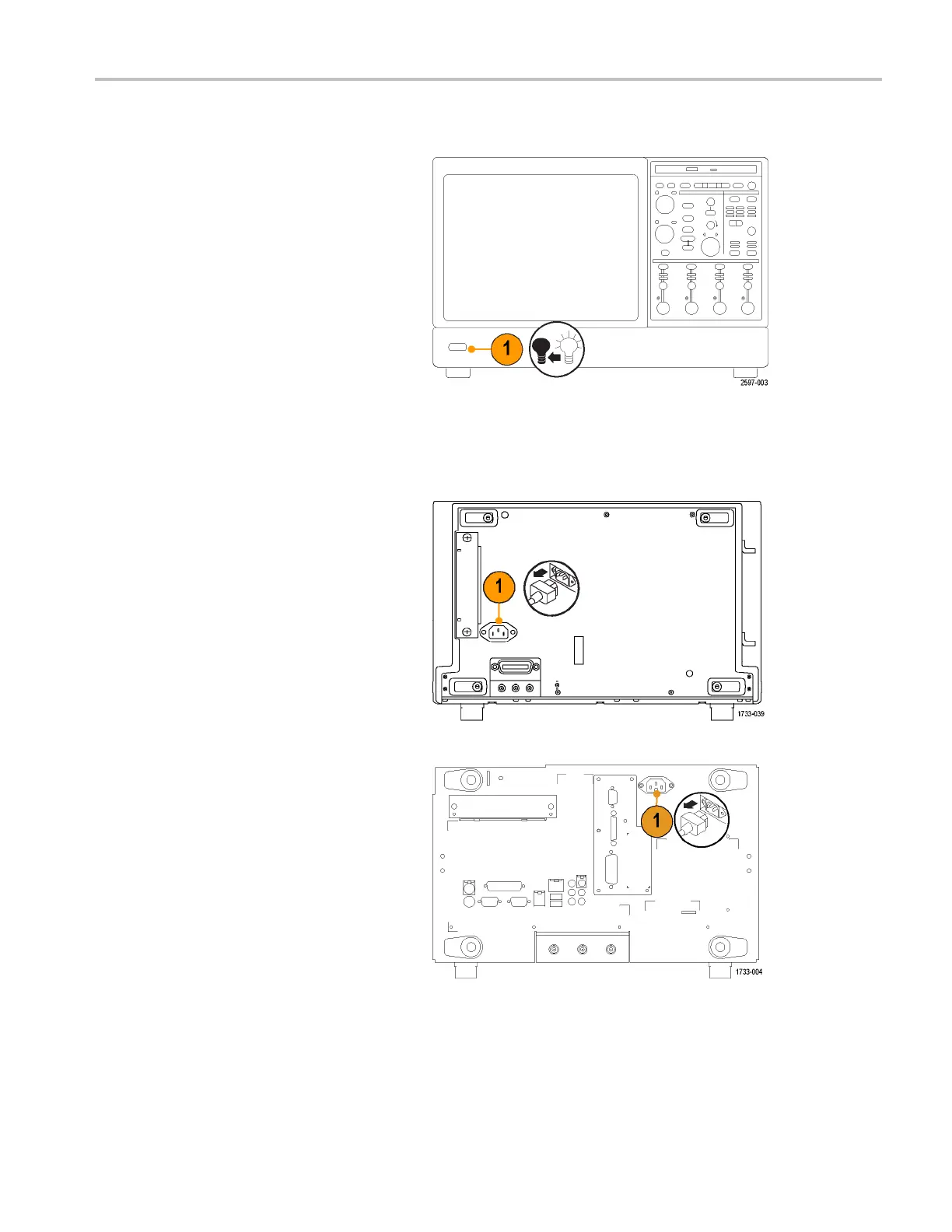

Powering Off the Instrument

Removing the Power

<4 GHz models

≥4GH

z models

DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 7
