MyScope

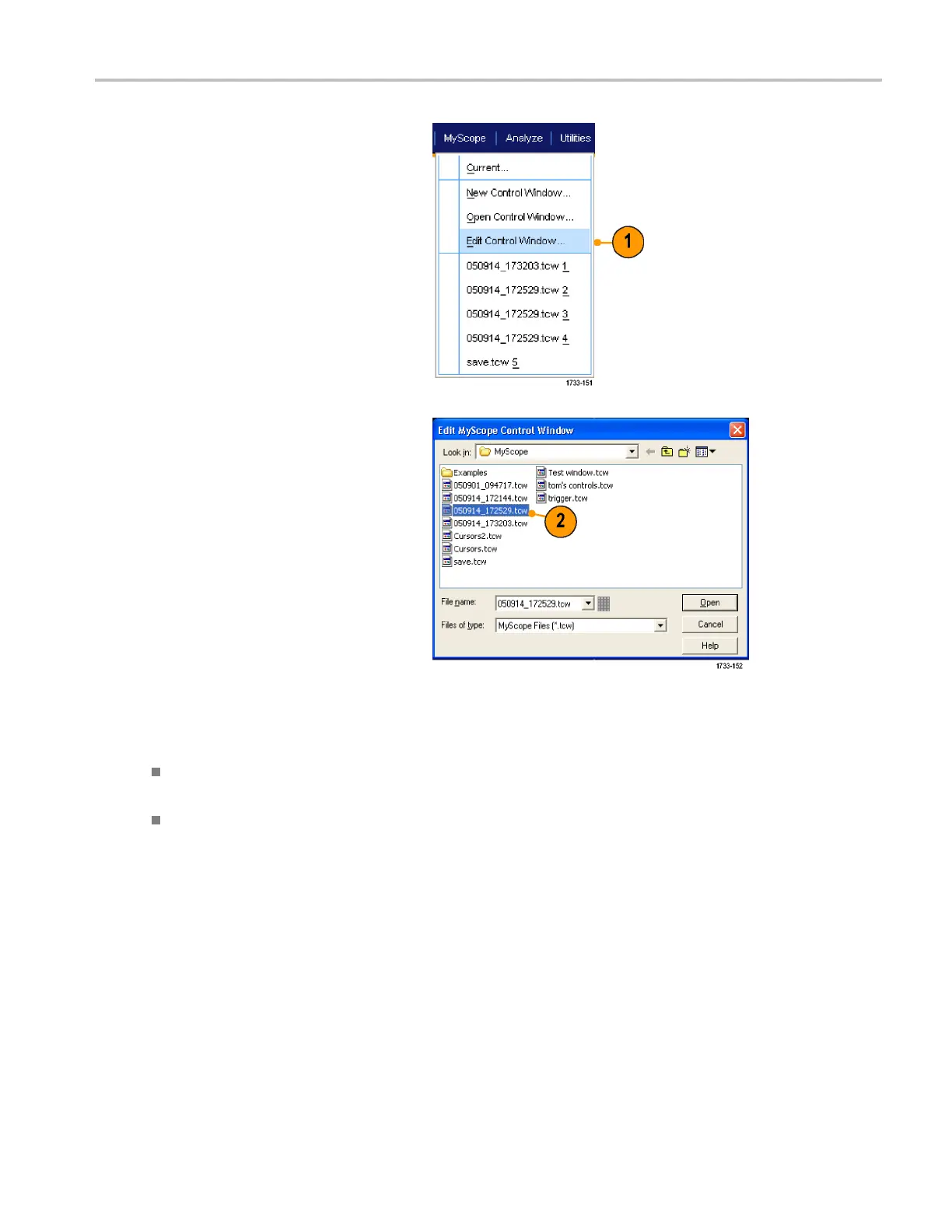

1.
Select
MyScope
>
Edit
Control
Window
...
.
2.
Select
the
control
window
you
want
to
edit,
and
then
click
Open
.
Quick
Tips
Some
controls
function
differently
in
a
MyScope
cont
rol
window
than
they
do
in
the
standard
control
window.
For
detai
ls,
see
the
online
help.
Yo
u
c
a
n
copy
MyScope
control
windows
(.tcw
fi
les)
to
other
DPO7000
and
DPO/DSA70000/B
Series
instruments.
DPO7000
S
eries
and
DP
O/DSA70000/B
Series
Quick
Start
User
Manual
109
128
130
Table of Contents
Table of Contents
7
General Safety Summary
11
Compliance Information
13
EMC Compliance
13
Safety Compliance
15
Environmental Considerations
17
Preface
18
Key Features
18
Documentation
19
Conventions Used in this Manual
20
Install Your Instrument
21
Standard Accessories
21
Operating Requirements
22
Preventing ESD
24
Powering on the Instrument
25
Powering off the Instrument
27
Removing the Power
27
Connecting to a Network
28
Adding a Second Monitor
29
Creating Operating System Restore CD-Roms
32
Getting Acquainted with Your Instrument
33
Front Panel
33
Side and Rear Panels
34
Interface and Display
36
Control Panel
38
Accessing Online Help
39
Accessing Menus and Control Windows
40
Inspect Your Instrument
41
Verify Internal Diagnostics Pass
41
Acquisition
43
Signal Path Compensation
43
Setting up Signal Input
45
Using Default Setup
46
Using Autoset
47
Probe Compensation, Calibration, and Deskew
48
Acquisition Concepts
48
How the Acquisition Modes Work
51
Changing the Acquisition Mode
52
Starting and Stopping an Acquisition
53
Selecting the Horizontal Mode
53
Using Fastacq
55
Using DSP Enhanced Bandwidth
56
Using Roll Mode
58
Using Fastframe Mode
59
Using Fastframe Frame Finder
62
Using Teklink and Multiscope Trigger
63
Pinpoint Triggers
67
Triggering Concepts
67
Choosing a Trigger Type
69
Pinpoint Trigger Selections
70
Checking Trigger Status
72
Using a (Main) and B (Delayed) Triggers
73
Sending E-Mail on Trigger
76
Using Horizontal Delay
77
Display a Waveform
78
Setting the Display Style
78
Setting the Display Persistence
79
Setting the Display Format
80
Selecting the Waveform Interpolation
81
Adding Screen Text
81
Setting the Graticule Style
83
Setting the Trigger Level Marker
84
Displaying the Date and Time
84
Using the Color Palettes
85
Setting the Reference Colors
86
Setting Math Colors
86
Using Multiview Zoom
86
Zooming in Multiple Areas
88
Lock and Scroll Zoomed Waveforms
89
Hide Waveforms in the Zoomed Window
91
Searching and Marking Waveforms
92
Analyzing Waveforms
100
Taking Automatic Measurements
100
Automated Measurement Selections
102
Customizing an Automatic Measurement
104
Taking Cursor Measurements
108
Setting up a Histogram
111
Using Math Waveforms
112
Using Spectral Analysis
115
Using Mask Testing
118
Using Limit Testing
122
Myscope
124
Creating a New Myscope Control Window
124
Using Myscope Control Windows
128
Saving and Recalling Information
130
Saving Screen Captures
130
Saving Waveforms
131
Recalling Waveforms
133
Saving Instrument Setups
134
Recalling Instrument Setups
135
Saving Measurements
136
Copying Your Results to the Clipboard
137
Printing a Hard Copy
139
Run Application Software
141
Application Examples
143
Capturing Intermittent Anomalies
143
Using the Extended Desktop and Openchoice Architecture for Efficient Documentation
146
Triggering on Buses
148
Triggering on a Video Signal
149
Setting up E-Mail on Event
151
Correlating Data between a Tektronix Oscilloscope and Logic Analyzer
153
Verifying Performance Using Limit Test
154
Cleaning
157
