Display a Wavefo
rm

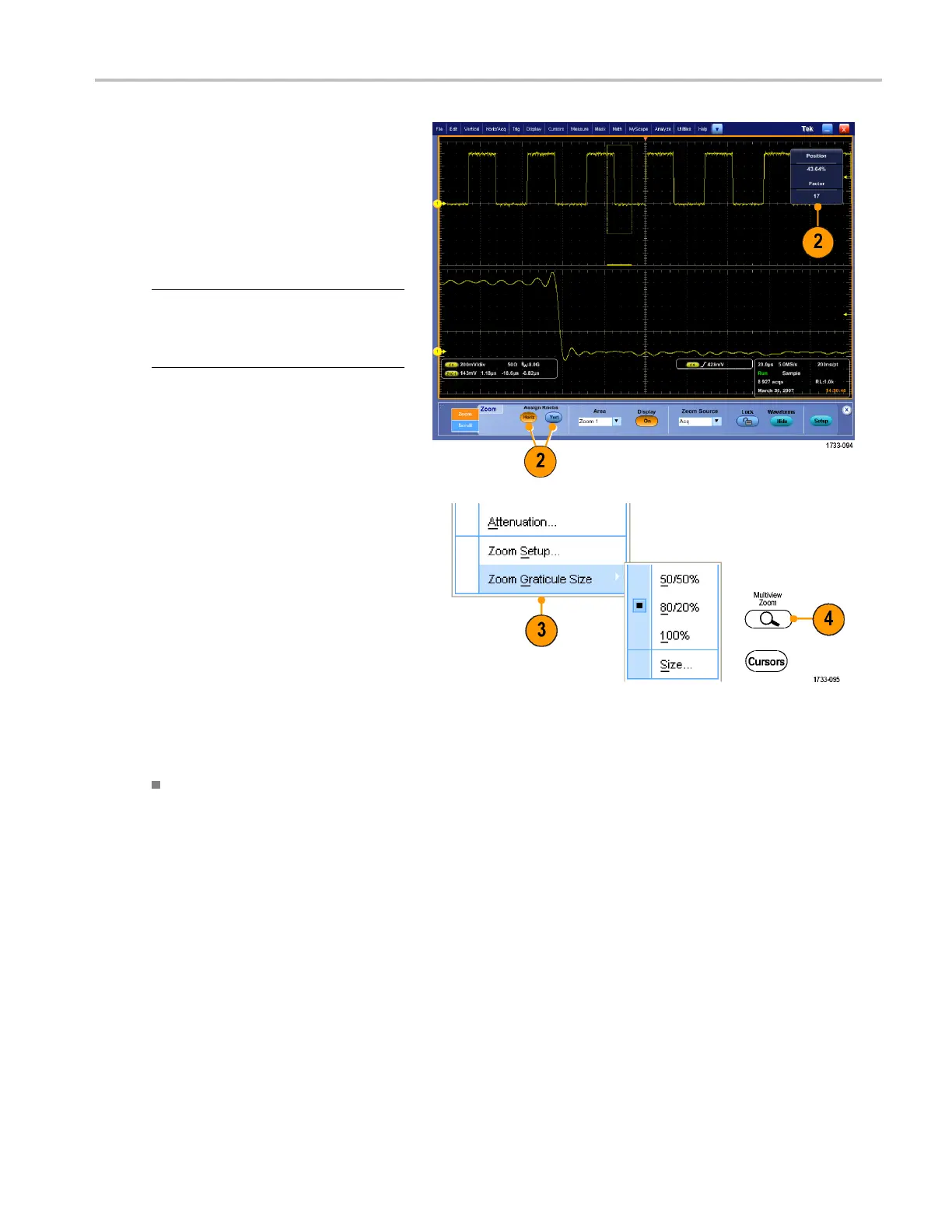

2. Push HORIZ or VERT to select which
axis to magnify in the zoom graticule.
Use the multip
urpose knobs to adjust
scale and position of the magnified
waveform.
In this examp
le the main graticule is
the top half of the graticule and the
zoomed graticule is the bottom half of
the graticul
e.
NOTE. You can hide or display zoomed
waveforms by pressing Waveforms Hid e and
then checki
ng which zoomed waveforms to
display.
3. To adjust the zoom graticule size, select
Zoom Graticule Size from either the
Vertical or Horiz/Acq menus.
4. To turn zoom off, push the front-panel
button.
Quick Tips
You can also use the Zoom Setup menu to change the graticule size of the zoomed waveform.
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 67
