Appendix C
Appendix C
TPP0500 and TPP1000 500 MHz and 1 GHz 10X passive probes instructions
071-2809-xx
Copyright © Tektronix, Inc. All rights reserved.
Operating information
The TPP0500B & TPP1000 10X Passive Probes are compact passive probes with 10X attenuation that are designed for use
with Tektronix MSO/DPO4000B & 5000B Series oscilloscopes.
The probes have no user- or Tektronix-serviceable parts.
Connecti
ng the probe to the oscilloscope

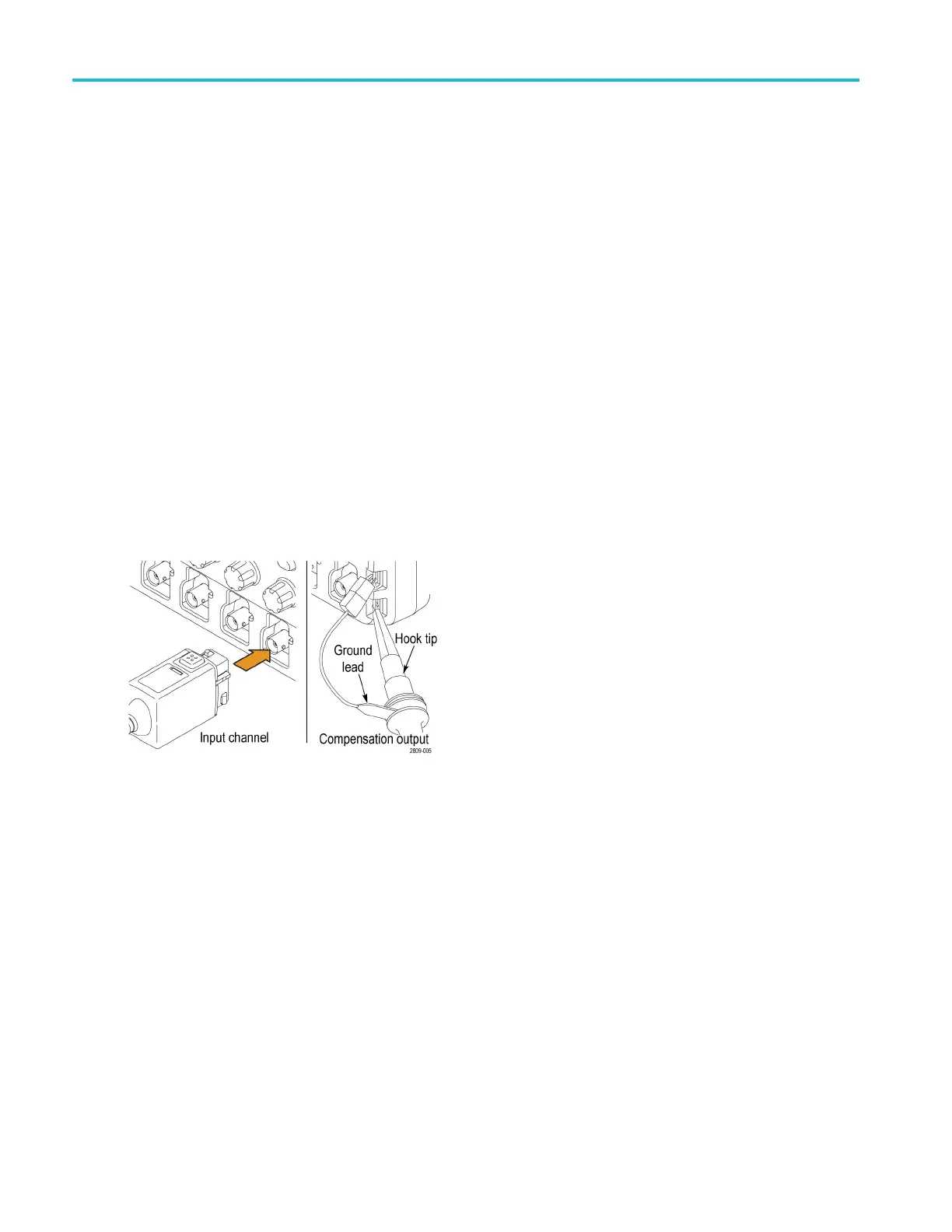

Connect the probe as shown in the illustrations below.
180 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
