Inspect your ins

trument

Inspect your instrument

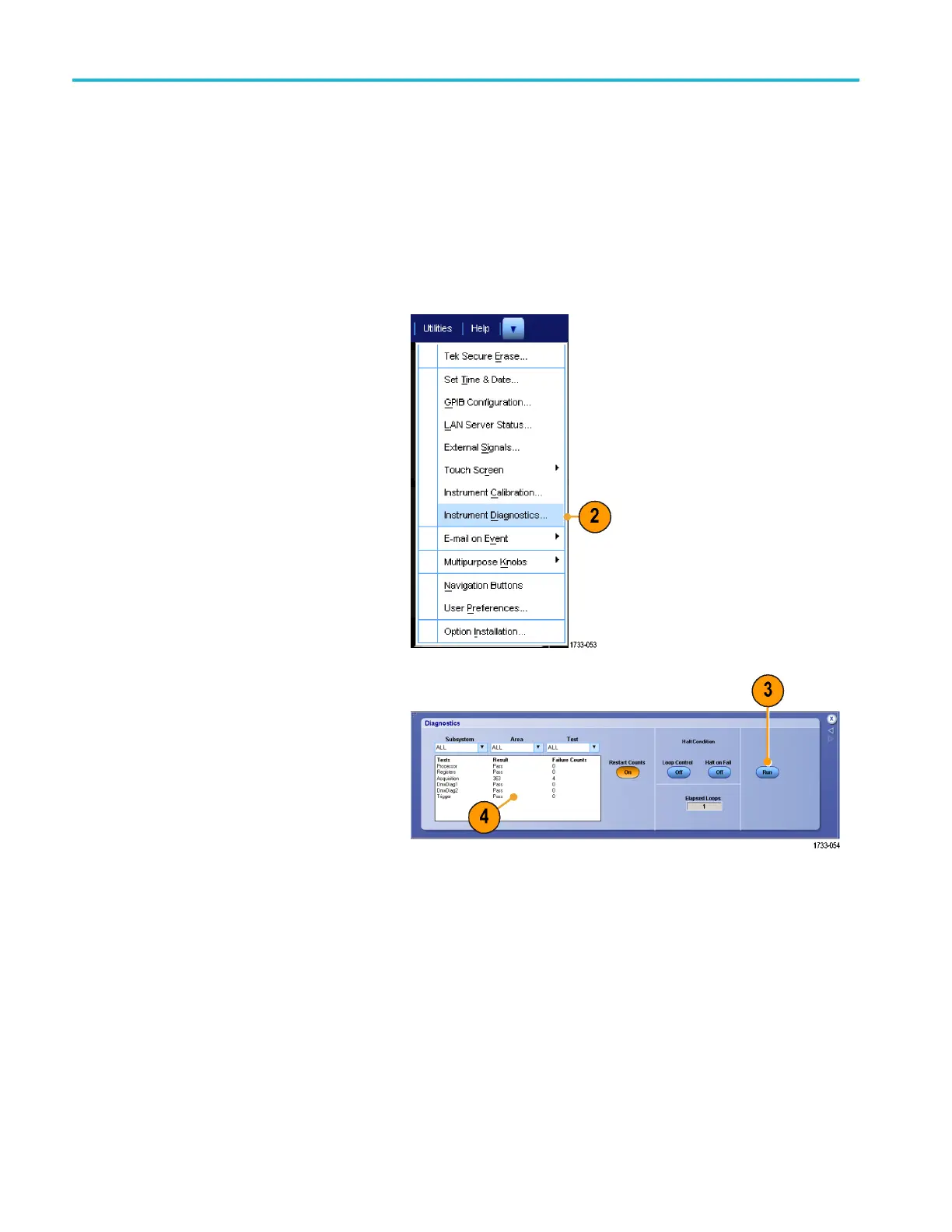

Use the following procedures to verify the functionality of your instrument.

Verify internal diagnostics p ass

1. Power on the instrument.

2. Select Instrum ent Diagnostics....

3. Click Ru

n. The test results appear in the

diagnostics control window.

4. Verify that all tests pass. If diagnostic

failures occur, contact your local

Tektro

nix service personnel.

30 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
